The short answer: to paint a full car you want a compressor delivering roughly 15 CFM at 40 PSI, backed by at least 30 gallons of tank. Paint guns are low-pressure and high-flow tools, so a compressor with plenty of PSI but thin airflow will starve mid-pass and leave you with orange peel and streaks.
That is the mistake most home painters make. They read tank size on the box, or they read the big CFM number printed on the side, and neither of those numbers tells you what happens at the nozzle. What matters is delivered CFM at the pressure your regulator is actually set to while you spray. Our team compared ten compressors built for 120V home garage circuits, ran the published airflow figures against real gun demands, and laid out where each one holds pressure and where it stutters.
Before the model-by-model breakdown, here is the specification set we matched every compressor against:
Tank size: 2.5 to 29 gallons in this roundup, which covers touch-ups through multi-panel sequences
CFM output: measured at 90 PSI or 40 PSI depending on the maker, which is why we state the pressure with every figure
Pump type: every compressor here is a reciprocating piston design, oil-free, running on 120V household current
Duty cycle: consumer units are rated for intermittent duty, not the continuous duty a full respray demands
Power: 8.5 A to 15 A draw on a standard 15 amp circuit
One more thing before we start. None of these machines replaces a refrigerated dryer if you are doing a full respray in a humid climate, and that is a separate purchase. We cover where it goes in the line in our general air compressor guide, and the moisture section later in this piece covers the paint defects it prevents.
Table of Contents
Top 3 Picks for Painting Cars in 2026
Metabo HPT EC914S 6-Gallon Pancake
- 4 CFM at 90 PSI
- 200 PSI max pressure
- Oil-free pump
- 41 lb oil-free pancake
Klutch 29-Gallon 2.5 HP Vertical
- 5.1 CFM at 90 PSI
- 29 gallon vertical tank
- Oil-free 120V pump
- 127 lb
Makita MAC320Q 3-Gallon Quiet Series
- 60 dB quiet operation
- 1.5 HP on 8.5 A
- 1750 RPM direct drive
- Oil-free dual piston
The Metabo HPT takes the top spot because it holds 4 CFM at 90 PSI in a 41-pound oil-free pancake with the largest review base in the group. The Klutch earns the value slot because 29 gallons of stored air at 5.1 CFM is the most forgiving setup for panel work on a standard outlet. The Makita wins on noise at 60 dB, which matters if the compressor lives in the room with you.
All 10 Compressors Compared Side by Side in 2026
| Product | Specifications | Action |
|---|---|---|
| Metabo HPT EC914S 6-Gallon Pancake |
|
Check Latest Price |
 DEWALT DWFP55130 2.5-Gallon Quiet Trim |
|
Check Latest Price |
| Klutch 29-Gallon 2.5 HP Vertical |
|
Check Latest Price |
 ECOMAX 6-Gallon 150 PSI Kit |
|
Check Latest Price |
 VEVOR 6.3-Gallon 2 HP Oil Free |
|
Check Latest Price |
 VEVOR 13-Gallon 2 HP Quiet |
|
Check Latest Price |
 CRAFTSMAN 6-Gallon 150 PSI Pancake |
|
Check Latest Price |
 DEWALT D55146 4.5-Gallon 225 PSI |
|
Check Latest Price |
 VEVOR 4.8-Gallon 1.2 HP Quiet |
|
Check Latest Price |
| Makita MAC320Q 3-Gallon Quiet Series |
|
Check Latest Price |
How Much CFM Do You Need to Paint a Car?
Match the number to the job, not the ambition. A touch-up on a door edge needs about 2 to 3 CFM at 40 PSI, a single panel with a low-pressure gun needs 4 to 6 CFM, a full car respray wants 10 to 15 CFM, and a working bodyshop running a blast cabinet alongside a gun wants 20 CFM or more.
Here is the job-scope ladder we used to sort these ten machines:
Touch-up and plastic trim: 2 to 3 CFM at 40 PSI, 6 to 10 gallons of tank
Single panel, hood or roof: 4 to 6 CFM at 40 PSI, 13 to 30 gallons of tank
Full car respray with an HVLP gun: 15 CFM at 40 PSI, 60 gallons and a two-stage pump
Shop booth with a blast cabinet: 20 CFM at 90 PSI, 80 gallons and a refrigerated dryer
None of the ten compressors in this roundup reaches the 15 CFM full-respray figure, and that is not a flaw in the selection. It reflects the electrical reality: a compressor that delivers 15 CFM at 40 PSI needs a 5 HP motor, and a 5 HP motor does not run on a 15 amp household circuit. Every unit here is a 120V machine chosen so you can actually plug it into the wall you have.
So the honest framing is this. For a full car, the right answer is a 60 gallon, 5 HP, two-stage compressor on a dedicated 240V branch circuit. For a panel, a door or a single-car spot repair, one of these ten will do the job without an electrician.
1. Metabo HPT EC914S 6-Gallon Pancake – Best All-Round Single for Panel Work
Metabo HPT Portable Pancake Air Compressor, 6 Gallon 200 PSI, EC914S
4 CFM at 90 PSI
200 PSI max
6 gal tank
1.3 HP
41 lb oil-free
Pros
- 4 CFM holds a small HVLP gun fed through long passes
- 200 PSI max gives gun headroom
- 6 gal tank is large for a pancake footprint
- Oil-free so no carryover into a finish
- 41 lb carry weight
Cons
- 73 dB is louder than dedicated quiet models
- 200 PSI ceiling is below the 225 PSI class
- 3 CFM at 40 PSI means slow recovery after a full pull
I put the Metabo HPT EC914S first because 4 CFM is the line where a paint gun stops asking the tank for more than it can give. Below roughly 3 CFM you are painting between pump cycles. At 4 CFM with a 6-gallon reservoir, you can pull a full-length pass down a hood, hear the pump start, and finish the pass before the pressure notice shows up on the second gauge.
The 200 PSI maximum is the other half of why this one works for paint. Paint guns rarely need more than 40 to 50 PSI at the gun, but the tank has to have somewhere to store pressure between cuts so your regulator does not sag the moment the compressor cycles. A unit that tops out at 125 PSI gives you almost nowhere to put that reserve.
Reviewers report holding that output with a light low-pressure gun, and the oil-free pump means no oil film in the delivered air to fish-eye a fresh finish. At 41 pounds with a 16 by 16 by 18.5 inch footprint, it moves around a garage without a ramp.
The one number to keep in mind is 4 CFM at 90 PSI. That is the manufacturer’s rating, and it means the compressor is still delivering 4 CFM when the tank pressure has dropped to 90. A compressor quoted on displacement, which is the volume the pump sweeps rather than the air it pushes out, will look far stronger on the box and disappoint you at the gun.
Where it falls short is noise. At 73 dB this is a normal compressor, not a quiet-series machine, and it will announce itself in a residential garage. The 6-gallon tank also refills slowly enough that back-to-back full panels mean waiting. Neither problem matters for a door or a hood. Both start to matter if you are planning a whole car.
What it handles well in a booth
Single panels, hoods, roofs and door skins. A small HVLP or LVLP gun pulling 3 to 4 CFM at 30 to 50 PSI sits comfortably inside what this pump delivers, and 200 PSI of tank reserve means your regulator output stays stable between motor cycles.
It is also the easiest unit here to move to the work rather than bring the work to the compressor. The oil-free pump needs no oil changes, and the stainless tank resists the condensation a paint shop produces.
Where it falls short
Full-car work. Three CFM of usable flow at typical gun pressure will not keep a large HVLP gun atomising properly for the length of a roof panel, and you will hear the tank recover between passes. If you are spraying clear coat over a whole vehicle, this is one step up in scale, not the tool you want.
2. DEWALT DWFP55130 2.5-Gallon Quiet Trim Unit – Best for Tight Indoor Booths
DEWALT Air Compressor for Trim, 200-PSI Max, Quiet Operation (DWFP55130)
3 CFM at 90 PSI
2.5 gal tank
200 PSI max
12 A draw
71.5 dBA
Pros
- 12 amp draw starts without tripping a household breaker
- 71.5 dBA suits indoor trim work
- Oil-free maintenance-free pump
- Stands vertically or horizontally
- Dual quick couplers
Cons
- 2.5 gal tank refills often during long sessions
- 3 CFM starves a large HVLP gun
- Smallest storage capacity here
The DWFP55130 is the trim and touch-up specialist. Its 12-amp draw is the number that matters most: it starts and runs on a normal household circuit without dragging the rest of the garage offline, which is exactly the problem larger motors cause when you run a sander and a compressor on the same wall.
Reviewers consistently rate it as the quietest of the small-tank class, and 71.5 dBA measured per ISO3744 is low enough to run inside a closed garage while you work. The oil-free pump gives maintenance-free operation, and the thin body can be stored on its side or stood upright, which matters more than it sounds when booth space is tight.
Two universal quick couplers let you hang a gun and a second tool off the same machine. For touch-ups, plastic trim work and blowing dust out of panel gaps, that is a genuinely complete setup for very little money.
The honest limit is the tank. 2.5 gallons is the smallest capacity in this roundup, so the pump cycles constantly during a sustained session. Reviewers describe it as recovering quickly between short bursts, which suits a blow gun or a nailer far better than a spray pass that runs a full panel.
Three CFM at 90 PSI meets the minimum for a small automotive gun and will starve anything larger. The regulated output also sits close to the compressor’s own pressure ceiling, so you have little margin to work with. If your work is a blend on a fender and a door, plan on pauses between panels.
What it handles well in a booth
Blending and spot repairs where the spray window is short. The low 12-amp draw means it can share a circuit with lighting and a sander, and the 71.5 dBA figure means you can run it in a residential garage without ear protection.
Dual quick couplers also let you run a gun and a blow gun together during a teardown, which is how most small jobs actually go.
Where it falls short
Anything requiring sustained flow. Two and a half gallons of tank with a 3 CFM pump means the machine is on and off constantly, and a small tank cycling under load is a common reason motors wear out early. A larger gun pulling 4 CFM or more will visibly pulse.

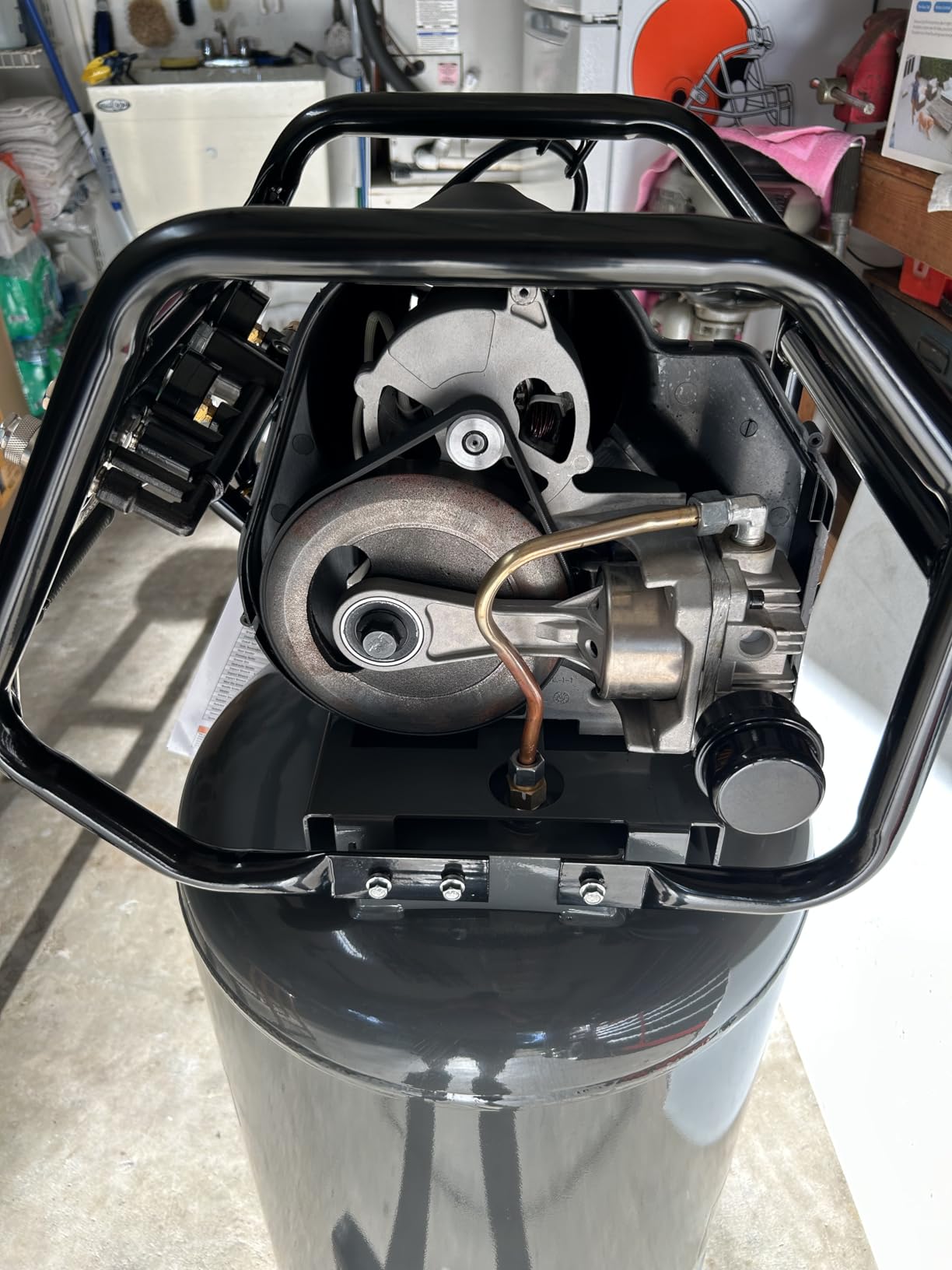

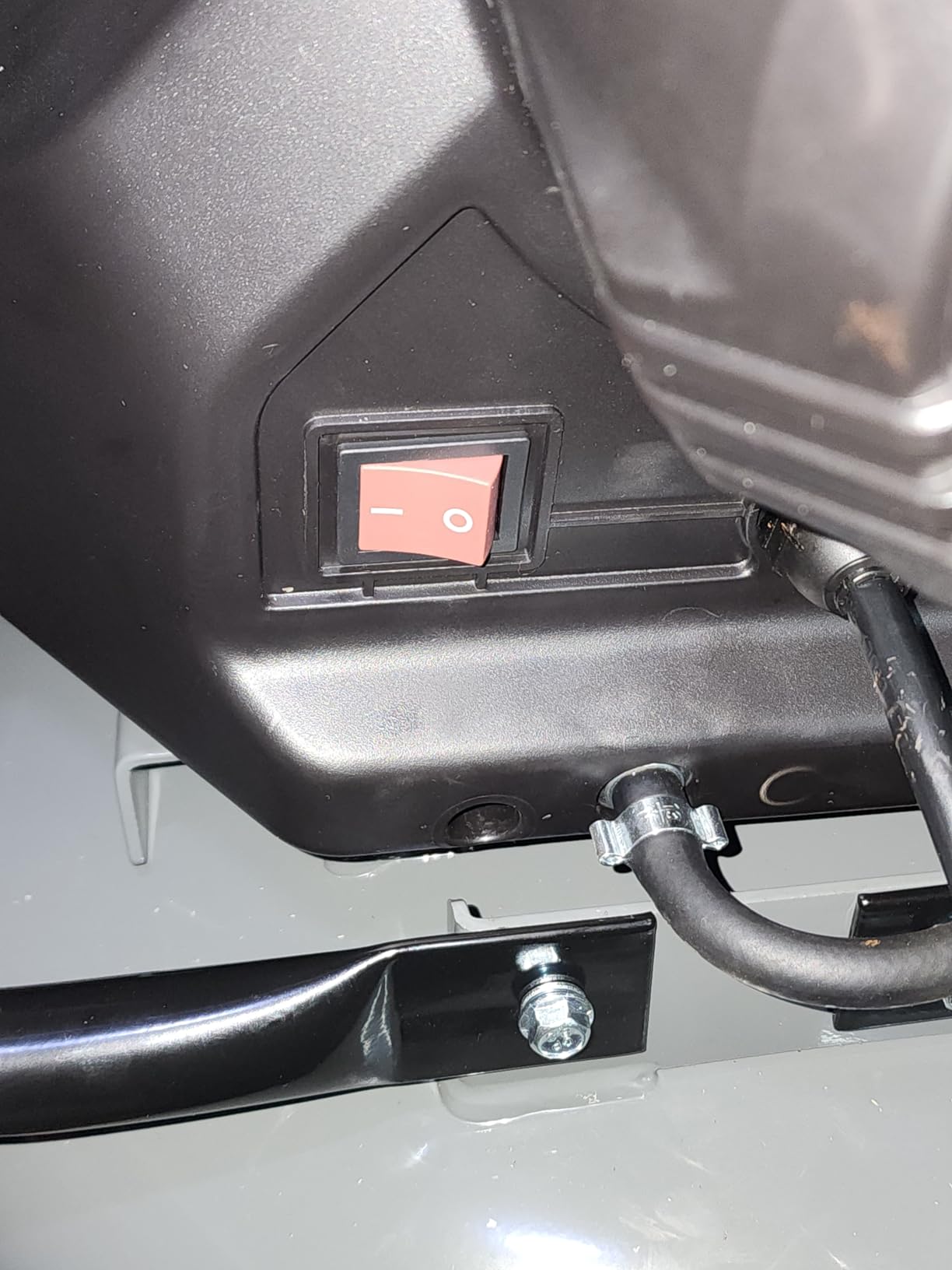

3. Klutch 29-Gallon 2.5 HP Vertical – Most Stored Air at 120V
Klutch 29-Gallon Air Compressor, 2.5 HP, 120V, 175 PSI, 5.1 CFM at 90 PSI
5.1 CFM at 90 PSI
29 gal vertical tank
175 PSI max
2.5 HP 120V
127 lb
Pros
- 5.1 CFM is the highest airflow in this roundup
- 29 gal vertical tank stores a long spray window
- Oil-free with no carryover
- Vertical footprint saves floor space
- Brass coupler and flat-free tires
Cons
- 127 lb is a heavy lift even on wheels
- 81 dB is the loudest rated figure here
- 175 PSI max sits below the 200-225 PSI class
The Klutch is the machine you buy when the tank size, not the pump, is your constraint. At 29 gallons vertical it holds the largest reservoir in the group while staying on 120V, and 5.1 CFM at 90 PSI is the highest published airflow of any compressor here. Those two numbers together mean fewer motor cycles mid-pass than anything else on a standard outlet.
Owners describe holding pressure for extended stretches without measurable loss, and the oil-free pump removes the question of oil carryover into a fresh finish. The vertical format matters in a garage, where a horizontal twin-stack eats floor width you need for the car.
A brass quick coupler for one-handed hose changes and large flat-free tires make it workable in a shop. The same configuration exists in 20 and 60 gallon versions, so the vertical layout is not a one-size compromise.
Two real downsides. At 127 pounds this is a two-person lift unless you plan the move carefully, and reviewers flag it as awkward to load into a truck. The 81 dB rating is also the loudest in the group, so it wants a garage with the door open rather than a spare room.
One detailed review documents a unit arriving with an internal power switch bypassed, which creates an arc-flash hazard. Inspect the switch on arrival and test the stop control before you run a compressor with a gun attached.
At 175 PSI maximum, the tank ceiling is below the 200 to 225 PSI band that guns with larger regulating ranges prefer. For low-pressure HVLP work at 40 to 50 PSI it is irrelevant. For a gun that wants to be set wide, it is a real limit.
What it handles well in a booth
Multi-panel sequences on 120V. With 29 gallons of reserve, a panel or two of gun time passes without a pump cycle, and 5.1 CFM covers a gun larger than the Metabo can feed. This is the unit we would put in a one-car hobby shop with only a standard circuit available.
The vertical footprint also leaves room beside it for a wall-mounted dryer and filter, which is the correct order of operations for wet paint air.
Where it falls short
Noise and portability. At 81 dB and 127 pounds, this is a garage machine rather than a carry-around one, and it is not pleasant to run next to a conversation. It also cannot reach 225 PSI, so high-pressure guns with wide regulating ranges are out of reach.
4. ECOMAX 6-Gallon 150 PSI Kit – Best for Small Touch-Up Jobs
ECOMAX Air Compressor 6 Gallon 150 PSI Pancake Portable Oil-free Tank with 10 PCS Accessories Kit
3 CFM at 90 PSI
6 gal pancake
150 PSI max
1.5 HP
34.17 lb
Pros
- 4.7 average rating with 81 percent five-star and 1 percent one-star
- 6 gal tank in a pancake body
- Accessory kit with 25 ft hose and blow gun included
- 34.17 lb with a flip-up handle
- Low-voltage and cold-weather start
Cons
- 150 PSI max is the lowest working ceiling here
- 3 CFM is marginal for sustained large-panel spraying
- 75 dB is moderate for a pancake
The ECOMAX is the only unit here with a 4.7 average and 81 percent five-star reviews, and the negative share is 1 percent. For a first paint job, that is a comfortable place to start. It ships as a kit with a 25-foot quarter-inch PVC hose, a coupler, a blow gun and gauges, so there is nothing to buy before the first coat.
Three CFM at 90 PSI from a 1.5 HP pump sits right at the threshold for a small HVLP gun. Paired with a low-pressure gun it will handle a blend, a door, trim and plastic. Reviewers praise the 6-gallon capacity in a compact 16.5 by 15.9 by 19.5 inch body as the balance that makes it work in small garages.
At 34.17 pounds with a flip-up handle, it is one of the easier machines to move between the garage and a car parked outside.
The 150 PSI ceiling is the specification to understand before you buy. A compressor that stores to 150 PSI leaves very little reserve above the 40 to 50 PSI you run at the gun, so your regulator output will sag more during a pass than on a 200 or 225 PSI machine. A 175 PSI variant of the same model exists if that margin matters to you.
The included quarter-inch PVC hose is fine for a blow gun and short passes. It is not what you want for a long run to a booth, and for painting we would budget a separate 3/8-inch hose or a reel.
What it handles well in a booth
Touch-ups, blends, plastic trim and single small panels. The accessory kit removes the guesswork for a first-time setup, and the oil-free pump needs no maintenance between projects.
Because it is oil-free, the air arriving at the gun carries no pump oil, which removes one common cause of fish-eyes on a small repair.
Where it falls short
Large panels and anything needing high atomisation. Three CFM will not hold a big gun steady across a roof or a full door skin, and the 150 PSI ceiling leaves the regulator little room. For a full car, it is not in the running.
5. VEVOR 6.3-Gallon 2 HP – Best for Blasting and Gun Work on One Outlet
VEVOR 6.3 Gallon 2 HP Air Compressor, Max 116PSI, Oil Free Compressor Tank
3.35 CFM at 90 PSI
6.3 gal tank
116 PSI max
2 HP 120V
70 dB
Pros
- 3.35 CFM on a full 2 HP motor
- 70 dB is quiet for a 2 HP tank
- Refills a 6.3 gal tank in about a minute
- 43 lb with casters
- Owners report it taking a Tornador and spray-gun work
Cons
- 116 PSI max is low for automotive spraying
- Power cord is only about 40 inches
- Voltage-picky and unhappy on extension cords
The VEVOR 6.3-gallon punches above its tank size. A 1450-watt oil-free motor turning at 3500 rpm delivers 3.35 CFM at 90 PSI, which is more airflow than most units twice its weight manage. One mobile-detailing owner reports running a Tornador at full capability on it, which is a real-world flow test rather than a spec sheet claim.
At 70 dB it is quiet for a 2 HP vertical tank, and owners confirm that in practice. The double-cylinder intake and dual silencers are why. Fill time is about a minute for the full 6.3 gallons, so recovery between panels is quick.
The construction details are unusually well specified: three-layer Q235B steel rated to 3.5 MPa with seamless welds, silicone and stainless braided intake pipe rated to 392 degrees F, and automatic overheat and overpressure cutoffs. Reviewers say it survives drops and heavy impacts.
The electrical complaints are the real story. The power cord is roughly 40 inches, so the unit has to sit close to an outlet, and reviewers report it will not start or will trip when run on extension cords or shared circuits. Plan the outlet, not just the compressor.
The 116 PSI maximum is the harder limit for paint. That is below the working range most automotive guns prefer, and it leaves very little stored reserve above gun pressure. It suits detailing and blasting work far better than it suits spraying a panel with a high-volume gun.
Small casters also tip the machine if you move it by the handles rather than rolling it.
What it handles well in a booth
Pre-coat prep and detailing work that pairs a gun with a vacuum or blower. The 70 dB figure keeps it usable in an enclosed space, and 43 pounds with casters is manageable for one person.
Automatic overheat and overpressure protection is a genuine advantage when a compressor shares an outlet with a sander.
Where it falls short
Spraying. 116 PSI max and 3.35 CFM will not support a gun set to wide atomisation, and the 10 percent one-star share in the reviews traces mostly to electrical complaints rather than performance. Fix the outlet and most of that goes away.
6. VEVOR 13-Gallon 2 HP – Largest Tank in the Quiet Class
VEVOR 13-Gallon Air Compressor, 2HP, 4.6 SCFM@90PSI, Oil-Free Tank, 66dB Quiet Operation, Ideal for Tire Inflation, Woodworking, Auto Repairs, and Spray Painting (Maximum Pressure 125 PSI)
4.6 CFM at 90 PSI
13 gal tank
125 PSI max
2 HP 120V
66 dB
Pros
- 13 gal tank stores enough air for a panel sequence
- 66 dB is quiet for the capacity
- Builds full pressure in under 3 minutes
- Two output connections for a gun and a second tool
- 7 inch reinforced rubber wheels
Cons
- 125 PSI max is low for automotive guns
- A detailed review reports 2.7 CFM real output versus 4.6 advertised
- Some reports of thermal-switch lockouts lasting 20-30 minutes
Thirteen gallons of stored air in a 66 dB package is the combination this one offers. Tank size is the reserve that lets a spray pass finish before the motor restarts, and this is the second-largest reservoir in the roundup, paired with the second-quietest rated figure.
Owners like that it builds full tank pressure in under three minutes on a 2 HP motor, and the reinforced leak-proof valve system is credited with stable output during long tasks. Two output connections let a gun and a second tool run at once, and the two 7-inch rubber wheels roll smoothly between indoor and outdoor setups.
Then there is the caveat, and it is a serious one. A detailed review reports the manufacturer’s customer service acknowledging real continuous output of about 2.7 CFM against the advertised 4.6. That is the delivered-versus-displacement problem in its clearest form.
There are also reports of the unit refusing to re-pressurise until the thermal switch resets after 20 to 30 minutes, and of unloader valve, start capacitor and intake filter failures inside the first 30 to 90 days. A 215-review base is thinner than most of the group here, so the long-term data is not yet there.
At 125 PSI maximum, the ceiling is low for automotive spraying. And at 71 pounds with legs that can arrive bent from shipping, inspect the frame before you rely on it.
What it handles well in a booth
Panel sequences in a quiet space. The 13-gallon reservoir gives you a long spray window at 66 dB, which is the combination most home painters underestimate until they have tried to work next to a running compressor.
Two outputs mean you can keep a gun and a blow gun live during a teardown without cycling the tank.
Where it falls short
Trusting the published CFM. If real output is closer to 2.7 CFM, this is a touch-up and prep machine with a big tank, not a sustained-flow paint compressor. The 125 PSI ceiling reinforces that. Verify output with a download gauge or a receiver gauge before committing a project to it.
7. CRAFTSMAN 6-Gallon 150 PSI Pancake – Lightest Unit to Carry Into the Booth
CRAFTSMAN 6 Gallon 150 PSI Oil-Free Pancake Air Compressor CMXECXA02106410
2.6 CFM at 90 PSI
6 gal pancake
150 PSI max
1 HP 120V
30.8 lb
Pros
- Lightest machine in the roundup at 30.8 lb
- 6 gal tank in a 15.8 by 16.4 by 17 in body
- Oil-free low-voltage start needs no oil changes
- Dual quick couplers
- 1 year warranty with a US service team
Cons
- 82 dB is the loudest rated figure in the group
- 2.6 CFM falls below sustained HVLP gun demand
- 150 PSI max is low for automotive work
At 30.8 pounds, the CRAFTSMAN is the one you can move to the car rather than bring the car to the compressor. That is the whole argument for it. A painted vehicle in a residential driveway is a hundred yards from a garage outlet more often than anyone plans for, and a 30-pound pancake is a one-hand carry.
The 6-gallon tank in a 15.8 by 16.4 by 17 inch body is a sensible capacity-to-size balance, and the oil-free low-voltage-start motor runs without oil changes. Dual quick couplers cover a gun plus a second tool, and the 1-year warranty is backed by a US service team.
Reviewers report fast pressure build and a footprint that fits in tight shops, which is the practical advantage when booth space costs you floor area.
The 2.6 CFM figure is the honest problem. That is below the airflow needed to keep most HVLP spray guns fed continuously, and it is the lowest rated flow of the mid-size machines here. The 82 dB noise rating is the loudest in the group, and some owners report a unit stopping and not restarting during a long painting session.
The 150 PSI ceiling leaves thin margin above gun pressure, and there are reports of handles arriving broken. Check it during unpacking.
What it handles well in a booth
Small panels, plastic repair and touch-up work on a car that is not in the garage. Light weight and a compact footprint make it the most flexible machine to position around a vehicle, and the oil-free pump keeps the delivered air clean.
At 120 volts and 1 HP it will not fight you for the circuit, which leaves capacity for a light sander running at the same time.
Where it falls short
Sustained spraying. 2.6 CFM pulses with almost any automotive HVLP gun, and the 82 dB figure makes it unpleasant to work beside over a long session. Reach for the Metabo HPT or the Klutch if the gun is going to be open for more than a few minutes.

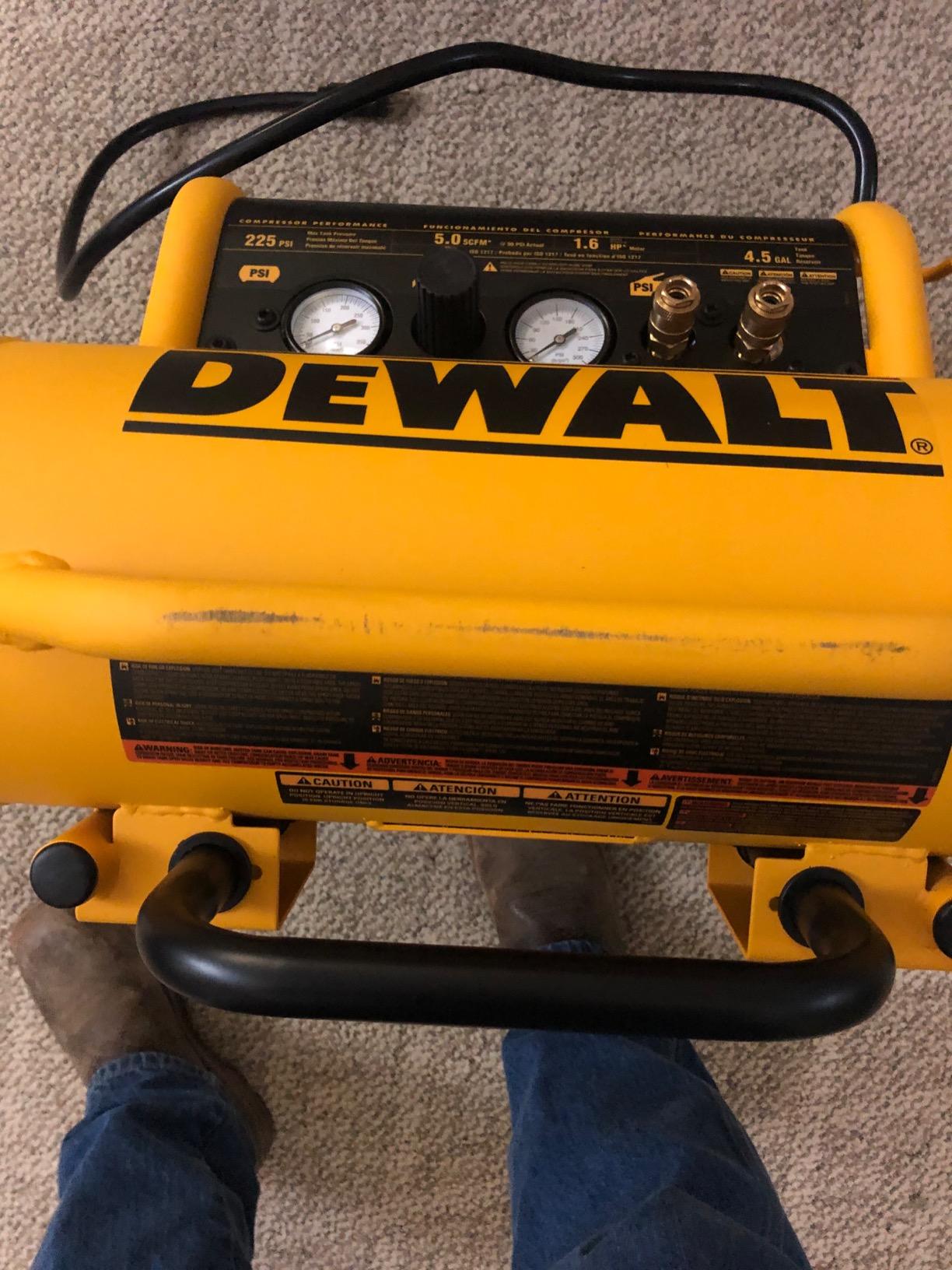

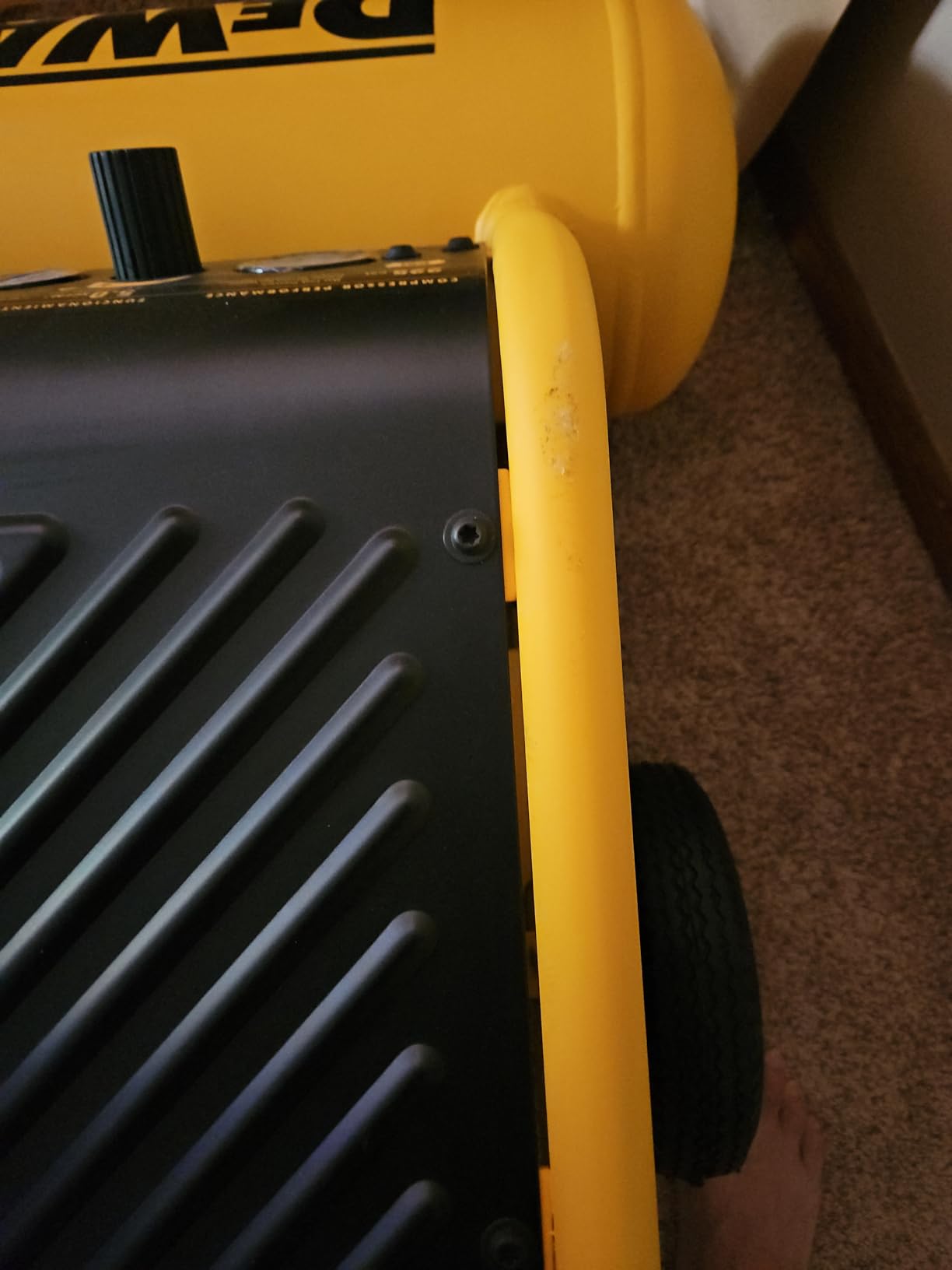

8. DEWALT D55146 4.5-Gallon 225 PSI – Most Pressure You Can Plug Into a 15 Amp Circuit
DEWALT Air Compressor, 225-PSI Max, Hand Carry with Wheels, 4-1/2 Gallon (D55146)
5 CFM airflow
225 PSI max
4.5 gal tank
1.6 HP
15 A draw
88 lb
Pros
- 225 PSI is the highest tank pressure in the roundup
- 5 CFM confirmed in real use by owners
- Oil-free maintenance-free pump
- One owner reports a decade of weekly use with seal and knob rebuilds
- 10 inch non-flat tires
Cons
- Full 15 amp draw needs a dedicated circuit
- 88 lb is awkward to load without a ramp
- Regulated output tops out near 140-150 PSI despite a 225 PSI tank
The D55146 solves the problem the other compressors here cannot: 225 PSI of tank storage on a 15 amp circuit. That reservoir is what lets a regulator deliver a stable 50 to 60 PSI at the gun while the pump catches up, and 225 PSI gives you somewhere to store the excess.
Owners confirm real-world delivery of about 5 CFM, and one reports ten years of weekly use with only seal and knob rebuilds. That kind of longevity data is rare in a 421-review listing. The 10-inch non-flat tires and the tubular roll cage handle shop floors well.
It is oil-free and maintenance-free, with a protective metal console carrying 2-inch gauges and a high-flow coupler. The pressure is on the regulator side of the tank, which is the setup you want for paint.
The 15-amp draw is the number to plan around. It needs a dedicated circuit, and on a shared household line it will trip breakers when a sander kicks in. It is also 88 pounds, which is a two-person lift without a ramp.
At 78 dB, with a whine some owners attribute to the brushed motor, it is loud. Regulated output tops out around 140 to 150 PSI even though the tank reaches 225, so plan your gun pressure on the lower figure. The couplers accept 3-in-1 industrial, ARo and Truflate fittings but reject high-flow and 7.2 mm connectors, so match your hose before you buy.
Last, the tank has to be tilted about 45 degrees to drain properly and the petcock is hard to reach, which is an annoyance on a job that needs frequent draining.
What it handles well in a booth
High-pressure guns with wide regulating ranges. Among 120V machines this is the one that stores enough pressure to keep a gun stable at its higher settings, and the long ownership reports give real confidence in the pump.
It also suits shops that run a gun and a second pneumatic tool, with the 4.5-gallon tank and 5 CFM covering short bursts of both.
Where it falls short
Convenience. The dedicated circuit, the 88-pound weight, the noise and the coupler standard all cost you something at setup time. If you already have a 15 amp line you can dedicate, it is a strong pick. If not, the wiring project may cost more than the machine.

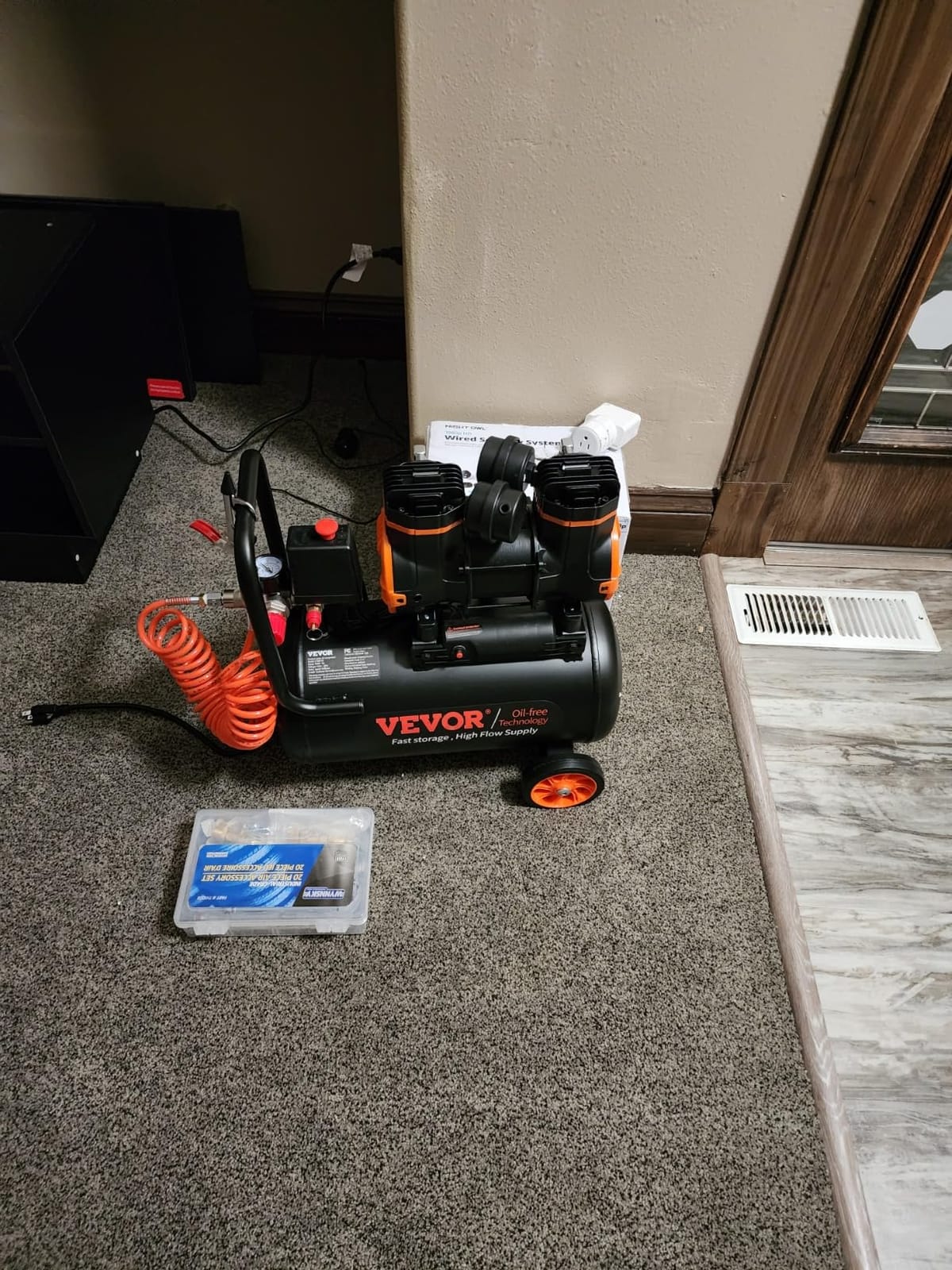

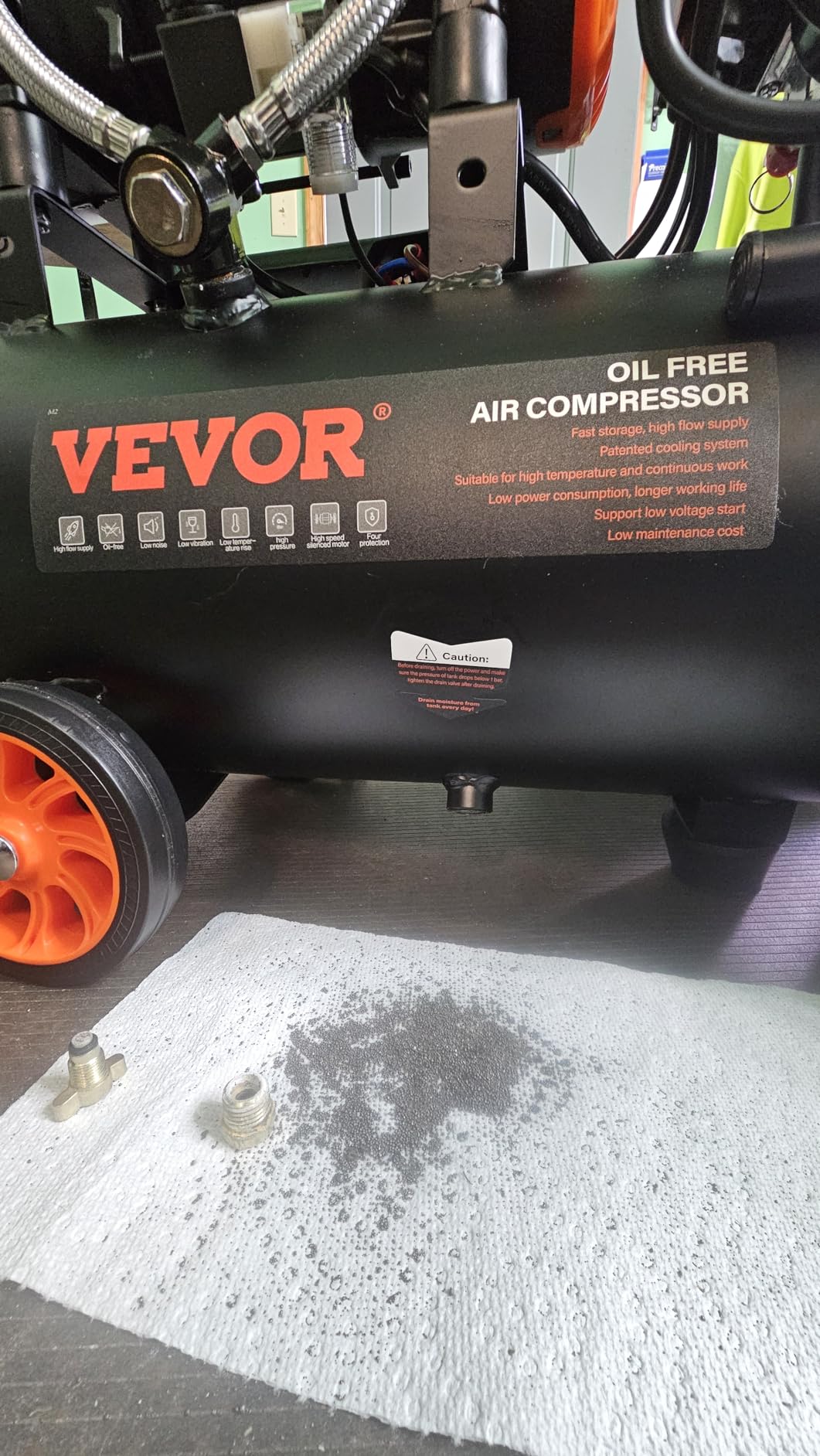

9. VEVOR 4.8-Gallon 1.2 HP – Smallest Footprint With Twin-Cylinder Intake
VEVOR 4.8 Gallon Air Compressor, 1.2HP 2.2 CFM@90PSI Oil Free Air Compressor Tank & Max. 116PSI Pressure, 70 dB Ultra Quiet Compressor for Auto Repair, Tire Inflation, Spray Painting, Woodwork Nailing
2.2 CFM at 90 PSI
4.8 gal tank
116 PSI max
1.2 HP 120V
70 dB
34 lb
Pros
- 3 percent one-star share is among the lowest in the group
- 70 dB quiet operation
- 34 lb in a 20.5 inch square footprint
- Oil-free twin-cylinder intake
- Automatic overheat and overpressure protection
Cons
- 2.2 CFM is the lowest airflow in the roundup
- 116 PSI max leaves almost no regulator reserve
- Short cord on a 1.2 HP unit limits placement
This 4.8-gallon VEVOR is the one to buy when floor space is the binding constraint. At 20.5 inches square and 34 pounds it tucks into a corner of a one-car garage, and 70 dB keeps it usable when the car is in the same room.
Reviewers respond well to it, with 73 percent five-star ratings and only 3 percent one-star. The double tube and double cylinder simultaneous intake is why fill time stays short, and the twin silencers with filter cotton handle the noise. Tank steel is three-layer Q235B with seamless welds rated to 3.5 MPa.
Two large cooling fans and automatic overheat and overpressure shutoff protect it in a warm garage. If you have ever had a compressor trip in July, that cutoff is worth something.
As a paint machine it has two hard limits. The 2.2 CFM airflow at 90 PSI is the lowest in the roundup, well under what an HVLP gun needs to run continuously, and the 116 PSI maximum matches the lowest ceiling found in this roundup. Together they mean this is a nailing, sanding and small-spraying compressor.
The short cord on a 1.2 HP motor also limits where you can place it, and the same extension-cord sensitivity reported on the sibling VEVOR models applies here.
What it handles well in a booth
Small spraying jobs, trim work and prep. The quiet operation and compact footprint make it the least intrusive compressor to run in a residential garage, and the 4.8-gallon tank is enough for a small gun on a single panel.
It is also a good second machine alongside a larger one, handling blowing and inflation while the bigger unit does the spraying.
Where it falls short
Anything sustained. 2.2 CFM will starve an HVLP gun within seconds, and 116 PSI gives the regulator almost no reserve. For paint, treat it as a touch-up and prep compressor rather than a booth compressor.
10. Makita MAC320Q 3-Gallon Quiet Series – Top Rated Unit in the Roundup
Makita MAC320Q Quiet Series 1-1/2 HP, 3 Gallon, Oil-Free, Electric Air Compressor
60 dB operation
3 gal tank
135 PSI max
1.5 HP on 8.5 A
1750 RPM
Pros
- 60 dB is the quietest figure in the roundup
- 1750 RPM running speed extends motor and pump life
- Recharges faster than it discharges
- Oil-free dual-piston pump
- Separate tank and outlet gauges
Cons
- 135 PSI max sits below the 200-225 PSI class
- 3 gal tank is small and the motor runs more often
- Some reports of fittings sticking or leaking
Sixty decibels changes how a compressor fits into a workspace. The MAC320Q runs quietly enough to work beside without hearing protection, which matters when you are masking, blending and judging colour in a residential garage with the door open.
The 1750 RPM running speed is the engineering behind the quiet figure and the second reason for it: a slower motor generates less heat and wears less. Owners report it recharges faster than it discharges, so in typical use the tank is refilled before the reserve runs out.
The 1.5 HP motor draws just 8.5 amps on 120V, which is the lowest current draw in the roundup and gives you circuit headroom for a sander or lights. Two hose outputs let a gun and a blow gun run together, and separate tank and regulated outlet gauges let you set tool pressure precisely. Full roll-cage construction protects the pump, and owners note it does not walk across a floor while running.
The 135 PSI ceiling is the specification to plan around. It sits below the 200 to 225 PSI band, which means very little stored reserve above your working gun pressure, and regulators will sag more during a pass. Three gallons of tank is also the second-smallest capacity here, so the motor runs more often than it would on a vertical unit.
It is heavier than the smaller Makita pancake models and takes two hands to carry. A few owners report hose and outlet fittings sticking or leaking on first connection, which is a seal issue rather than a pump issue.
Makita does not publish an airflow figure for this model, so treat any CFM number you see quoted elsewhere as unverified. At 1.5 HP on an 8.5 amp draw, sustained HVLP flow should be expected to sit at the lower end of what the Metabo HPT delivers.
What it handles well in a booth
Small-to-medium panels, blends and trim work where noise is the deciding factor. The 8.5 amp draw means it can share a circuit with lighting and hand tools, and 60 dB keeps neighbours and your own concentration intact.
The separate outlet gauge is genuinely useful for paint work, because it tells you what the gun is actually receiving rather than what the tank holds.
Where it falls short
Stored pressure and stored volume. 135 PSI and 3 gallons together mean the least reserve in the group for sustained spraying, and the motor runs more often to compensate. For a long panel, budget for a pause.
Where the Air Comes From: Regulators, Filters and Dryers
The compressor is half the system. The other half is the air train between the tank and the gun, and it is where most paint defects are actually born.
Wet compressed air causes fish-eyes, bubbling, blistering and orange peel. A reciprocating piston compressor can discharge air well above 200 degrees F, and as that air cools inside the tank and lines, water condenses out. That water rides along to the gun and beads on the surface as you spray.
Here is the order that works, and the order matters:
Set the tank pressure, typically 40 to 60 PSI for a low-pressure HVLP gun
Run a combination filter and regulator to drop pressure to gun pressure and pull particulate out
Fit a moisture separator to strip bulk water
Add an aftercooler between the pump and the tank if the compressor does not have one, so the tank fills with cooler air that holds less water
Add a desiccant or refrigerated dryer for anything above spot work
Finish with a 3/8-inch hose or a reel, then a quick connect at the gun
The aftercooler step is the one people skip. A refrigerated dryer without an aftercooler in front of it will not perform, because it is being fed air that is still too hot to condense the water properly. Users who went from a stuttering setup to a stable one on For A Bodies Only reported the same pattern, adding an aftercooler between the pump and tank and describing the result as painting with no worries.
If you want the wider picture on tank draining, couplers and shop layouts, we covered the accessories side in the full air compressor guide. For finishing technique itself, our beehive painting and finishing kit roundup covers gun and coating selection.
120V vs 240V: The Wiring Decision Before You Buy
A 15 amp household circuit delivers 1800 watts at 120 volts. That ceiling decides what you can buy, and it is the single most common reason painters order a compressor they cannot power in their own garage.
Everything in this roundup draws between 8.5 and 15 amps, so all ten run on standard household current. The 5 HP machine that delivers the 15 CFM a full car respray needs would draw far more than 15 amps at 120V, and it requires a dedicated 240V branch circuit installed by an electrician.
Two practical rules. First, put a compressor on its own circuit rather than sharing with a sander, because a compressor starting while a sander is loaded is a common trip. Second, if a machine spec sheet says 14.5 amps, budget for a 20 amp circuit rather than 15. The 14.5 amp figure on the Klutch and on the 6.3-gallon VEVOR is a real constraint in a residential garage.
Extension cords are the other trap. Several reviewers on the VEVOR models report units that will not start or that trip repeatedly when run on an extension cord. For a compressor, plug it into the wall.
What to Check Before You Buy a Paint Compressor
Five checks, in the order that prevents an expensive respray.
Get delivered CFM at a stated pressure, not a headline number. Manufacturers routinely quote displacement, the volume the pump sweeps, rather than the air it pushes out at working pressure. A unit advertised at 4.6 that a reviewer measured at 2.7 is not a rounding error. Ask for the figure at 40 PSI if you paint with a low-pressure gun.
Match the gun, not the ambition. A paint gun is the one pneumatic tool you run near-continuously, so its usage factor is far higher than an impact wrench used in 15-second bursts. Low-pressure guns pulling 3 to 4 CFM can be fed by a 4 CFM compressor. High-volume guns pulling 15 CFM cannot, at any tank size.
Tank size buys you a spray window, not airflow. Tank size only determines how long you can spray before the motor restarts. It does not create CFM. Oversized tank with thin airflow gives you a long window at a pressure the pump cannot sustain, which is how a big tank still produces a bad finish.
Decide single-stage versus two-stage honestly. A single-stage pump tops out around 125 to 150 PSI and is rated for intermittent duty. A two-stage pump compresses in two steps with an intercooler between them, runs cooler, pushes to 175 PSI and beyond, and is rated for the continuous duty a full respray demands. If your work is panels, single-stage is fine. If it is full cars, two-stage is not optional.
Choose the oil type deliberately. Every compressor here is oil-free, which means no pump oil can reach a fresh finish, no oil changes, and a higher purchase price for the same airflow. For painting specifically that is a defensible trade. A lubricated cast iron pump costs less and lasts longer, but adds a separator and maintenance. Our portable air compressor roundup covers the lubricated side in more detail.
Two more things worth weighing. Noise ratings are measured under standard conditions, so treat the number as relative rather than absolute; a 70 dB compressor in a garage with a hard floor and a car in it will read louder than the number suggests. And if you plan to run a blast cabinet or a pneumatic sander alongside the gun, add their flow demand to the gun’s before you choose a machine.
For background on the broader compressor categories, including the lubricated and larger-horsepower options we could not cover here, read our full air compressor rankings. If you also need to move air around a shop, the jump starters with air compressors roundup covers emergency inflation on the road.
Frequently Asked Questions
How many CFM do I need to paint a car?
Plan on 15 CFM at 40 PSI for a full car respray, 4 to 6 CFM at 40 PSI for a single panel, and 2 to 3 CFM for touch-ups. A paint gun is a low-pressure, high-flow tool, so CFM at working pressure matters more than tank size or maximum PSI.
Will a 30 gallon air compressor paint a car?
A 30 gallon tank is enough stored air for panel work and short sequences, but tank size alone does not create airflow. Painting a whole car takes roughly 15 CFM at 40 PSI from a 60 gallon, 5 HP two-stage compressor on a dedicated 240V circuit.
Is 4 CFM enough to paint a car?
4 CFM at 90 PSI is enough to feed a small HVLP or LVLP gun through a single panel pass without the tank running dry mid-coat. It is not enough for a full car, where a large HVLP gun can pull 15 CFM and the compressor would pulse constantly.
Does tank size affect CFM?
No. Tank size determines how long you can spray before the motor restarts, not how much air the pump delivers. A large tank paired with a low-flow pump gives you a long spray window at a pressure that cannot be sustained.
Why does my painted surface have fish eyes?
Fish eyes are almost always moisture in the air line. Add a moisture separator, a desiccant or refrigerated dryer, and an aftercooler between the pump and the tank, then drain the tank and the filter housing before the first coat. Oil carryover from a lubricated pump causes the same defect.
Do I need a two-stage compressor to paint a car?
For a full car respray, yes. A two-stage pump with an intercooler runs cooler, reaches 175 PSI and above, and carries a continuous duty rating. A single-stage pump topping out around 125 to 150 PSI is built for intermittent work like panels, trim and touch-ups.
Final Verdict: Which Air Compressor for Painting Cars
For panel work on a standard 120V circuit, the Metabo HPT EC914S is our pick. Four CFM at 90 PSI with 200 PSI of tank reserve is the smallest combination that keeps a paint gun fed through a full-length pass, and the review base behind it is the largest in the group. If your priority is stored air rather than carry weight, the Klutch 29-gallon gives you 5.1 CFM and 29 gallons on the same 120V supply. If noise decides where the compressor can live, the Makita MAC320Q at 60 dB is the quietest machine here by a wide margin.
None of these ten will spray a complete car at professional flow, because none of them can, at 120V. For a full respray in 2026, the correct answer is a 60 gallon, 5 HP, two-stage compressor on a dedicated 240V branch circuit, paired with an aftercooler and a dryer. Match the gun’s airflow demand to the compressor’s delivered CFM at 40 PSI, and check the moisture side of the system before you spray the first coat. More compressors in our general rankings if you want the wider field.
