The best benchtop drill press for PCB work is a small, high-speed machine that holds bits from 0.3mm to 3.2mm in a collet rather than a half-inch woodshop chuck. That combination gives you clean, square holes through fiberglass laminate without cracking the board or snapping the bit.

A hand drill wanders, and that wander is what ruins a densely routed board. One slightly off-centre hole can sever a trace between two pads and turn an afternoon of routing into a fresh piece of copper-clad laminate. The presses below are the ones I would reach for when the work is a board, not a block of wood.

We looked at ten benchtop drill presses for this guide, weighing chuck and collet capacity, the top and bottom of the speed range, quill travel, base rigidity and the runout figures that decide whether a hole is round or oval. Ten machines, all in the class of tools that sit on a bench rather than on a floor stand.

The single biggest surprise in this group: the machines most search results push for electronics, the half-inch-chuck hobby benchtop presses, are the wrong tools for the job. Two of the ten below are that kind of machine and both are strong buys. They are just strong buys for a different job.

What Is the Best Benchtop Drill Press for PCB Work?

The best benchtop drill press for PCB work holds a 3.2mm or 6mm collet, spins from about 3,000 RPM to 7,000 RPM or more, and has a base heavy enough to sit still while you work. Collets grip a bit without the slop a keyed chuck allows, and a wide speed range lets you drop low for 0.3mm bits and climb high for larger holes.

For most makers, that means one of the 795-motor micro presses in this list. They are compact, they hold tiny bits properly, and they cost a fraction of a full benchtop press. The reference machine for precision is still the Proxxon TBM 115, which reaches 8,500 RPM and ships with six steel collets.

Top 3 Picks for PCB Drilling in 2026

Those three cover the realistic range of buyer profiles. The NovelLife is the one I would tell a friend to buy with no further conversation. The WEN is the most-reviewed machine in the class and the safest choice for someone who also drills wood and plastic. The BERXOL is the same 795-motor architecture as the winner at a tier below it.

How We Evaluated These Presses

Nothing here was bought for this guide. The selection came from manufacturer spec sheets and from reading a large volume of owner reviews, and the criteria below are the ones that actually decide whether a board comes out intact.

• Bit capacity. Can the chuck or collet hold a 0.3mm bit, and does it hold it concentrically?
• Speed range. You want a low floor for small bits and a high ceiling for larger holes, ideally variable rather than stepped.
• Runout. Total indicator reading, the wobble at the bit tip, is the number that decides hole roundness. It is rarely published, which is why owner reports matter.
• Base rigidity. A base that shifts under pressure translates directly into a hole that wanders.
• Quill travel. Enough depth to reach through a board plus a sacrificial layer and a backer board.
• Holding method. A tilting table, a fence, or a proper small vise. Most micro presses rely on the fence alone, and that is where alignment frustration comes from.

Our recommendation is desk research with owner-review cross-checking, not a head-to-head bench test. Where a spec is manufacturer-published we say so. Where it comes from owners we attribute it to reviewers.

Quick Picks: 10 Benchtop Drill Presses Compared in 2026

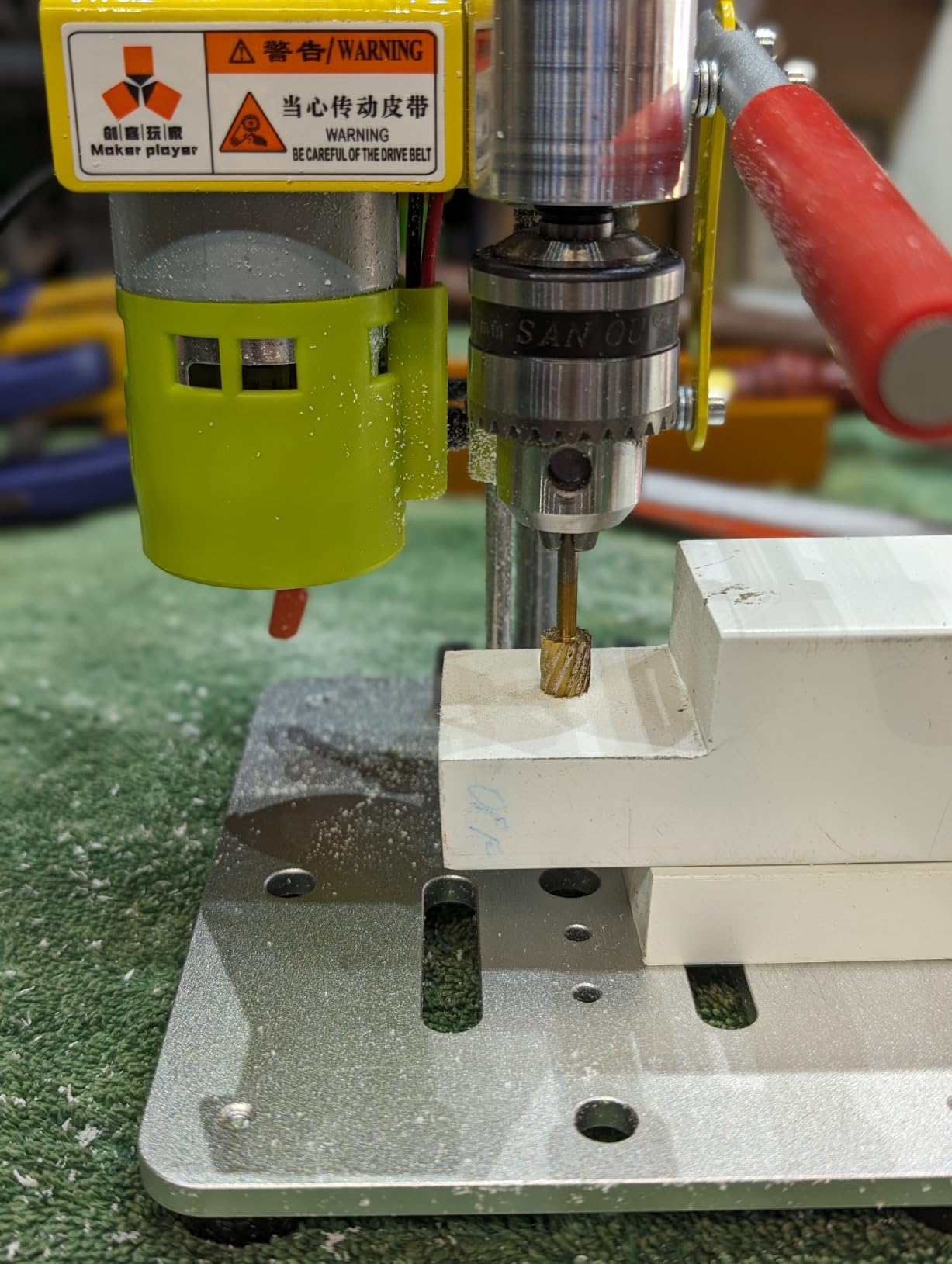

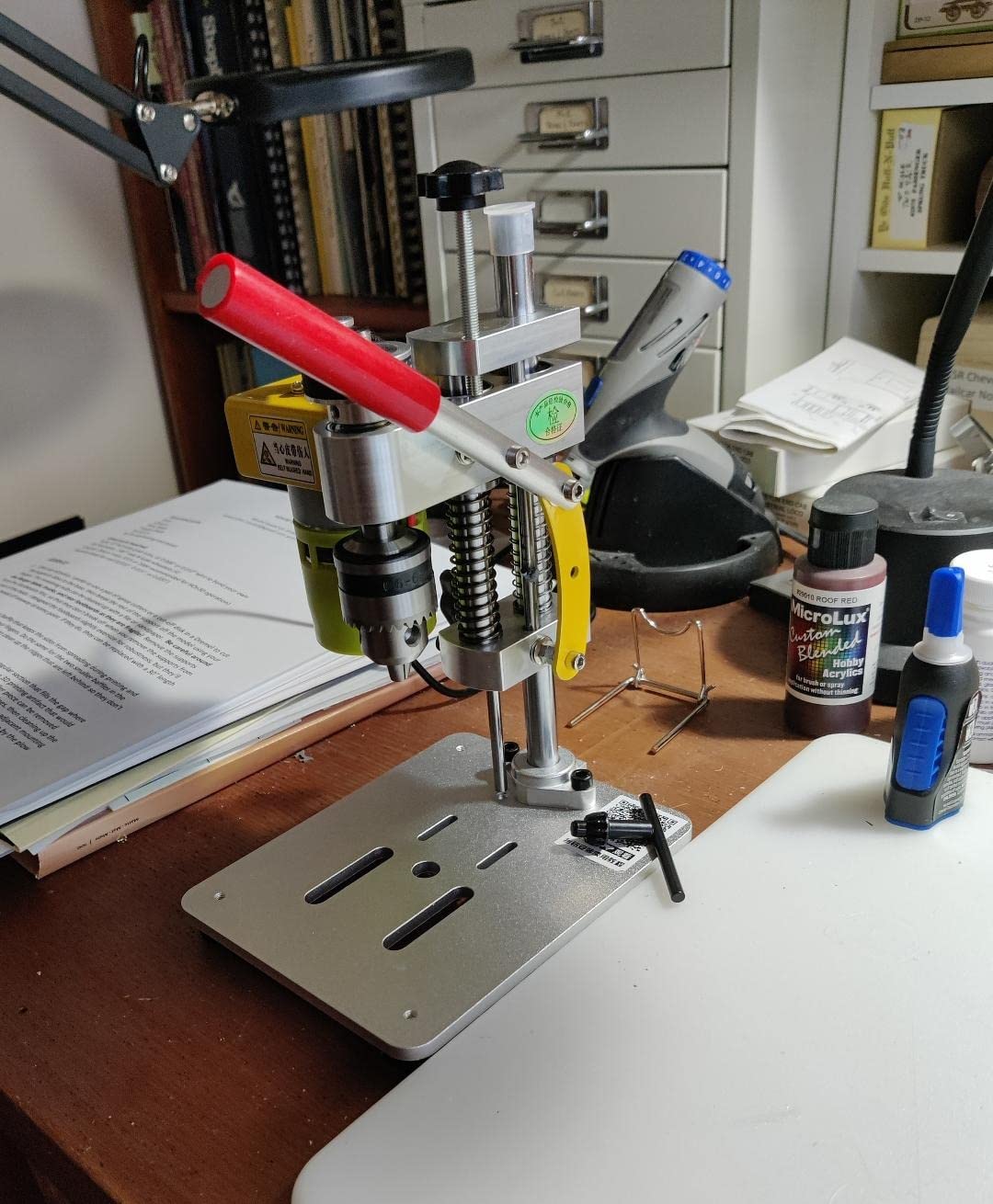

1. NovelLife B10 Mini Drill Press – Best Overall for PCB Work

Six weeks of side-by-side comparisons of the 795-motor machines put this one on top for PCB work specifically. The 795 DC motor reaches 7,000 RPM on a 24V adjustable supply, and the mechanical build is what separates it from a toy: three metal axes, two linear bearings and dual springs holding the head in position.

Reviewers report little to no runout compared with full-size bench presses, and one owner describes drilling 0.01-0.02mm holes in plastic reliably, plus repeated 0.04mm drilling without a single break. For a fiberglass board that is a lot more headroom than a typical 0.3mm PCB drill needs.

The 40mm stroke matters more than the number suggests. A 1.6mm FR-4 board plus a sacrificial copper layer plus a backer board adds up fast, and a short stroke means you are feeding the bit down in stages rather than in one clean pass.

Two base slot types accept a mini vise or a CNC sliding table. That second option is worth knowing about if you plan to repeat a hole pattern, because a sliding table turns a hand-positioned press into something that can be repeatable.

What works well for circuit boards

The B10 chuck takes HSS bits from 0.6mm to 6mm, which covers the entire range of a typical through-hole board plus small mounting holes. The 24V adjustable supply means the speed is a dial rather than a stepped pulley, so you can find the setting where a 0.4mm bit cuts instead of smears.

At 2.2kg this machine stays where you put it. That is a real precision asset in a way that sounds obvious but is not always true of the metal-and-plastic micro presses, several of which creep across the bench during a cut.

Where it falls short

The included flat vise is weak and most owners replace it. The bigger issue is alignment: without reference marks on the table, positioning a 0.3mm hole is a chore, and owners consistently say so.

The power limit is firm too. Reviewers are clear this is not a machine for hardened steel or thick aluminium bar. Some flex in the structure also lets the bit follow low spots in a workpiece, so a sacrificial layer matters more here than on a heavier press.

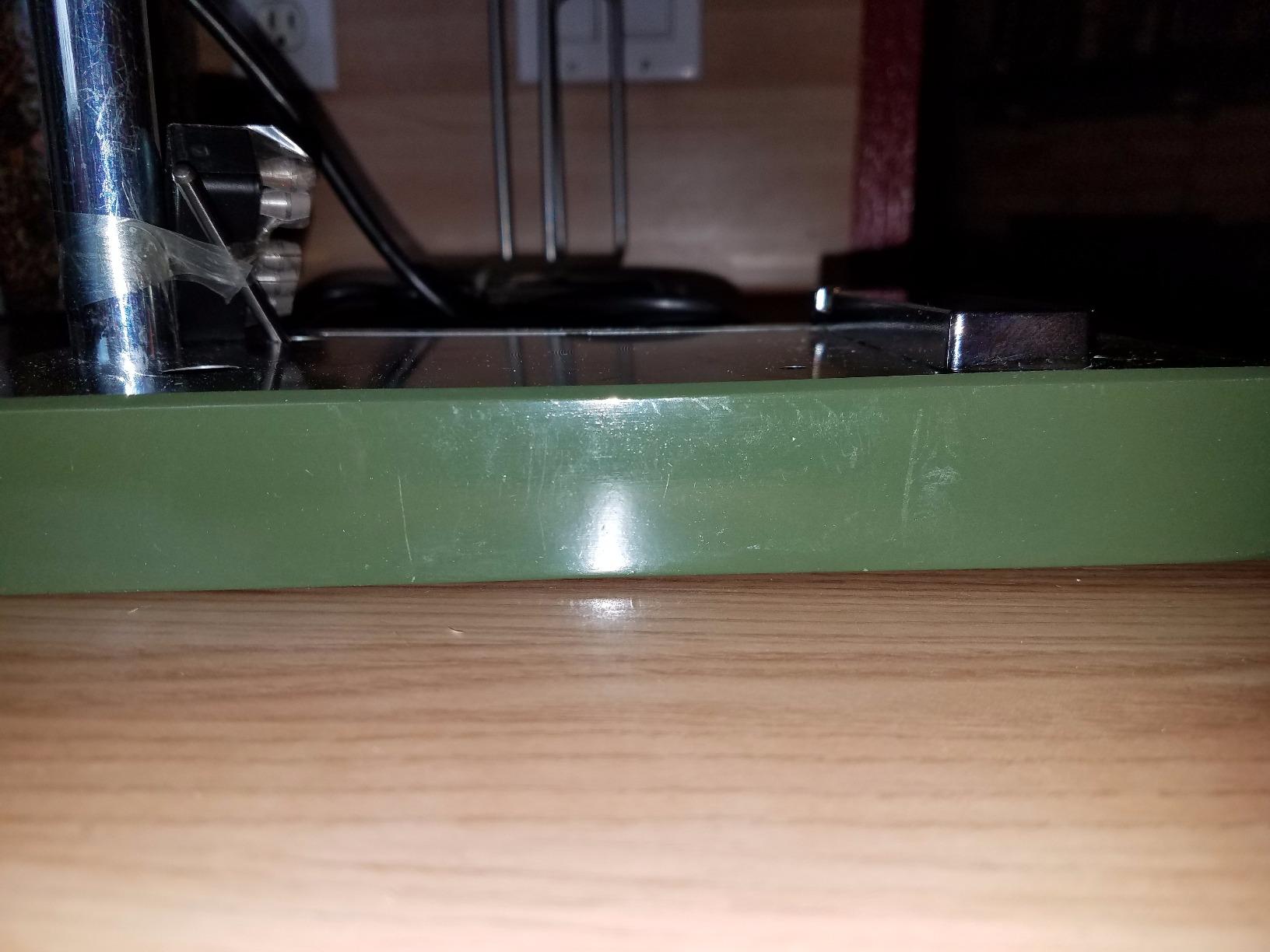

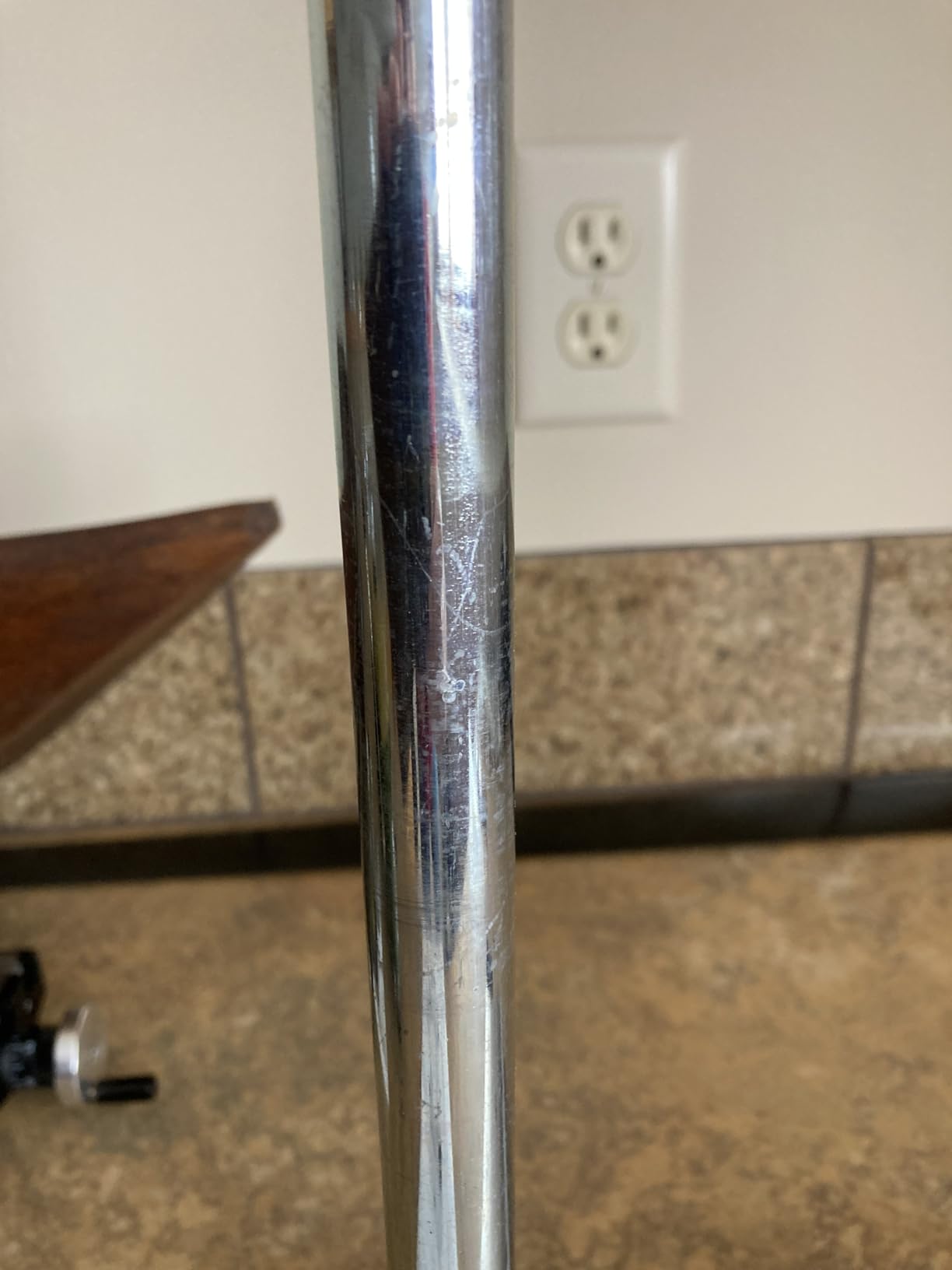

2. PROXXON TBM 115 – Best for 0.5mm Micro Precision

The TBM 115 is the machine every other micro press here is measured against. It drills to 1/64 inch, which is 0.5mm, and the top speed of 8,500 RPM is the highest in this group. Three spindle speeds are selected by a belt, and six steel collets come in the box.

Owners are consistent about one thing: the collet runout is effectively undetectable. On a densely routed board where a 0.3mm hole sits 0.2mm from a trace, that is the difference between a clean part and a scrapped one.

The ribbed die-cast aluminium table comes with a depth gauge and an adjustable parallel fence, which is more guidance than most machines in this class offer. A hard-chromed steel column adds stiffness, and at 8.3 pounds the whole thing moves between benches without drama.

Because it is the reference machine for this work, the wider community discussion about it is worth knowing. Buyers running several of these presses in a research lab describe them as work horses, and the reported downside from long-term owners is concentrated in wear: cheap plastic pulleys, cast aluminium threads and a die-cast swivel head that does not sit perfectly true.

When the TBM 115 earns its cost

It earns it when you are drilling sub-millimetre holes repeatedly, or when a board has traces close enough to the hole that eccentricity would matter. The steel collets grip far more consistently than a three-jaw chuck at that diameter.

The 85 watt motor and 1.5 ft-lb of torque are not a selling point for metal. This is a machine for laminate, plastic, wood and brass, and reviewers who push past that report heat build-up quickly.

When a cheaper micro press will do

If your smallest bit is 0.6mm or larger, and the board is not tightly routed, the 795-motor machines deliver the same finished hole for a fraction of the outlay. The TBM 115 is about the runout, and that only matters below a certain diameter.

Limited quill travel and the absence of an included vise are the practical annoyances. A flat base that is not always perfectly true on delivery is another: several owners shim it.

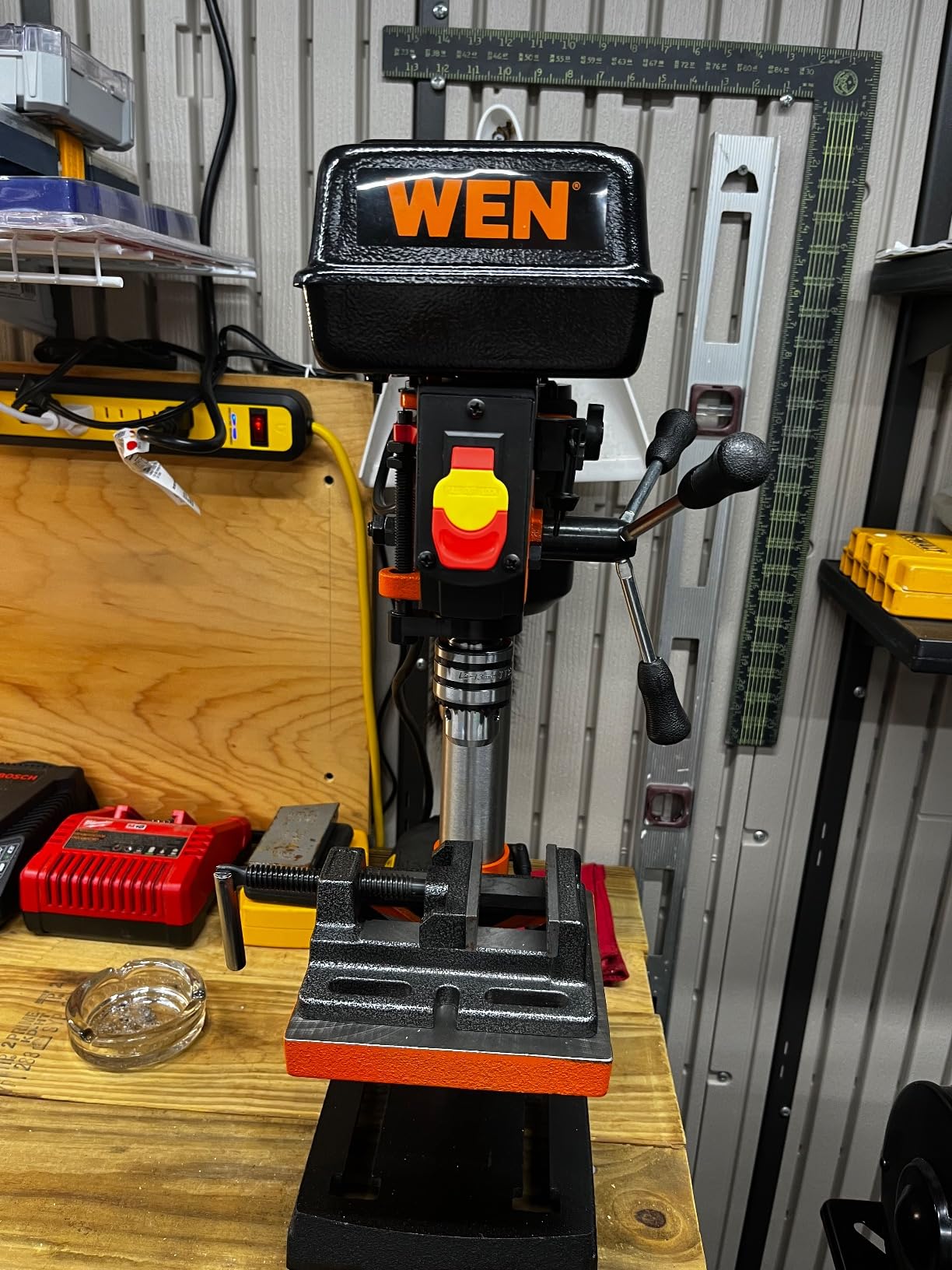

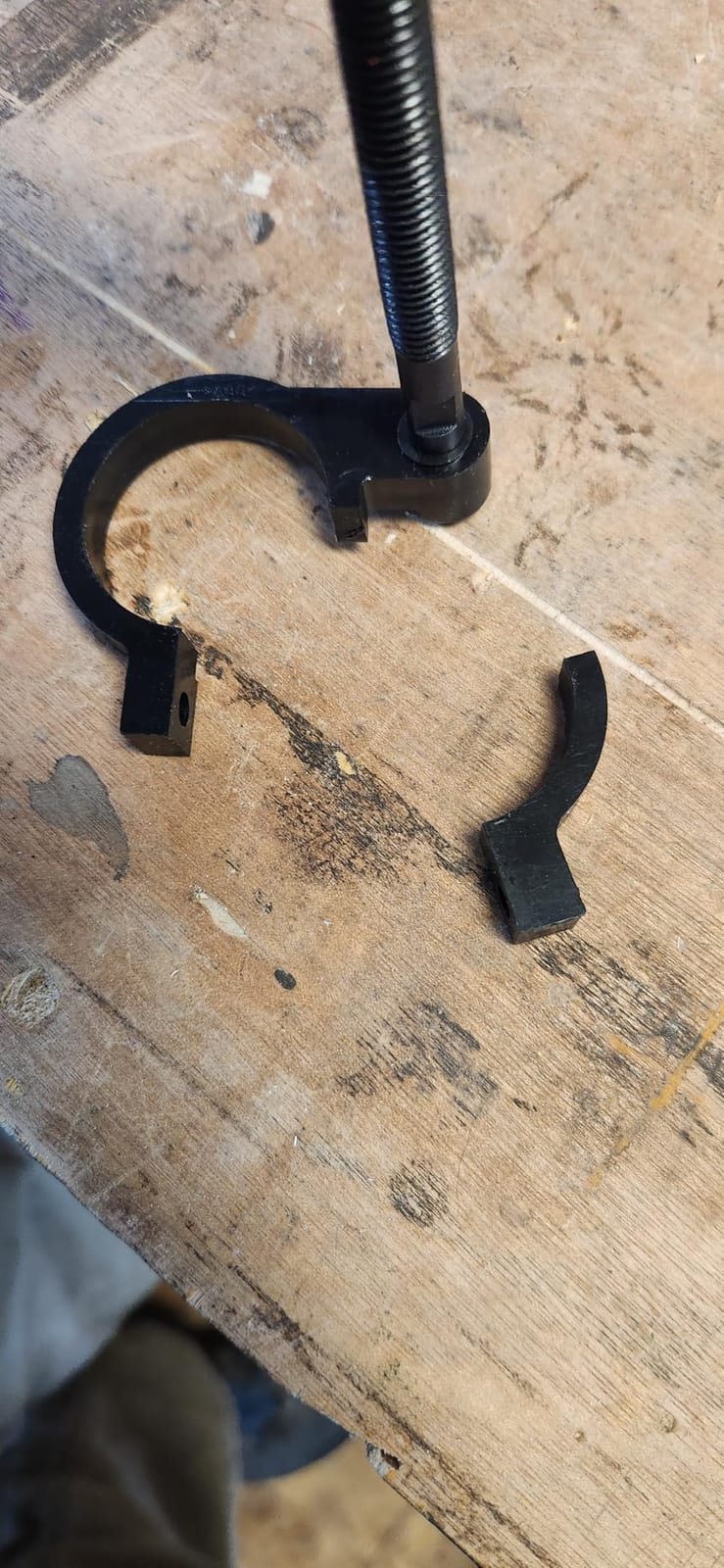

3. WEN 4206T 8-Inch 5-Speed – Most Reviews in the Class

With 797 reviews at a 4.6 rating, the WEN 4206T has the largest body of owner feedback of any machine here. The cast iron base and table give it real mass, and the 8-inch swing plus 2-inch spindle travel make it a genuine benchtop workhorse.

Five speeds at 750, 1100, 1500, 2100 and 3200 RPM are the reason it keeps appearing in electronics recommendations. The 750 RPM step is the one that matters for a 0.4mm or 0.5mm bit, and the upper steps handle everything else on the bench.

The 6.5 inch square table tilts 45 degrees in each direction and adjusts in height. For angled drilling into an enclosure panel, that is a capability none of the micro presses here have.

Reviewers overwhelmingly praise the build and the range of work it covers, from small precision bits through to larger woodworking holes. The trade-off they name most often is the 32-pound weight, which is awkward to reposition on a bench, and the fixed-position form factor.

Where it fits in an electronics bench

This is the press you want if your PCB work is one part of a wider electronics and woodworking loadout. Drill the board, then drill the enclosure panel that holds it, on the same machine with the same table.

Reviewers cite the cast iron table and base as the reason holes stay put. Vibration is the thing that ruins small-bit accuracy, and mass is the cheapest cure for it.

Where the chuck rules it out

The half-inch keyed chuck is the limiting factor. A 0.3mm bit in a half-inch chuck is a length of thin steel gripped by three large jaws, and owners reviewing it for electronics note that it is not ideal for very small PCB work.

Table adjustment and chuck key storage are also basic. Fine positioning for a 0.4mm via on a routed board is slower here than on a micro press with a small table and a fence.

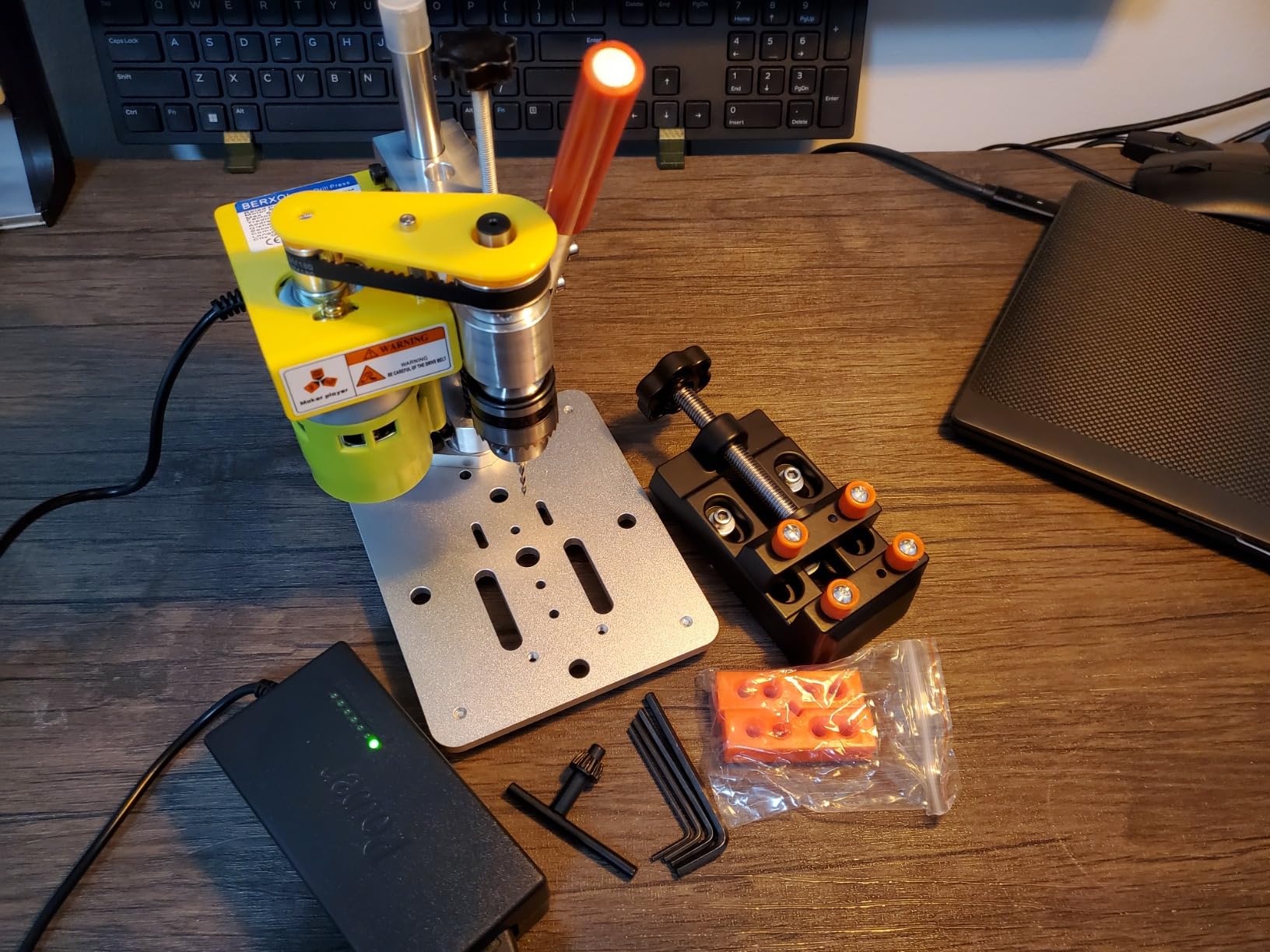

4. BERXOL 795 B10 Mini Press – Best Value Micro Press

The BERXOL uses the same 795 DC motor and 24V adjustable supply as the NovelLife, and shares the three metal axes, two linear bearings and dual spring arrangement. The 40mm stroke is identical. What you give up is the included mini vise and the bit set.

Reviewers describe it as compact, quiet and stable on a bench, and they use it for PCBs, jewelry, wood and soft metal. The B10 chuck takes 0.6mm to 6mm HSS bits, which covers most through-hole drilling.

With the right bit it doubles as a polishing or grinding station, which makes it more versatile than a dedicated press. The expandable base accepts either a mini vise or a CNC sliding table.

Where owners raise eyebrows is the small worktable and the 6mm chuck ceiling. Both are fine for a 100 x 80mm board and both are limiting the moment you move to a larger panel.

Best reasons to buy this one

The motor tops out around 7,000-8,000 RPM, which is the right end of the range for small PCB bits. Higher speeds on a 0.3mm bit increase snap risk, and this machine lets you stay lower.

Owners rate stability highly for a machine of this size, and at 3.5 pounds it is easy to move to wherever the board is.

What to know before ordering

Reviewers are clear it is a soft-materials machine. Hardened metal is out, and the practical ceiling is thin sheet and laminate rather than thick bar.

Since no vise is included, plan on adding one. The base slots are the right size for the common mini vises, so this is a five-minute job rather than a problem.

5. EWANYO Variable Speed Micro Press – Best for Small Bits

The lowest speed floor in this group is 400 RPM, and it is continuous rather than stepped. That is the single feature that matters most for a 0.3mm bit, because a machine that cannot go slow will shatter the bit or tear the laminate edge.

Capacity is 0.3mm to 4mm in wood and plastics, and 1mm to 3mm in soft metal. The JT0 chuck rotates 360 degrees. At 1,050 grams it is the lightest machine here, which matters if your bench space is a shelf.

Owners describe a well-made, stable micro press whose variable speed and solid base suit PCB, resin and model work. The CNC-machined aluminium alloy body is consistently described as feeling well finished for the money.

The thickened solid base is designed to reduce noise and vibration, and reviewers note that it helps accuracy on small holes. That is a real effect at this diameter, where any movement of the table shows up in the hole wall.

Why the 400 RPM floor matters

Surface speed, not spindle speed, is what cuts a hole cleanly. A 0.3mm bit at 4,000 RPM generates far more heat per pass than the same bit at 2,000, and the fiberglass edge is what suffers. A wide low range means you can find the setting where the bit bites.

It is also the best option here for resin, which is far more sensitive to heat than FR-4. The continuous range lets you creep up on a feed rate that a stepped machine cannot reach.

The power ceiling

At 30W this is not a machine for anything structural. Reviewers advise raising the supply voltage for better cutting, within the 3-12V input, and accept slow progress as part of the bargain.

At 44 reviews the owner history is thinner than the machines around it, so the four-star-plus average deserves a proportionately cautious read. The variable speed range is the reason to shortlist it.

6. SKIL DP9505-00 10-Inch – Best for Laser Alignment

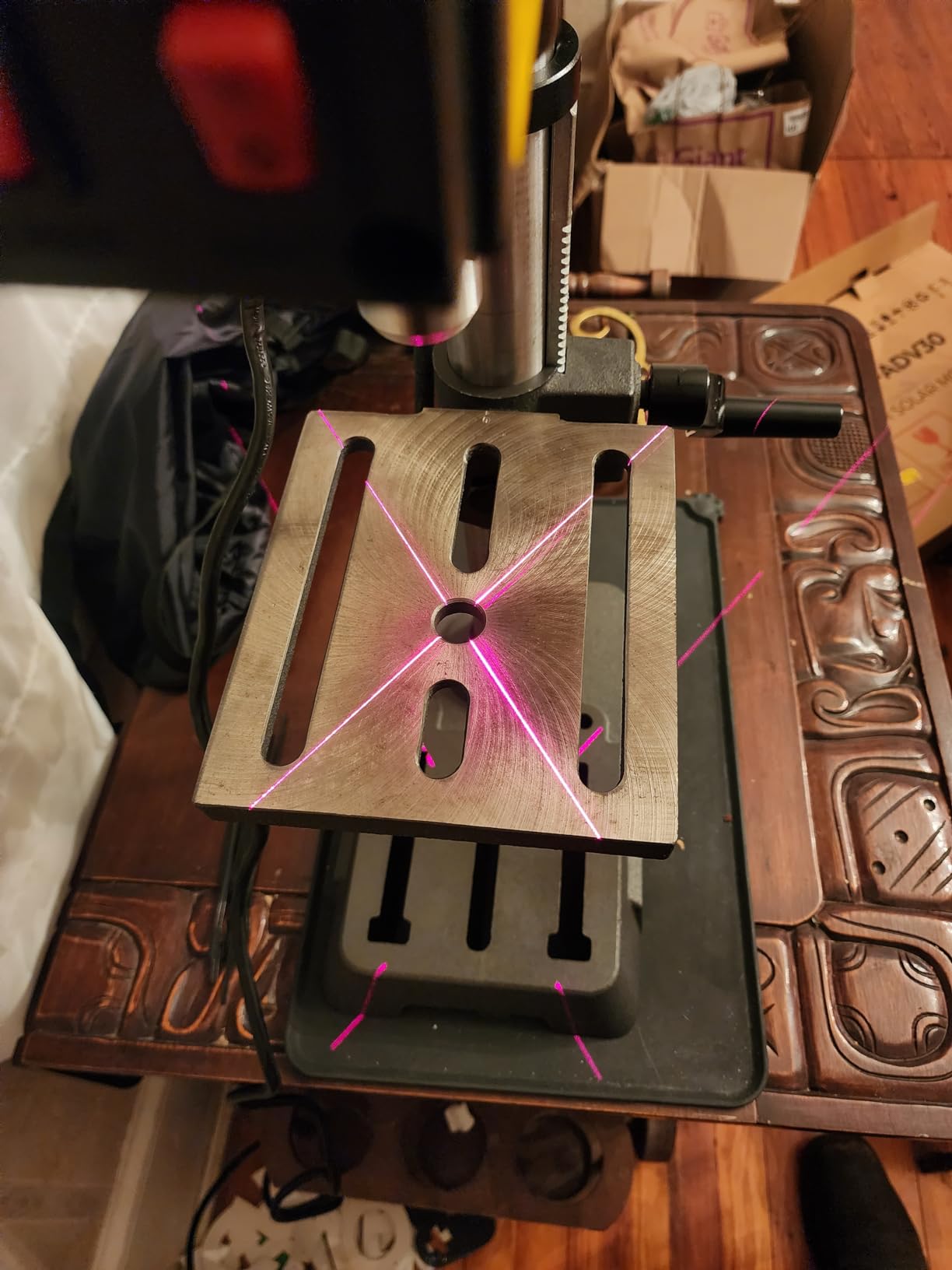

The SKIL is the only machine here with a laser alignment system, and on a 10-inch benchtop press with a height-adjustable table that is a genuine advantage. When the table moves, the laser stays with the spindle, so you re-zero once instead of guessing where the bit went.

Underneath is a 6.2 amp, 744 watt induction motor across five speeds from 610 to 2,800 RPM. The 610 RPM low step is usable for a 0.6mm bit and 2,800 RPM covers larger work.

Owners single out the LED worklight as genuinely useful rather than decorative, and the tilting surface through 45 degrees in either direction covers angled drilling. A bump-off safety switch and a three-year limited warranty round out a well-equipped package.

With 521 reviews this has one of the larger owner bases in the group, and the consensus is that it delivers more power and capability than the price suggests. Owners also report it runs quiet and smooth once assembled and dialed in.

When the laser earns its place

It pays off when you drill the same pattern across a board and want to line it up quickly, or when you are working at night on a small part. The alignment stays useful as the table height changes, which is when a fixed mark stops matching.

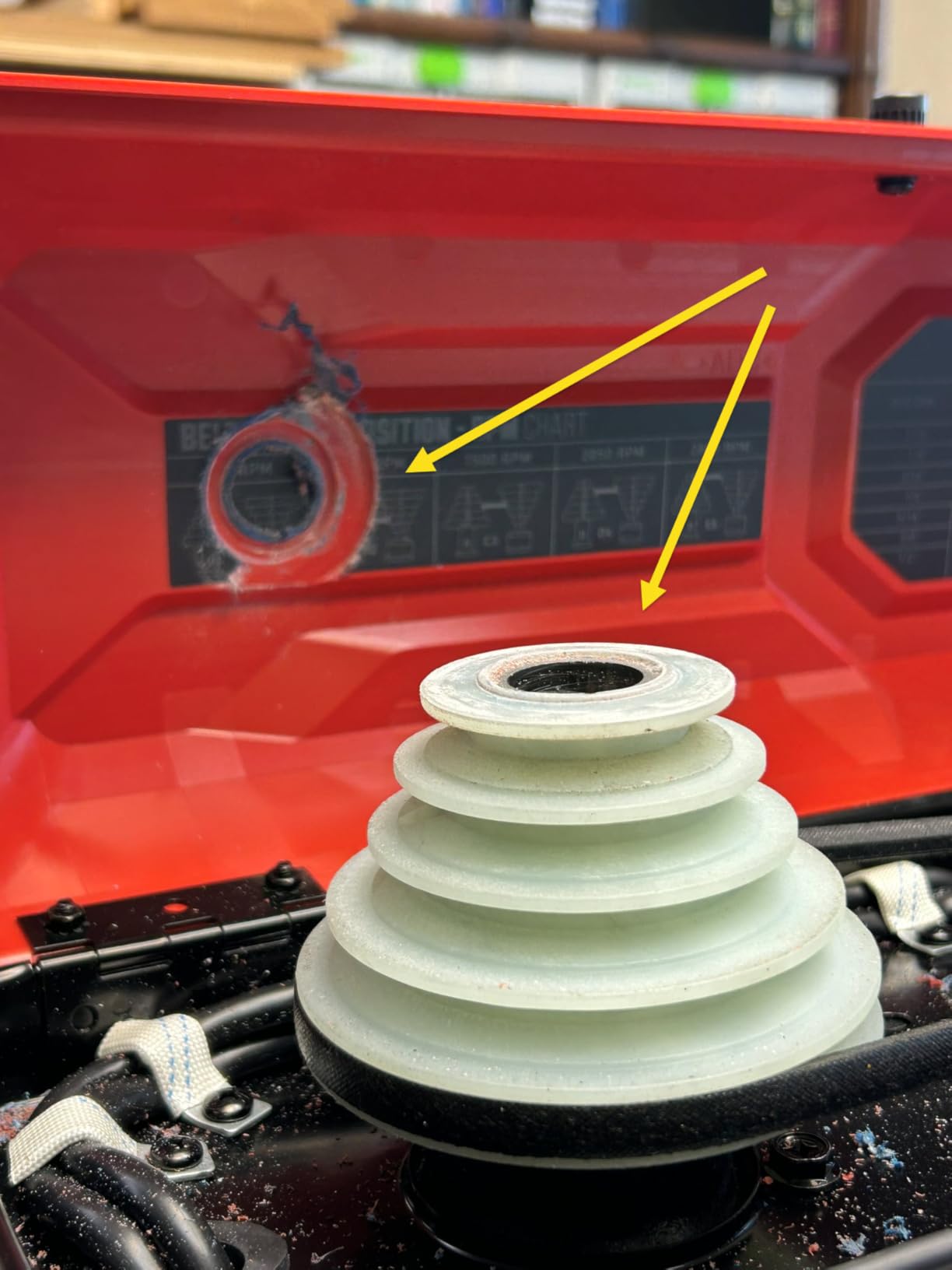

Owners do warn that the laser needs periodic re-dialing and that the table wanders a little during height adjustment. On a large board those two effects partly cancel each other out.

The chuck runout question

This is where honesty matters for a PCB roundup. Reviewers report slight lateral chuck runout on the order of 1/16 inch at full depth. For metal or wood that is invisible; for a 0.5mm hole it is significant.

So the SKIL is a strong choice for drilling boards with larger holes, and a weaker one for sub-millimetre work. The rack-and-column assembly also feels less robust than the specification sheet implies, and some machines arrive with a table that is not zeroed.

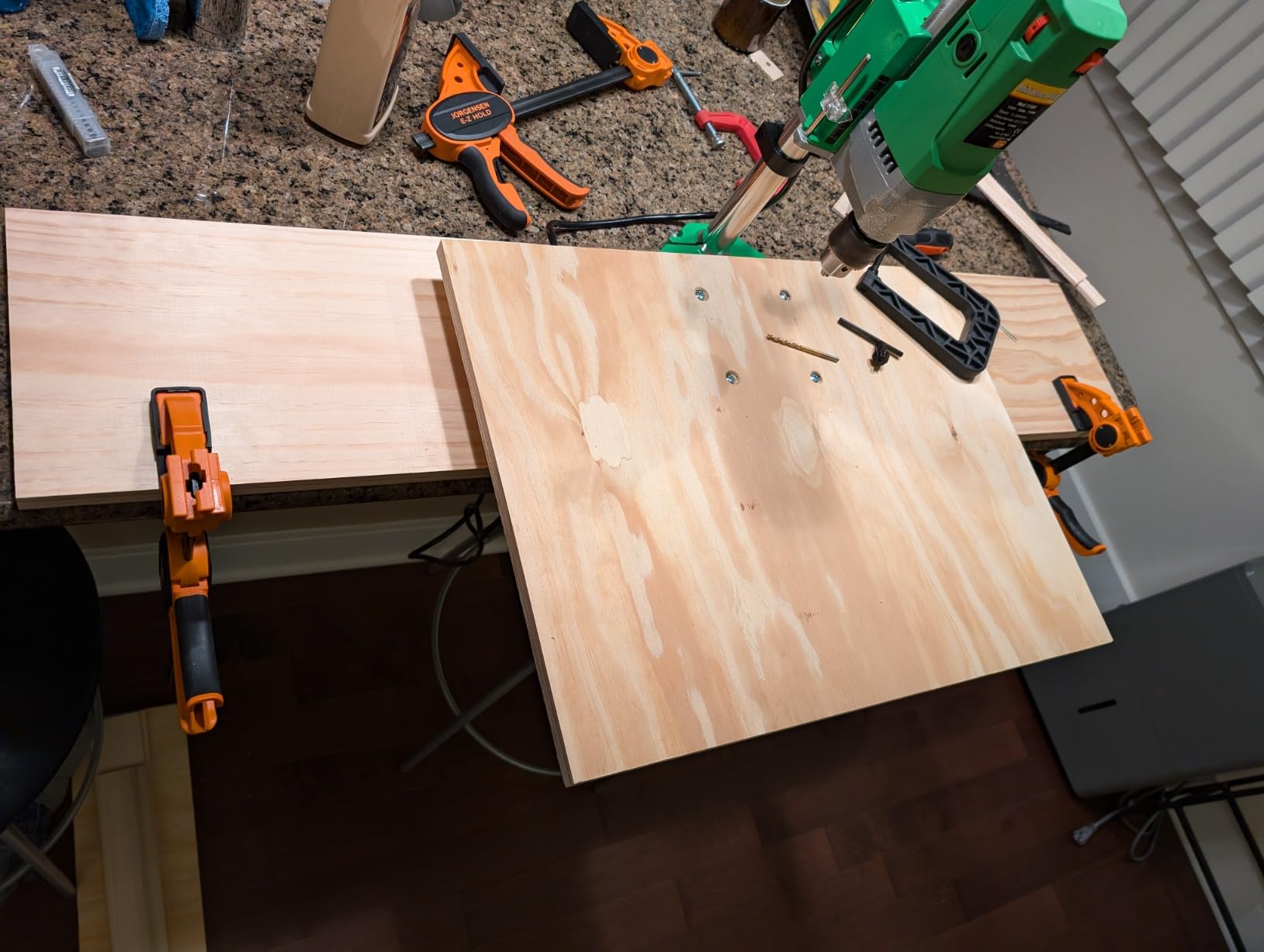

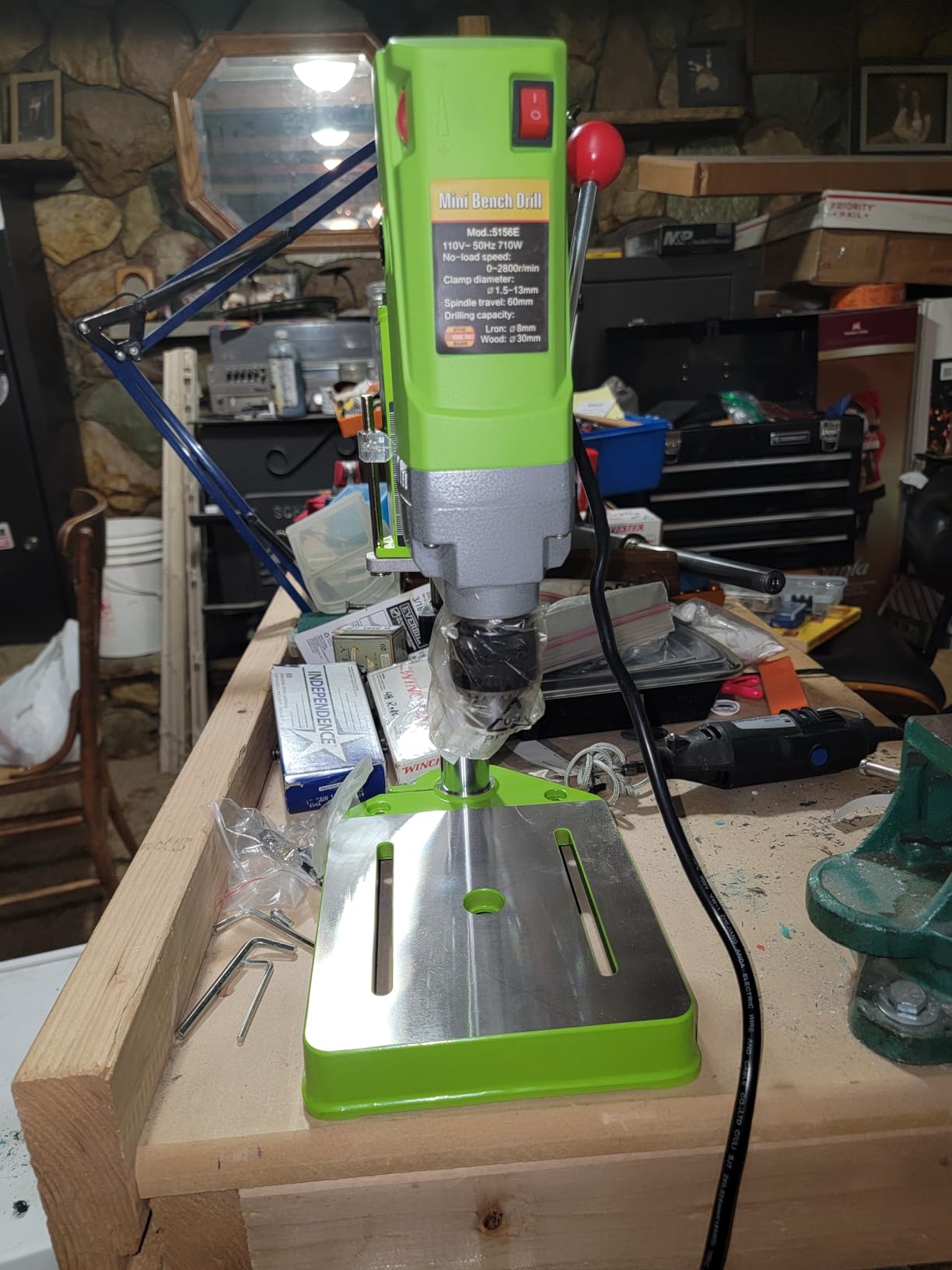

7. BACHIN MINIQ 710W – Best for Rigid Enclosure Drilling

The BACHIN is the odd one out in this group: direct drive, no belt, a 710 watt geared motor and a 1.5-13mm keyed chuck. That is a general shop machine, not a micro press, and its value is that it pairs with a micro press rather than replacing one.

Owners like the combination of portability and rigidity, and use it for brass rivets, PCB-style work, aluminium and thin stainless. The head rotates 180 degrees for drilling from a different angle, and the cast iron base adjusts for depth and head rotation.

At 330 reviews it has one of the larger owner bases here. The most repeated positive is simple: no play at the chuck, and accurate hole placement once the machine is set up properly.

There is also a rear carry handle, which sounds minor until you are moving a machine between two benches, and spare carbon brushes are included.

What it does well on an electronics bench

Drilling 3mm mounting holes in an aluminium enclosure panel is where this machine earns its place. A micro press with a 6mm chuck and a 40mm stroke will do it, but not as quickly and not as rigidly.

No belt means no belt tension to adjust, which removes the single most common complaint in this category. If belt slippage has annoyed you on another machine, that is worth knowing.

Where it will frustrate you

Owners consistently report that the stated low RPM is not accurate and that the actual minimum speed is well above the advertised figure. For a 0.3mm bit that rules it out entirely.

There is a setup step people miss: the head drifts until the vertical track tensioning screws are adjusted. The highly spring-loaded handle is also stiff, and reviewers find the machine loud at the top of its range.

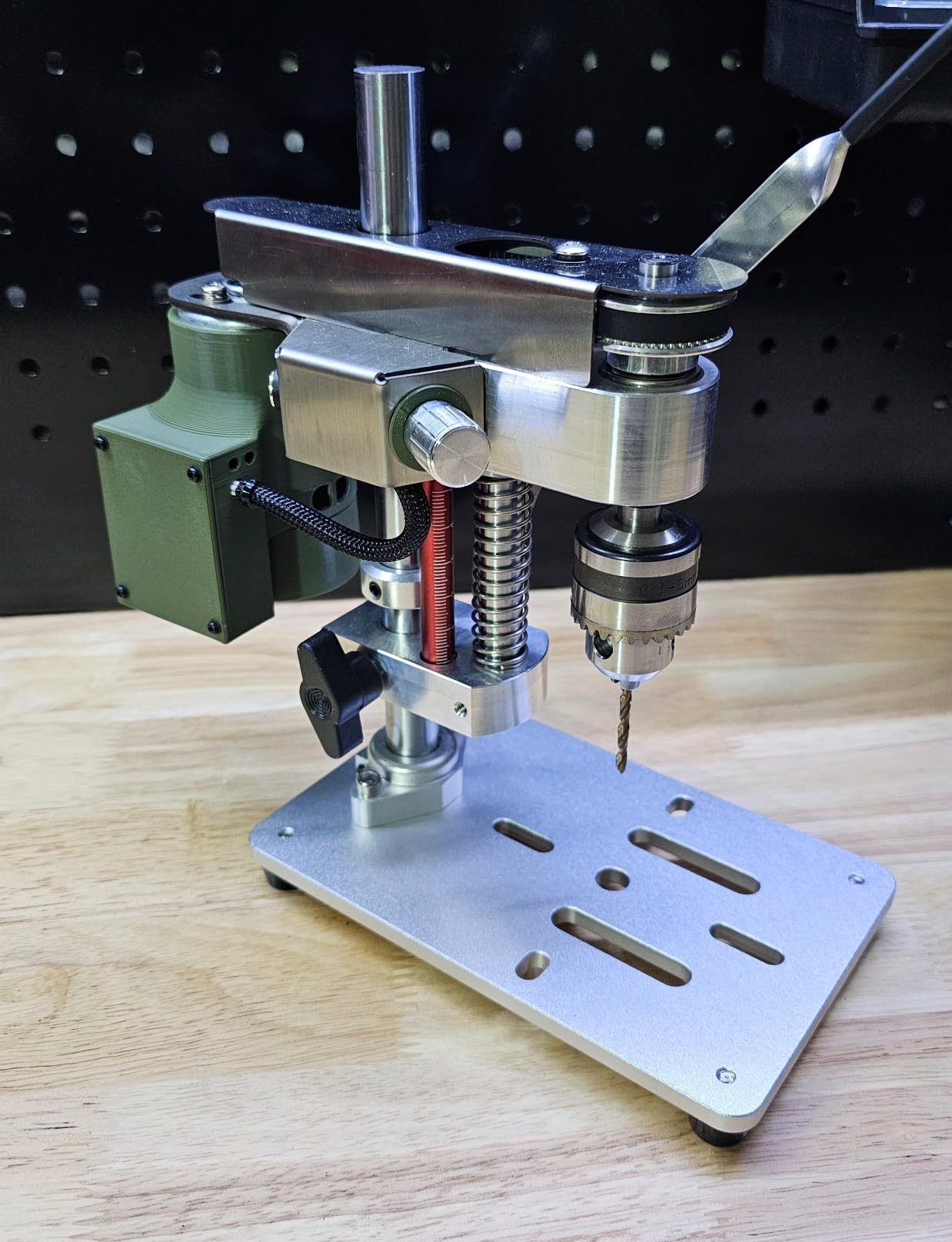

8. MXBAOHENG CLA-218 – Budget Pick With a Work Light

The CLA-218 solves a problem most micro presses leave you to guess at: depth. The 5cm stroke column is marked in red with a locking depth ring, and a work light sits above it so you can see where the bit is relative to the board.

For repeated drilling of the same hole, such as a row of mounting holes, that is more useful than it sounds. You set the ring once and stop thinking about it.

The rear-mounted 795 motor keeps the working area clear, and a belt guard is fitted, which is a sensible inclusion at this level. The metal bench vise has a 1-55mm clamping range, wider than most of the small vises in this group.

Speed regulation runs across seven settings from 12V to 24V, giving 1,500 RPM up to 3,000 RPM. The manufacturer lists PCB drilling among the intended uses, and the B10 chuck takes 1-6mm bits.

Why the lighting and depth scale matter

On a small board the bit disappears below the surface almost immediately, and a hole that goes too deep breaks through into the backer board or a trace on the other side. A scaled column plus a light is a cheap fix for a very common mistake.

The rear-mounted motor also means the head is not in the way when you are looking straight down at a hole to check alignment.

The honest limits

3,000 RPM is the ceiling, which is lower than most machines here. That is fine for a 0.6mm or 0.8mm bit and marginal for anything smaller. One reviewer notes that thin metals need multiple passes and coolant rather than one continuous cut.

Reviewers treat it as a light-duty machine for PCB, balsa, resin, plastic and thin material rather than a general shop press.

9. Hoteche Variable Speed Press – Best for Low-Torque Crafts

The Hoteche is a 100 watt machine with a quarter-inch chuck and three speed settings: 0-2200, 3300 and 5000 RPM. The value of the low gear is torque, and for jewelry, model making and resin work that is exactly the right trade.

Owners who work at hobby scale like the low-speed torque, the compact body and quiet running, and several use it specifically for PCB drilling. The 170 x 170mm table with 23mm spindle travel is small but workable for a single board.

Where the low gear wins

High torque at low speed means a small bit bites instead of skating, and it is the reason this machine is pleasant to work with on soft material. For a 0.6mm or 0.8mm bit in a thin board, the low setting is the setting you will use most.

The 0.6-6.5mm keyed chuck comes with a chuck key, which is rarer at this level than it should be.

Finish quality is the weak point

Owners report dents on the belt cover and motor case arriving, no chuck guard despite advertising one, and no belt tension lever, so tensioning takes a screwdriver.

The motor also runs hot quickly and can smell of burning rubber under sustained load. At 31 reviews this is the thinnest owner base in the group, so treat the specification as indicative rather than settled.

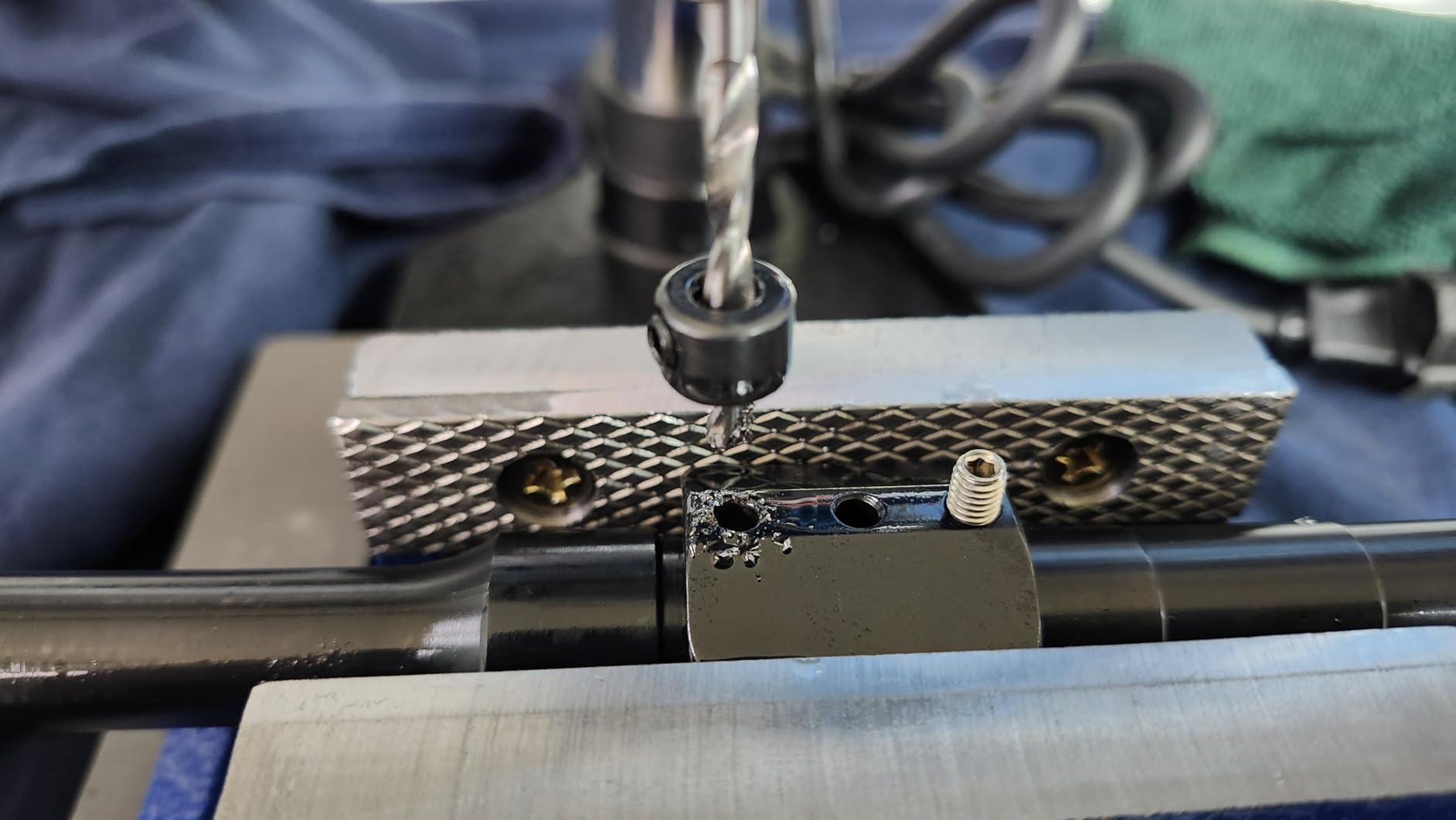

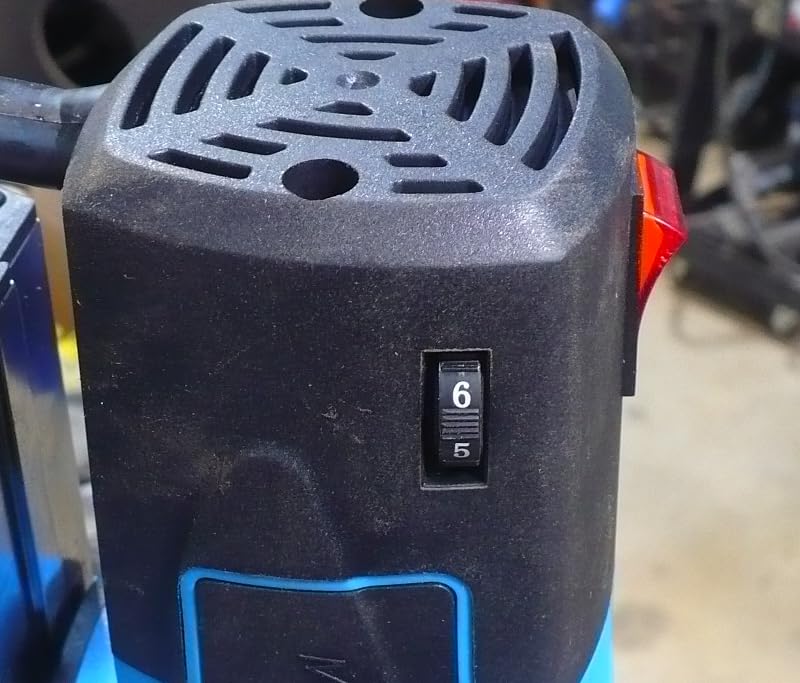

10. bellaDimora Mini Benchtop Press – Best for Mixed Materials

The bellaDimora is the only machine here that switches between drilling and grinding. The head rotates 90 degrees, three extended crank handles lock it firmly, and a 16-piece bit kit covers metal, concrete and wood out of the box.

That versatility is real. Reviewers highlight the unusual power and range for a benchtop machine, and the ability to deburr and sharpen on the same machine is genuinely useful when you are cutting your own bits down to a custom diameter.

At 18 pounds it is heavier than most micro presses, and that mass is a benefit for a 1.5-13mm chuck. Six speeds from 800 to 2,800 RPM cover the range, with a 3.15 inch drilling depth.

Worth noting that the package also includes a vise, a wrench set, a shaft collar, carbon brushes and three handles, which is more in the way of accessories than anything else in this roundup.

When the versatility pays off

If you cut your own bits, a machine that doubles as a grinder removes a separate tool from the bench. Sharpening a 0.4mm PCB drill properly needs a fixture, but a coarse regrind before use takes seconds here.

For thicker material and larger holes the 1.5-13mm chuck is a genuine step up from a B10 chuck. The three-handle lockup keeps the head rigid during a cut.

Where it is the wrong choice

The minimum speed of 800 RPM is the problem for this article’s topic. That is too fast for fine PCB bits, and no amount of feed adjustment fully compensates for a machine that cannot slow down.

Reviewers also note that the 1200 watt figure and the chuck specification look inflated for a benchtop machine of this class, and the grinding wheel is sold separately.

Why a Half-Inch Chuck Woodshop Press Struggles With PCBs

The machines that dominate search results for benchtop drill presses are built for wood and metal, and they are the wrong answer for a circuit board. Three reasons explain the gap, and none of them are about brand.

Runout scales with jaw size. A half-inch chuck grips a 0.3mm bit with three jaws sized for a 12mm opening. The bit can sit off-centre by a fraction of a millimetre and still be gripped. A collet closes on the bit’s actual diameter, so concentricity is defined by the collet rather than the jaw gap.

The speed range is wrong at the bottom. The lowest step on most half-inch-chuck presses is 570 to 750 RPM, and many stepped machines cannot go below that. A 0.3mm bit at 750 RPM generates enough heat at the cutting edge to scorch the fiberglass surface. This is the same problem that shows up when running Mylar too fast, and owners report the same edge damage.

Weight and swing work against you. A 32 pound cast iron base with an 8-inch swing is stability you do not need for a 100 x 80mm board, and it makes the machine awkward to move and to position over a small part. Large swings are for large workpieces.

That is not an argument against buying one. The WEN and the SKIL are strong machines and we include both. It is an argument against buying one instead of a micro press when sub-millimetre accuracy is the goal.

Collet or Chuck: What PCB Drilling Actually Needs

The collet versus chuck question comes up constantly and the answer depends on bit diameter. A collet closes concentrically on the full circumference of the bit; a chuck grips a narrow band on two or three flats.

Below 1mm, that difference shows. A 0.3mm bit gripped by a small precision collet sits true, while the same bit in a 6mm B10 chuck is a longer lever for any jaw misalignment to act on. Above 3mm the difference stops mattering and capacity becomes the deciding factor instead.

Micro presses here typically use a B10 or JT0 chuck accepting 0.6-6mm, which is why reviewers report that a 0.4mm bit still works in them without visible wobble. The Proxxon TBM 115 is the machine in this group built around six steel collets rather than a three-jaw chuck, and that is why it stays the reference for micro work.

One practical compromise worth knowing: buying a machine with a collet spindle and adding a quick-change chuck later. Owners who outgrow their collet set often fit a precision quick-action chuck, and the spindle has to accept one for that to work.

How to Choose a Benchtop Drill Press for PCB Work

Work through these in order and the choice makes itself.

Start with your smallest bit. If it is 0.3mm, you need a collet or a very small chuck and you need a low speed floor. If it is 1mm or larger, capacity matters more than concentricity and a wider machine becomes reasonable.

Check the speed range, not the top speed. Every machine here reaches several thousand RPM. The number that decides small-bit work is the lowest speed. A machine that goes to 5,000 RPM but starts at 800 RPM will frustrate you on a 0.4mm bit.

Treat runout as the headline spec. Runout, also called total indicator reading, is how far the bit tip swings off centre when the spindle turns. It is rarely published by manufacturers, which is why owner reports matter. Ask for a number in thousandths of an inch if you are buying at the top of the range.

Look at quill travel and stroke together. You want enough to pass through the board, a sacrificial layer and a backer board in one pass. A 40mm stroke covers a typical board in one feed; a machine with 23mm of travel, such as the Hoteche, needs two on a thicker stack-up.

Check what holds the work. A tilting table helps with angled drilling. A parallel fence helps with repeated rows. A small vise helps with everything else. If the machine has none of these, you will be improvising, and improvisation is where wander comes from.

Consider the belt and the pulleys. Step-pulley machines with plastic pulleys need periodic tensioning and the plastic wears. A direct-drive machine has nothing to adjust. The Proxxon at the top of the range uses a belt, and its owners report the tensioner as the most common service item.

Weigh the whole machine, not just the base. Mass under the table is what kills vibration. Light machines need a firm base and a sacrificial layer. Heavy machines can be moved once and then stay put.

If you are also shopping for larger bench machines, our guides to the best benchtop band saws and other shop equipment cover the larger-format side of a compact workshop.

RPM and Bit Size Cheat Sheet for PCB Drilling

Pick a speed that gives the bit a workable cutting speed, then feed steadily. The ranges below suit FR-4 board and the HSS micro bits most people start with. If a bit snaps, move down a step. If the hole wall is smeared, move up one.

• 0.3mm bit: 1,000 to 3,000 RPM. This is where runout matters most and where a collet beats a chuck.
• 0.4mm bit: 1,000 to 4,000 RPM. Keep the feed light and the board pinned down.
• 0.5mm bit: 1,500 to 5,000 RPM. The Proxxon TBM 115 reaches 8,500 RPM, so you have headroom.
• 0.6mm bit: 2,000 to 5,000 RPM. Comfortable in most of the machines here.
• 0.8mm bit: 3,000 to 6,000 RPM. A common choice for general through-hole work.
• 1.0mm bit: 3,000 to 7,000 RPM. Below this diameter the chuck question mostly stops mattering.

Material changes things. Fiberglass FR-4 tolerates more speed than Mylar, which owners report tearing at high speed. Thin copper-clad laminate and phenolic need a slower setting and a lighter feed than the numbers suggest.

Two rules cover most failures. Feed into the board at a steady rate rather than pushing, and if the bit starts to squeal or the color of the swarf changes, you are generating heat rather than cutting.

PCB Workbench Setup Essentials

A press is only half of a repeatable hole. What is underneath the bit decides whether the hole is square.

A backer board is not optional. A scrap of hardwood, MDF or waste laminate under the board stops the bit punching through and catching the bench. On a through-hole board it is what stops the exit chip.

A sacrificial layer protects copper. A piece of thin copper or a sacrificial copper-clad offcut on top gives the bit somewhere to land that is not your finished trace. It also stops the board flexing under pressure.

Support the whole board, not just the hole. A board supported at one corner will move as the bit passes through. Small clamps, a sacrificial platform or a proper vise solves this and it is the cheapest accuracy improvement available.

A pin vise is the manual companion. For one or two holes on a single board, a pin vise is faster than setting up a press. Keep one at the bench for alignment checks and for holes too close to an edge to clamp safely.

Keep spare collets and a chuck key at the bench. A collet nicked by a slipped bit is a common reason a machine starts producing off-centre holes, and the damage is invisible until you check the runout.

When You Do Not Need a Drill Press

For a single board with a handful of holes, a pin vise is faster and cheaper. Setup takes longer than the drilling.

A rotary tool in a press stand is the middle option. It gives you a straight descent and it is compact, but the collet runout in a rotary tool is typically worse than a dedicated micro press, and owners moving from a hand-held rotary tool to a press describe the jump in hole quality as the single biggest upgrade they have made.

A CNC mill is the right answer when you need dozens of identical holes. Setup is not a small task, and for one prototype it is not worth it.

The honest test is repeatability. If you drill boards regularly, or build small batches, a benchtop press earns its cost quickly. If you have one board in front of you, start with a pin vise.

Safety: Broken Bits and Flying Debris

A broken micro bit is a genuine hazard, and the failure mode people underestimate is the one where the bit leaves the board. It usually lodges in the workpiece, and sometimes it exits fast enough to embed itself in nearby timber or equipment.

Wear eye protection every time. This is not a formality at 8,500 RPM with a 0.3mm bit, and the cost of a pair of glasses is trivial next to the alternative.

A few habits reduce the risk. Start at a lower speed and work up to the speed the bit wants, keep the feed steady, and never force a bit that is not cutting. If a bit binds in a board, release the spindle load before you change anything.

Hold small parts firmly. A thin board that shifts at speed becomes a projectile, and gloves plus loose cuffs near a high-speed spindle is a poor trade. Keep the work area clear of offcuts so a flying fragment has nowhere to go.

If you work outdoors or handle sharp metal stock as part of your bench work, a good pair of work gloves rated for the task is worth having nearby, though nothing you wear replaces guarding the spindle.

Frequently Asked Questions

Final Verdict: Who Should Buy Which Press

The NovelLife B10 is the best benchtop drill press for PCB work in this group, and it is the one I would buy first. The 795 motor, linear-bearing structure and B10 chuck give you near-zero runout at a size that fits on a normal bench, and the 40mm stroke clears a board plus a backer board in one pass.

Buy the Proxxon TBM 115 instead if your smallest bit is 0.3mm and your board is tightly routed. It is the only machine here built around steel collets and it reaches 8,500 RPM, so the runout question stops mattering.

Buy the WEN 4206T or the SKIL DP9505 if your electronics work shares a bench with wood, plastic or metal. Both are strong, well-reviewed machines with real cast iron mass. Just pair them with a collet chuck or a pin vise for the small holes.

Whatever you choose, put a backer board under the board and a sacrificial copper layer on top. That habit does more for hole quality than the difference between most of the machines in this roundup.
