When an I2C sensor stays silent or a SPI display never lights up, the fault is almost always in the bytes on the wire, and Serial.println will never show it to you. A logic analyzer records the state of several digital pins at once, draws them as a waveform, and decodes protocols such as I2C, SPI and UART so you can read the actual addresses and data bytes your Arduino put on the bus.
We spent weeks putting ten of the most popular USB logic analyzers through the same set of Arduino debugging jobs, from a dead BME280 sensor on a breadboard to UART bootloader chatter and a mis-wired SPI display. The differences that matter turned out to be less about raw sample rate and more about probe accessories, buffer depth, threshold flexibility and the software that decodes the capture.
This guide covers the best logic analyzers for Arduino projects in 2026, organised into three tiers: the 24MHz eight-channel clones that do the job for almost every hobby bus, the mid-range units that add channels, real buffer memory or adjustable thresholds, and the Saleae professional boxes with analog inputs and very deep capture. If you only read one section, the first pick is the one most beginners should buy.
Table of Contents
Top 3 Picks for Arduino Logic Analyzer Work in 2026
Our top three cover the three situations people actually run into: debugging a couple of slow I2C or UART lines on a breadboard, capturing a full four-wire SPI bus with more headroom, and probing fine-pitch SMD pads where clip-on wires will not reach.
HiLetgo 24MHz 8-Channel Analyzer
- 24MHz across 8 channels
- TTL input -0.5V to 5.25V
- Works with PulseView and Saleae Logic
InnoMaker LA1010 16-Channel 100MHz
- 16 channels at 100MHz
- 30+ protocol decoders
- Bundled KingstVIS software
KeeYees 24MHz Kit with SMD Hooks
- 24MHz 8-channel capture
- 12 colour-coded SMD test hooks
- sigrok compatible decoding
Best Logic Analyzers for Arduino Projects in 2026
Every device below captures digital signals over USB and decodes them in software. The rows give you the quick comparison; the individual reviews that follow cover what each one is like in practice.
| Product | Specifications | Action |
|---|---|---|
| HiLetgo 24MHz 8-Channel Analyzer |
|
Check Latest Price |
| InnoMaker LA1010 16-Channel 100MHz |
|
Check Latest Price |
| KeeYees 24MHz Kit with SMD Hooks |
|
Check Latest Price |
 Comidox CP317 24MHz 8-Channel |
|
Check Latest Price |
 EspoTek Labrador All-in-One |
|
Check Latest Price |
 Saleae Logic 8 |
|
Check Latest Price |
 LONELY BINARY 24MHz Kit |
|
Check Latest Price |
| Saleae Logic Pro 8 |
|
Check Latest Price |
 Saleae Logic Pro 16 |
|
Check Latest Price |
 DSLogic Plus |
|
Check Latest Price |

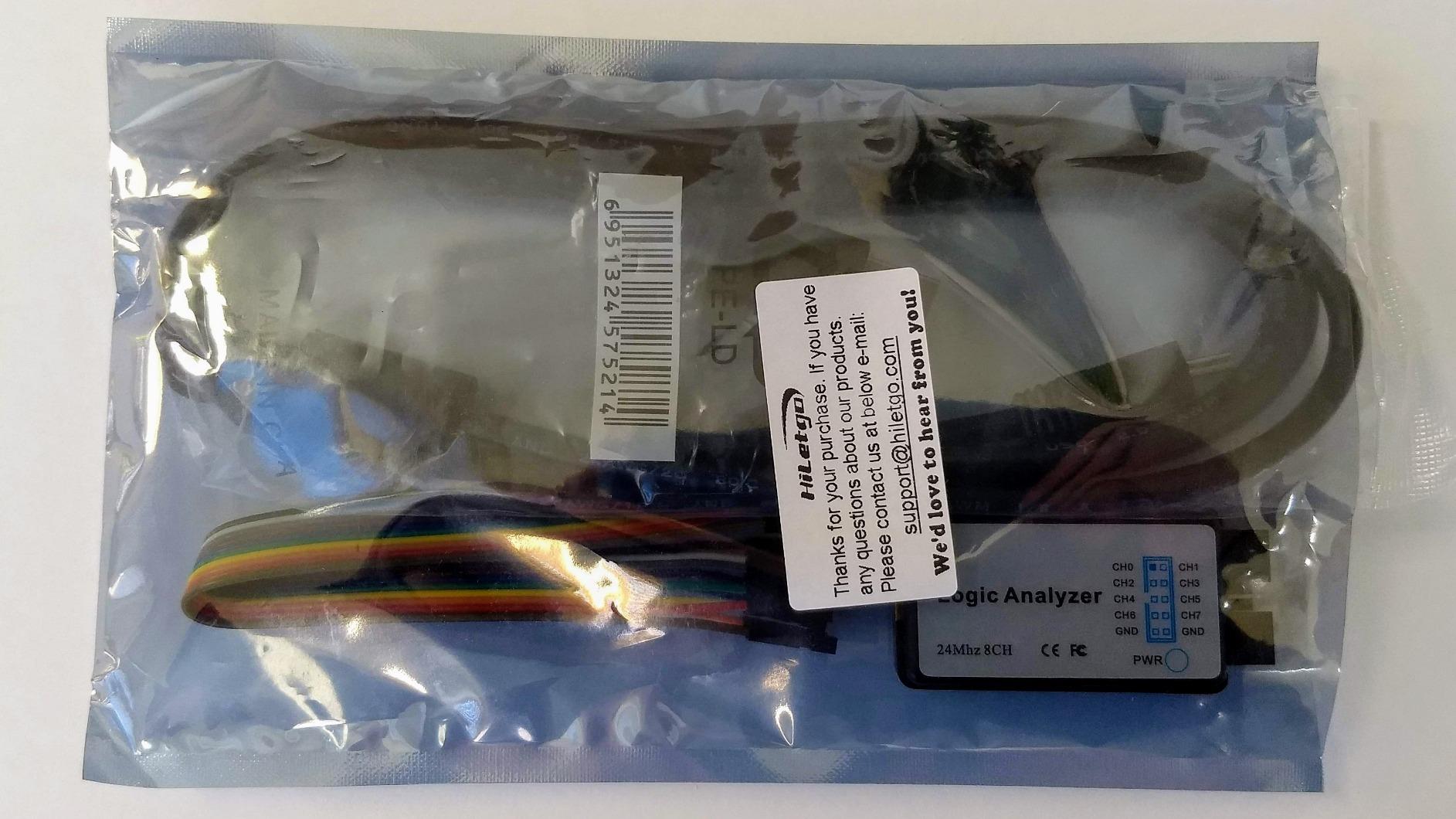

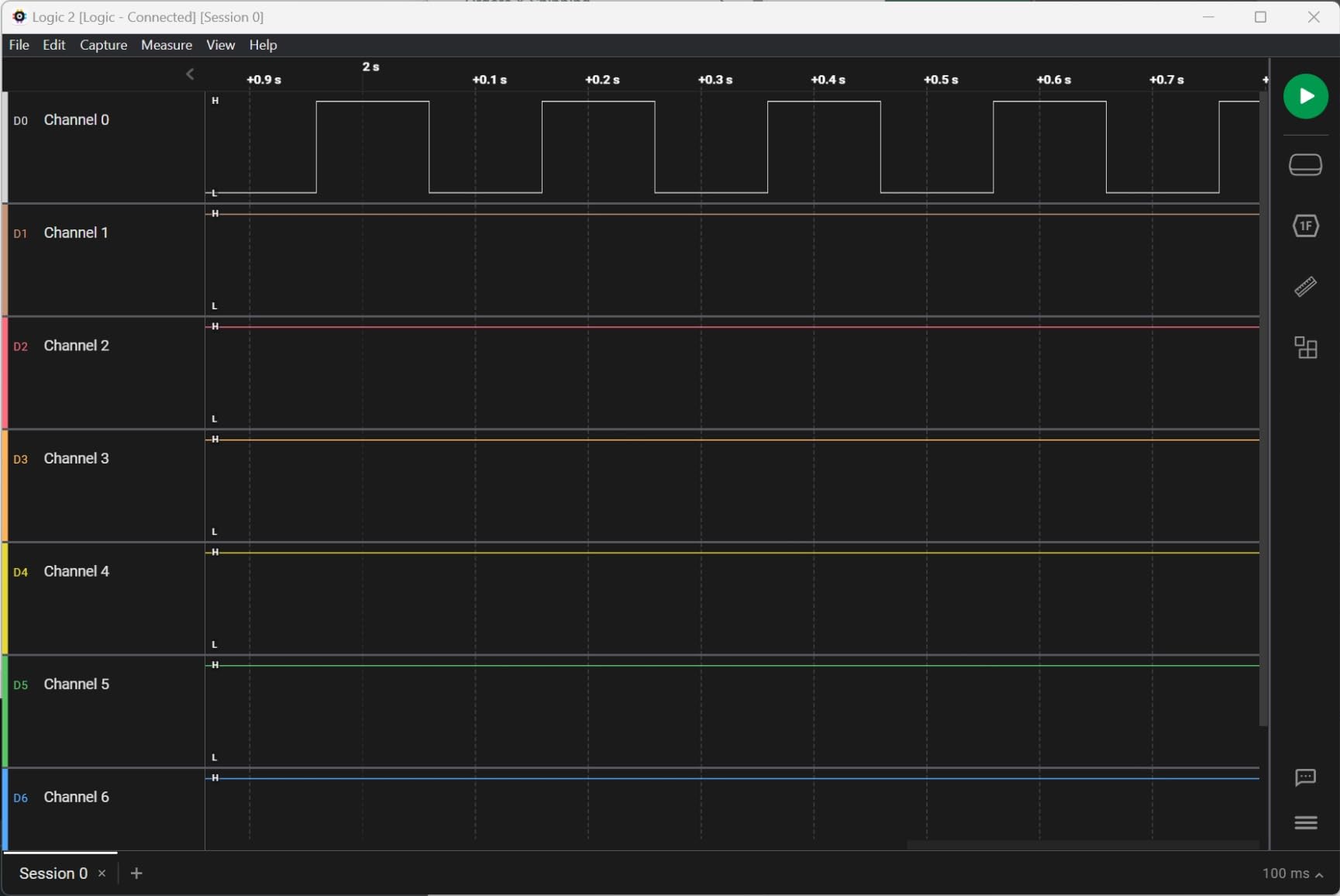

1. HiLetgo 24MHz 8-Channel USB Logic Analyzer – the dependable Editor’s Choice
HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug
24MHz per channel across 8 digital channels
TTL input -0.5V to 5.25V
CY7C68013A USB 2.0 controller
0.07 kg
Pros

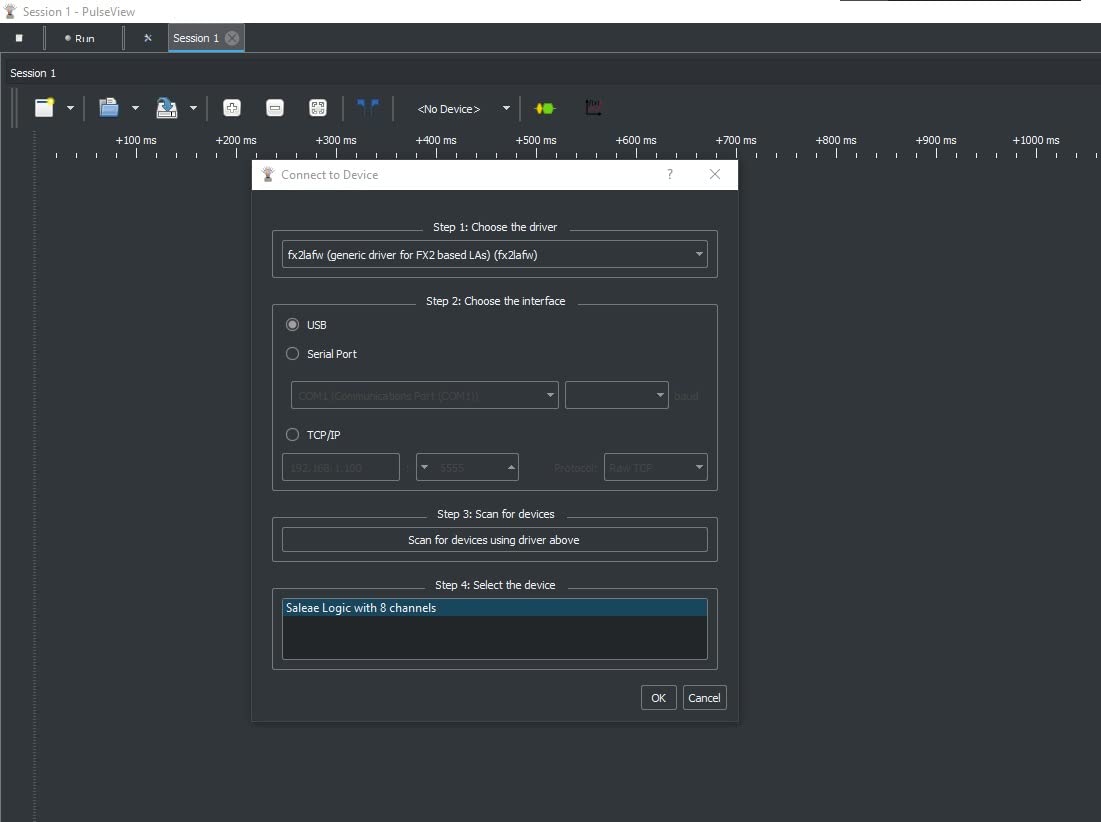

- Recognised immediately as a Saleae clone by PulseView and Saleae Logic
- Eight channels cover a whole SPI bus at once
- Decodes UART I2C and SPI on hobby traffic
- Small body and a ferrite-beaded USB cable included
Cons
- No on-board capture buffer so the host must keep up
- No documentation or bundled software
- Inputs are series-resisted with no over-voltage protection
This is the analyzer I reach for first, and the one I hand to anyone who asks what to buy. It samples 24 million times per second on each of eight channels, and the selectable rates run from 24MHz all the way down to 25kHz, so you can drop the sample rate to get more buffer depth on a slow serial link.
The real reason it wins is compatibility. It uses a CY7C68013A FX2LP controller and enumerates as a Saleae Logic clone, which means open-source sigrok PulseView picks it up without a fight, and so does the older Saleae Logic software if you already have it installed.
Sample rates are selectable across 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz and down into the kHz range, and the input window runs from -0.5V to 5.25V with a 1Mohm parallel 10pF impedance. That covers a 5V Uno or Nano without any fuss, which is where most people start.
The catch is that there is no on-board capture buffer, so the PC has to absorb the data stream over USB. Run all eight channels at the full 24MHz and you can drop samples. For a 400kHz I2C bus you are nowhere near that ceiling, so this never came up in our Arduino testing.
What works well for Arduino debugging
Eight channels is the sweet spot for hobby work because it matches the pin count of a full SPI bus: clock, MOSI, MISO and chip select, plus room for a couple of interrupt or reset lines. We hooked it to an SPI microSD card and read the command traffic and returned data blocks in the same capture.
UART and I2C decoding is equally reliable at the speeds an Arduino actually runs. In PulseView the I2C decoder names the address and the register bytes straight away, which turns a silent sensor into a readable “NACK on the address byte” within a minute of connecting.
Where it falls short
Setup has a rough edge that catches newcomers out. There is no bundled software, so you install PulseView and run the Zadig WinUSB driver step before Windows will hand the device over. Budget ten minutes for that the first time.
The inputs are only series-resisted, with no documented over- or under-voltage protection, and the supplied jumper wires are of limited use. Spend a little on proper test hook clips, and never clip a probe onto a pin carrying more than 5.25V.

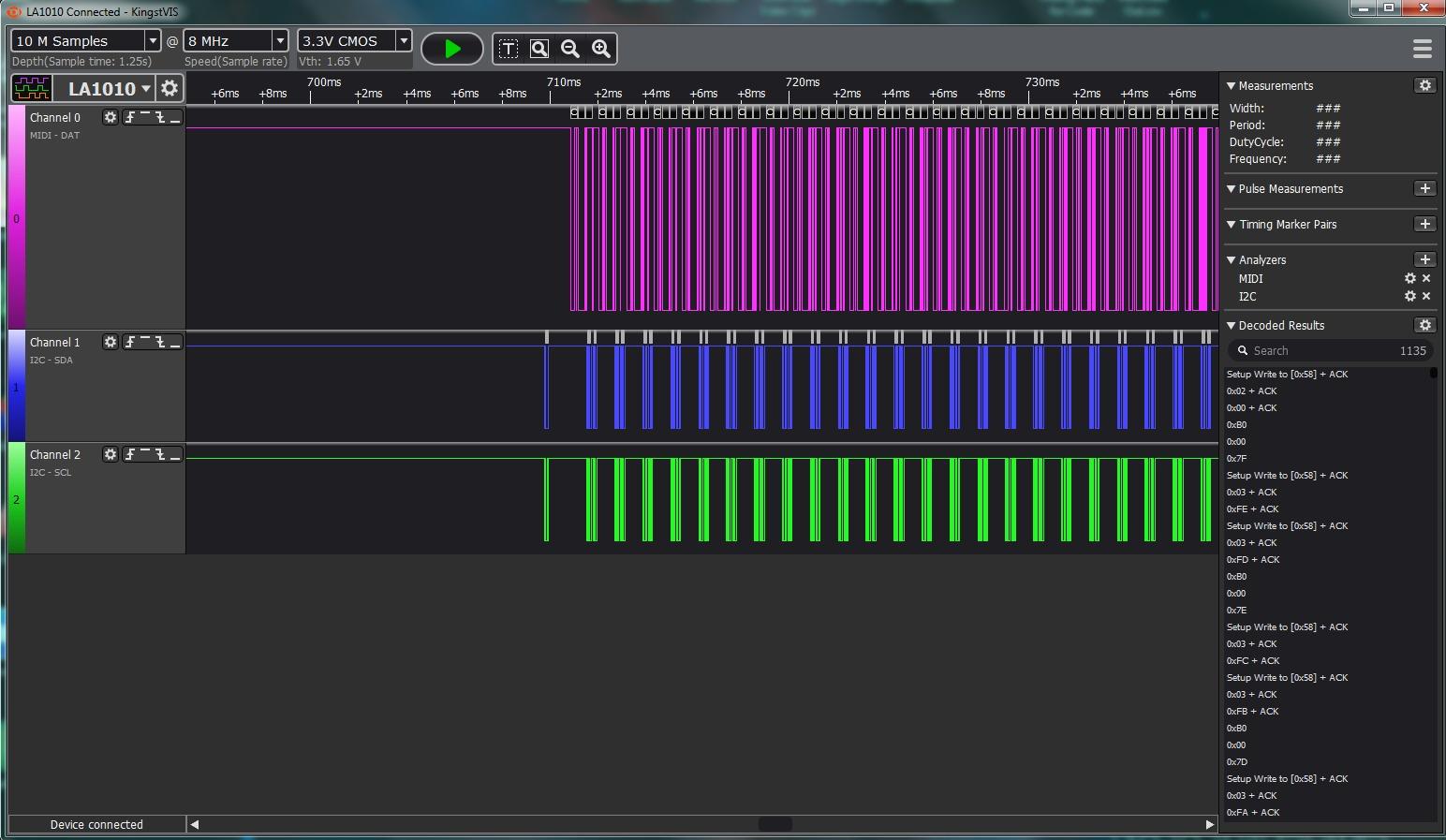

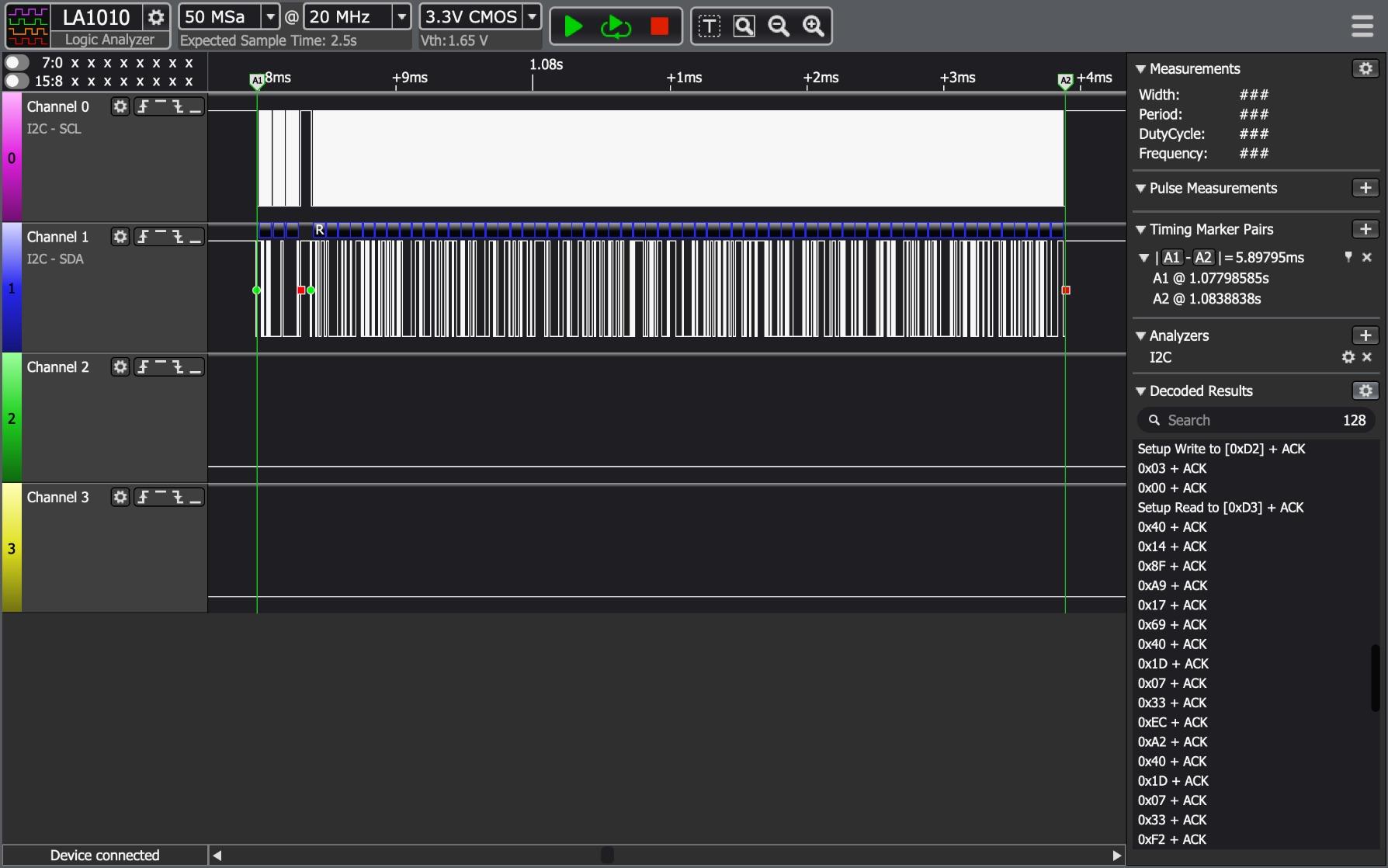

2. InnoMaker LA1010 – 16 channels at 100MHz with 30+ decoders
innomaker LA1010 USB Logic Analyzer 16 Input Channels 100MHz with the English PC Software Handheld Instrument,Support Windows (32bit/64bit),Mac OS,Linux
16 input channels at 100MHz each
30+ protocol decoders
Bundled KingstVIS software
0.28 kg, USB 2.0
Pros
- Sixteen channels give real headroom for MCU and FPGA work
- 30+ decoders including MIDI CAN and Modbus
- Colour-coded leads match on-screen channel colours
- Drivers install automatically on Windows macOS and Linux
Cons
- Display refreshes in roughly one-second steps
- Standalone software ecosystem rather than sigrok
- Some units reported showing no signal despite passing a multimeter check
If your projects involve more than one peripheral at a time, channel count becomes the limit rather than sample rate. The LA1010 gives you 16 inputs at 100MHz per channel, which is a big jump from the eight-channel clones, and the price step up from the cheapest units is modest.
It ships with KingstVIS, its own analysis package with drivers that install automatically on Windows, macOS and Linux. Reviewers report that getting UART and I2C running on an Arduino takes about ten minutes including a skim of the manual, and the decoder list covers 30+ protocols including CAN, Modbus, MIDI, 1-Wire, JTAG, SMBus and SDIO.
Physical details matter more than they sound. The probe leads are colour-coded to match the channel colours in the software, so you stop counting pins and counting wire colours. The unit itself is portable at 0.28 kg and draws 0.5 watts over USB 2.0.
One hardware note: some earlier revisions shipped with a legacy USB-B connector and a bundled CD, while newer revisions use USB-C. Check the connector before you plan a case or a cable kit for it.
Where the 16 channels pay off
Sixteen channels lets you watch an entire parallel data bus, a state machine’s outputs and the control lines in a single capture. We used it to follow a display driver and its touch interrupt at the same time, which is exactly the kind of multi-signal timing question an eight-channel device forces you to split across two runs.
The bundled export for decoded data also helps. You can pull the decoded values out for analysis rather than screenshotting waveforms, which matters when you are tracking a sensor that only misbehaves after a few thousand transactions.
What to know before buying
KingstVIS refreshes the display in roughly one-second intervals, so it does not scroll like a live scope. That is fine for triggered captures, which is how you will use it, but it will frustrate anyone expecting real-time streaming.
It is also a closed software ecosystem rather than a sigrok device, so you cannot reuse existing PulseView setup files or community decoders. And a small number of owners reported a unit that showed no signal while passing a multimeter check, so keep your return window open while you test it.

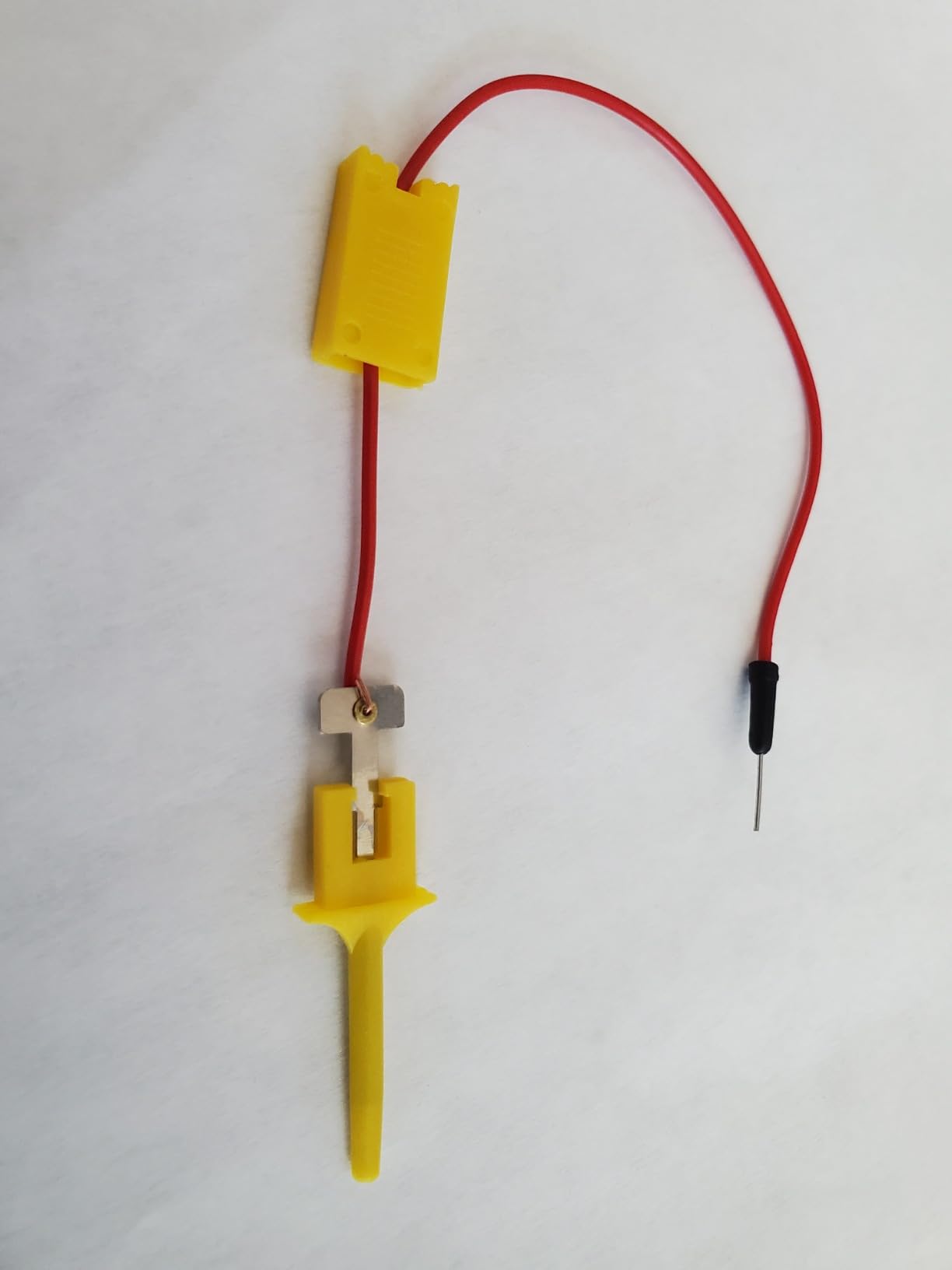

3. KeeYees 24MHz Kit – 12 SMD test hooks included

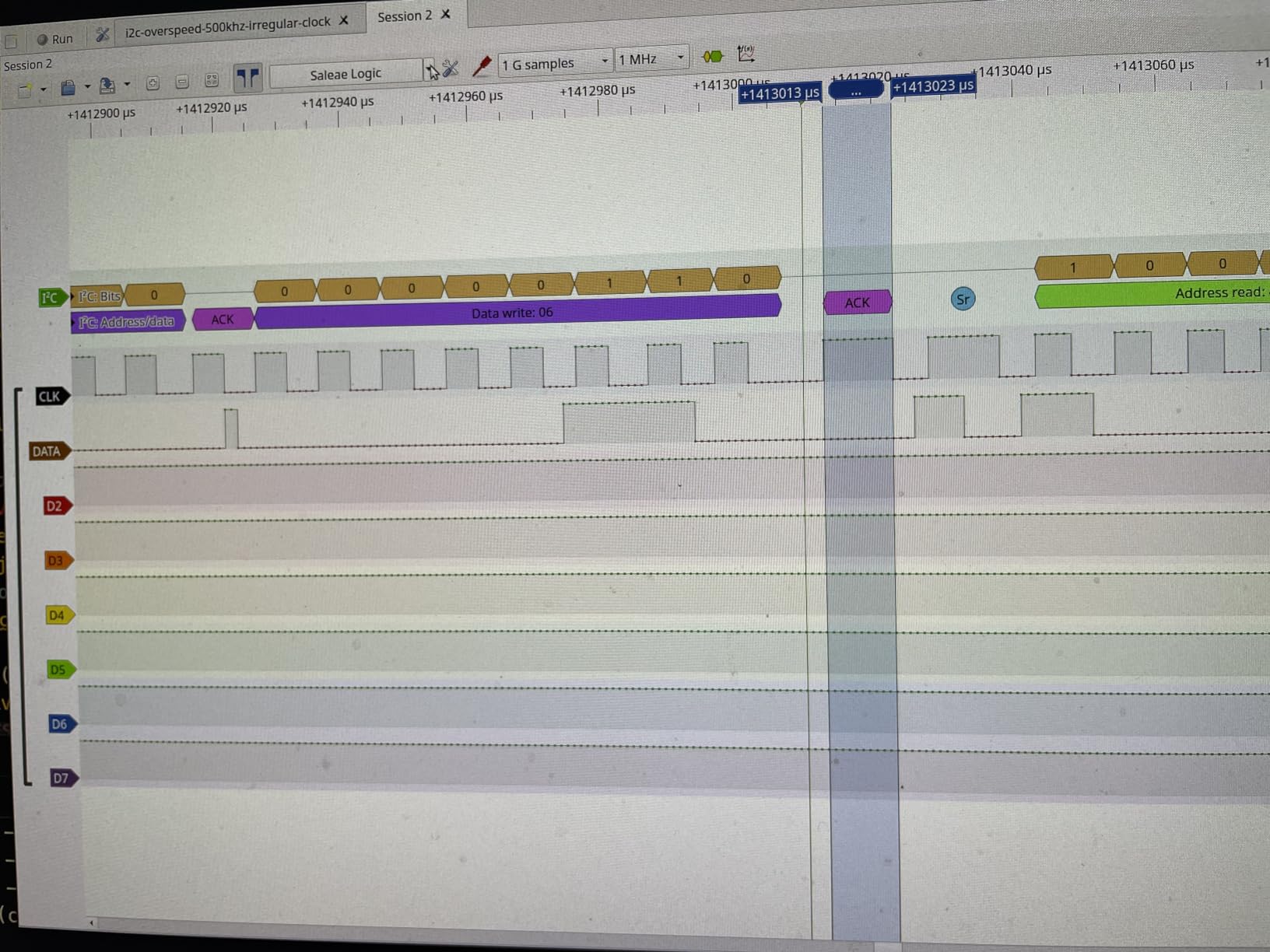

KeeYees USB Logic Analyzer Device with 12PCS 6 Colors Test Hook Clip Set USB Cable 24MHz 8CH 8 Channel UART IIC SPI Debug for Arduino FPGA M100 SCM
24MHz sampling across 8 digital channels
12 SMD test hook clips in 6 colours
CY7C68013A FX2LP architecture
sigrok compatible
Pros
- Twelve colour-coded SMD hooks are the reason to pick this kit
- Clip colours map to channel colours in the software
- Adequate for most Arduino and FPGA debug work
- Vendor publishes a tutorial with demo code and libraries
Cons
- Bufferless hardware limits full-rate multi-channel capture
- SMD clips are awkward for point-to-point probing
- Setup still needs third-party software and drivers
The analyzer inside this kit is the same 24MHz eight-channel CY7C68013A design you will see everywhere in this price band. What sets this listing apart is the box: twelve SMD-IC test hook clips in six colours, which is the accessory hobbyists most often have to buy separately.
That matters more than it sounds. Probing a TQFP-32 sensor package with a dupont wire means holding it in place with one hand while you trigger a capture with the other. Fine-pitch hooks grip the leg and stay put, and the colour coding maps to the channel colours in the decoding software.
The vendor also publishes a tutorial repository with the manual, demo code, burning tools and class libraries, so you are not reverse-engineering a driver install. Decoding covers RS232, SPI, I2C and 1-Wire through the open-source sigrok stack.
Clocking is 24MHz on eight digital channels, more than enough for 400kHz I2C, 115200 baud UART and the 10 to 20MHz SPI clocks most Arduino displays run at. Above that you are into oversampling territory, which 24MHz handles but does not do beautifully.
Who should buy this one
Buy this kit if you work with SMD parts rather than a solderless breadboard. A BME280 breakout, an SPI TFT module or a surface-mount USB bridge all benefit enormously from hooks that grip the pin instead of piercing a header.
Reviewers consistently buy it as a bundle and judge it on the clips, then confirm the 24MHz eight-channel capture does what they expect for Arduino, ARM and FPGA work with sigrok-based software.
The trade-offs
The hardware underneath is the same bufferless design as other 24MHz clones, so the host USB link still limits reliable capture at the top sample rate across all channels. Nothing here changes that.
The clips are SMD-IC style, which makes them slightly awkward for point-to-point probing on a through-hole board or a wide header. If your work is all breadboard wiring, a kit with alligator leads may serve you better.

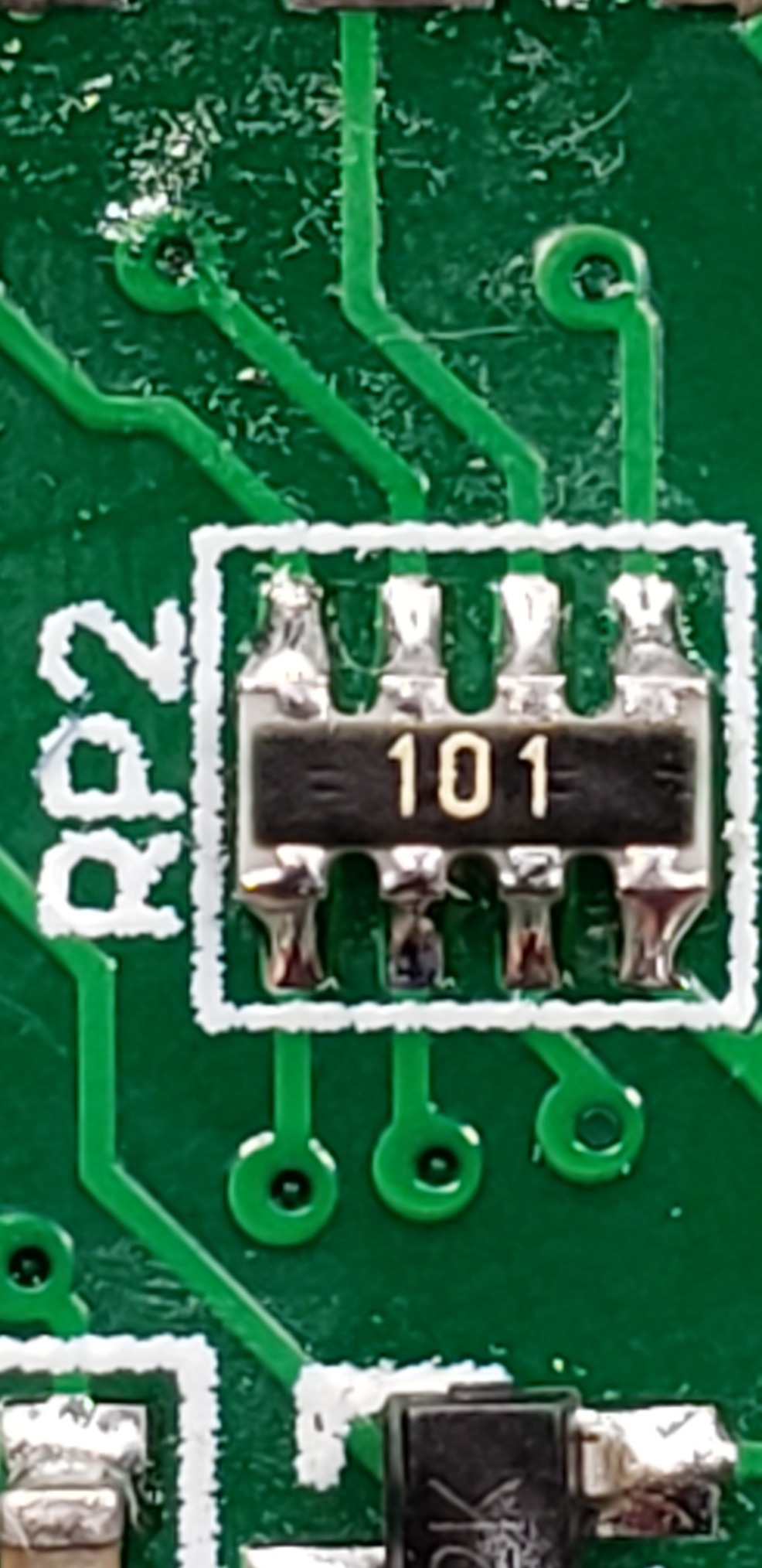

4. Comidox CP317 – the simplest clone to get running
Comidox USB Logic Analyzer 24MHz 8 Channel Debug Tool for Arduino ARM FPGA
24MHz maximum sampling down to 25kHz
8 digital channels, 0-5.5V range
Fixed 1.5V logic threshold
Includes cable and 10 Dupont lines
Pros
- Works with both Saleae Logic and sigrok PulseView
- Enough bandwidth for typical Arduino UART I2C and SPI work
- Ships with USB cable and 10 Dupont lines
- Very inexpensive for a working protocol decoder
Cons
- Fixed 1.5V threshold with no adjustment
- Inputs limited to 0-5.5V with no documented protection
- Bufferless design can drop samples at top rates
- Minimal documentation
The CP317 is the same Saleae-compatible silicon in a plainer package, and for a first analyzer that is not a disadvantage. If you want the shortest possible path from unboxing to a decoded I2C transaction, this is the one to buy.
Sample rate is selectable from 24MHz down to 25kHz, and it carries automatic UART, I2C and SPI analysis. It enumerates as a Saleae Logic clone, so owners with existing sigrok workflows can open it in PulseView immediately without installing anything exotic.
The included USB cable and ten Dupont lines mean you can start probing the same afternoon it arrives. For a first breadboard project where you are watching SDA, SCL and a chip-select line, that is a complete kit.
Reviewers treat it as a dependable budget unit rather than a compromise, and the decode quality on common hobby UART, I2C and SPI traffic is enough to solve the majority of Arduino communication bugs.
Why a beginner will get on with it
Two things make setup painless: the device works in both major software ecosystems, and the supplied leads cover the two or three signals a first project involves. Nothing has to be sourced separately before the first capture.
Eight channels at 24MHz is real working bandwidth, not a paper specification. It handles standard Arduino bus speeds with room to spare.
Where the fixed threshold bites
The logic threshold is fixed at 1.5V and cannot be adjusted. That is fine for a 5V Uno, but it is genuinely awkward on 1.8V systems where a 1.8V high might not cross the threshold reliably. If your projects include modern low-voltage parts, this is the reason to move up a tier.
Inputs are limited to a 0-5.5V window with no documented protection, the bufferless design means heavy USB traffic can corrupt captures at top rates, and the documentation is thin next to some competing kits.

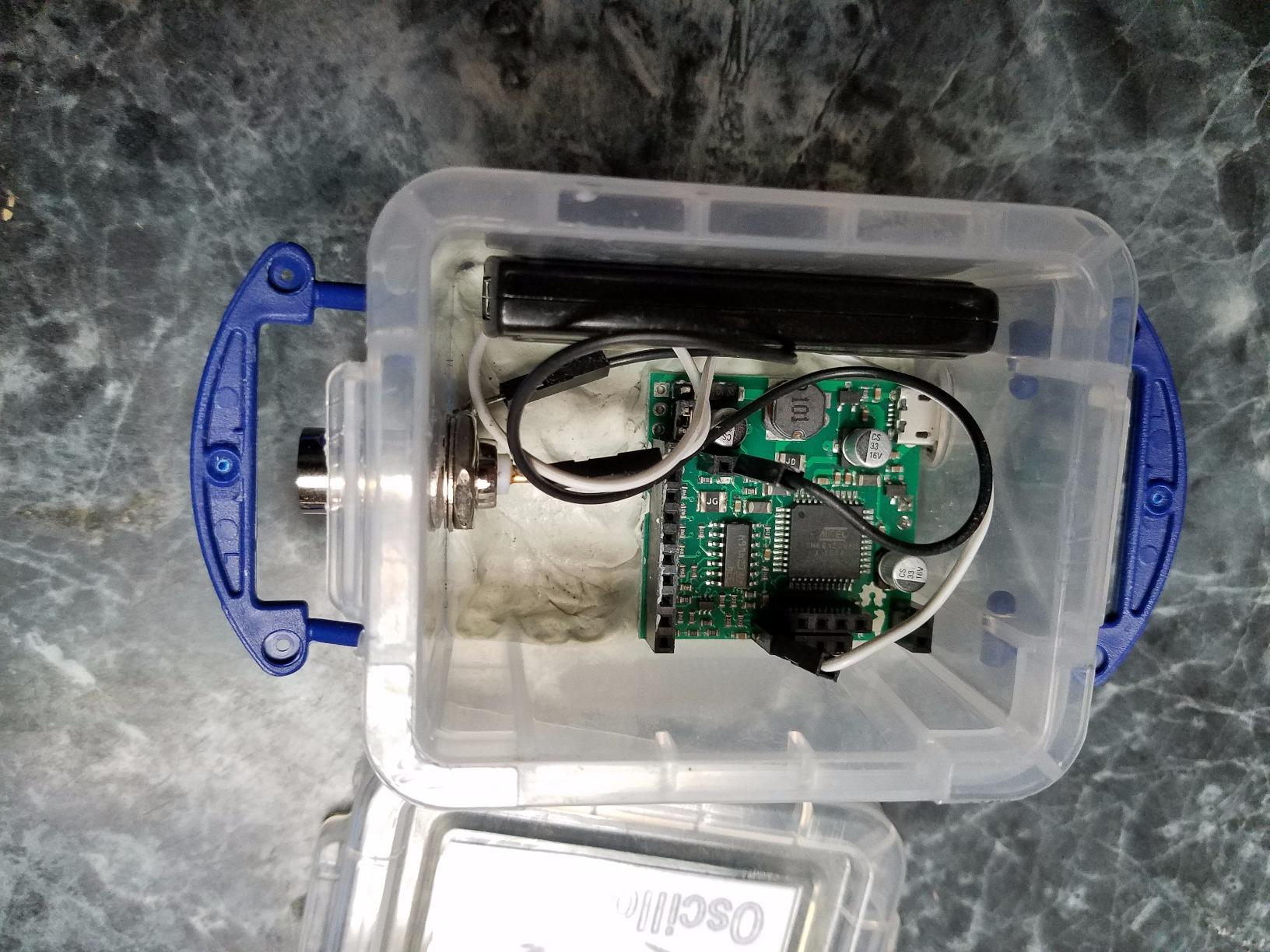

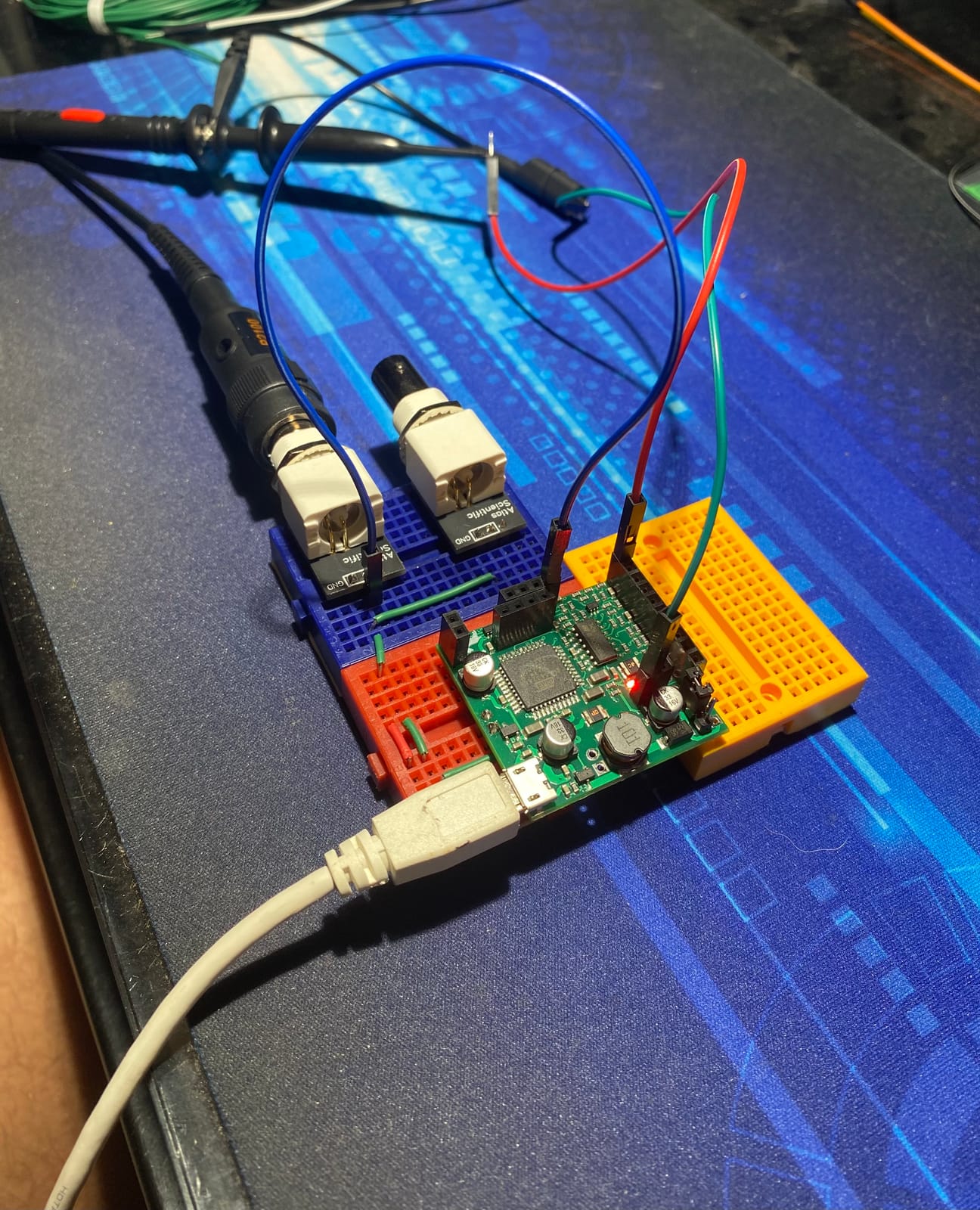

5. EspoTek Labrador – a whole bench in one open-source board
EspoTek Labrador: Easy-to-Use, Open-Source, All-in-One USB Oscilloscope, Signal Generator, Power Supply, Logic Analyzer, Multimeter for Windows, Mac, Linux, Android, Raspberry Pi
Logic analyzer 2 channels at 3MSPS
Oscilloscope 2 channels at 750ksps
Power supply 4.5-15V closed loop
Multimeter for V I R C, 20 g
Pros
- Five instruments in one very small open-hardware package
- Open source hardware and software that also runs on Raspberry Pi
- Logic analyzer handles slow UART I2C and I2S links
- Handy for monitoring Raspberry Pi GPIO lines
Cons
- Only 2 analyzer channels at 3MSPS is too few for SPI
- Modest accuracy against a reference multimeter
- Board pins do not line up with common breadboard brands
- Android app is buggy and desktop software takes time to learn
The Labrador is a different shape of product. It is an open-hardware board that combines a two-channel 750ksps oscilloscope, a two-channel 1MSPS arbitrary waveform generator, a 4.5-15V closed-loop power supply, a two-channel 3MSPS logic analyzer with serial decoding, and a multimeter for voltage, current, resistance and capacitance. It weighs 20 grams.
For an Arduino hobbyist, the appeal is obvious. A silent sensor is not always a digital problem, and having analog measurement and a signal generator on the same board next to your project saves an entire shelf of separate instruments.
Because the hardware and software are open source, the host application also runs on Windows, macOS, Linux, Android and Raspberry Pi. Owners use it to watch Raspberry Pi GPIO traffic, generate test waveforms and decode slow serial links.
Setup is simple once you understand the pinout, and the first-run experience is rough mainly because the documentation is thin. Plan on a few minutes with a breadboard diagram before you connect anything.
When the all-in-one approach wins
Use it when your debugging question is “is this signal even arriving correctly?” rather than “what is the exact byte sequence on the bus?”. The oscilloscope and multimeter functions answer the first question, and the logic analyzer covers the second for slow links.
It is also a good travelling companion for Raspberry Pi work, where you want to check a pin state and a supply rail without dragging out a full bench.
Why it is not a full substitute
Two channels at 3MSPS will not capture a four-wire SPI bus, and that is the most common Arduino peripheral after I2C. Accuracy also varies slightly between the two oscilloscope channels and against a reference multimeter, so do not treat its readings as lab values.
The board pins do not line up cleanly with common breadboard brands, so a little pin bending is often needed, and there is no traditional time-reference trigger control that scope users expect. Members of r/AskElectronics make a related point: keeping a cheap analyzer alongside a scope covers the cases where four channels of analog interest matter more than deep digital capture.

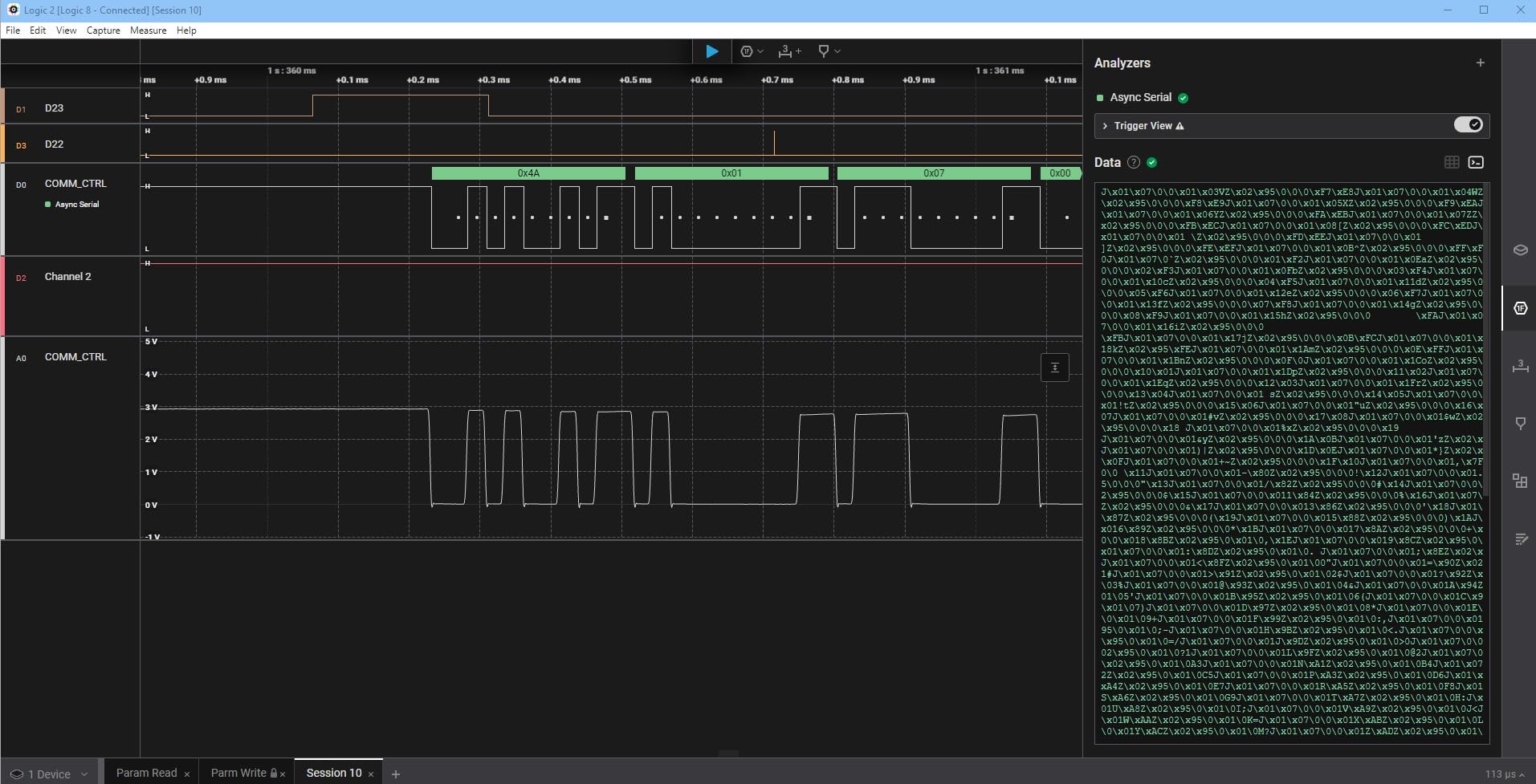

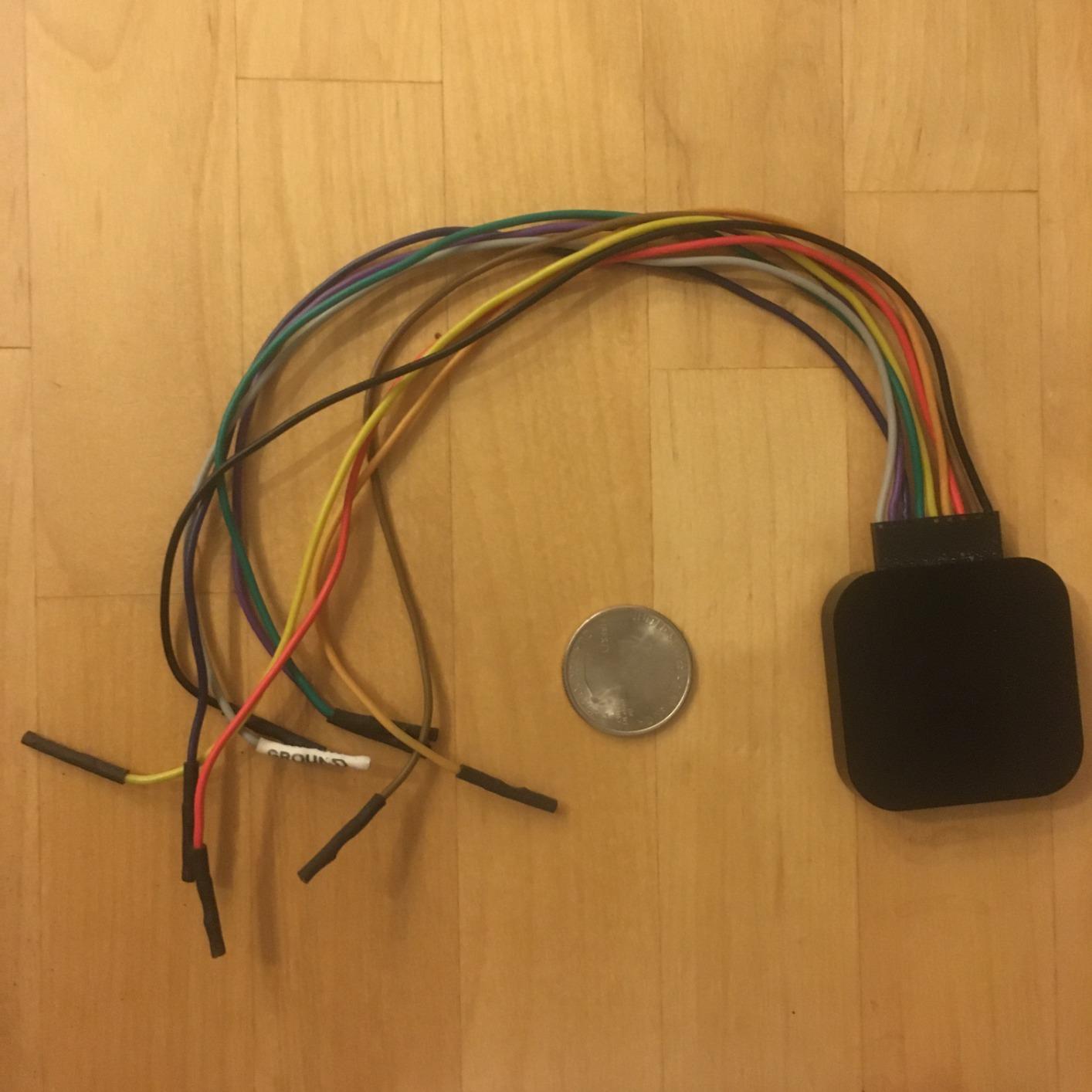

6. Saleae Logic 8 – first-party software with analog inputs
Logic 8 (Black) – Saleae 8-Channel Logic Analyzer
8 digital and analog multi-use inputs
100 MS/s digital and 10 MS/s analog
23+ protocol decoders
9.5 x 5 x 2 inches, 0.5 kg
Pros
- Polished first-party Saleae software with good triggering and export
- Analog inputs add signal insight the cheap clones cannot offer
- Very portable at 9.5 by 5 by 2 inches
- Huge capture depth using host memory over USB 2.0
Cons
- Costs several times more than a 24MHz clone
- Capture depth depends on host PC memory
- Older software generations lacked a real-time streaming view
Every channel on the Logic 8 works as either a digital or an analog input, which is the feature that separates it from everything above in this guide. At 10MS/s analog you can look at a signal shape, a ringing edge or a suspicious voltage level on the same pin you are decoding.
Digital capture runs at up to 100 MS/s, and with 10 billion-plus digital samples using PC memory over USB 2.0 you can record long sessions without a hardware buffer. The box ships with 23+ protocol analyzers covering SPI, I2C and the rest of the common set.
It measures 9.5 by 5 by 2 inches and weighs 0.5 kg, small enough for a laptop bag or a field kit. It runs on Mac, Windows and Linux.
Reviewers value the smooth first-party experience far more than the sample rate, and the software is the reason people pay more. That is a consistent theme in the embedded community, where the Saleae software is repeatedly described as the deciding factor rather than the hardware.
What the analog inputs change
Digital capture tells you a pin was high or low at a given instant. Analog capture tells you whether that high is clean. If an I2C bus works intermittently and you suspect a marginal rise time, an analog view of the same pin is the only way to confirm it.
It also means you do not need a separate cheap USB scope for sanity-checking a rail or a sensor output while you work through a digital problem.
The value question
It costs several times more than a 24MHz clone, and its digital sample rate is lower than the professional Saleae models later in this list. You are paying for the software, the analog channels and the capture depth.
Two practical notes: capture depth uses your PC memory, so long sessions need a well-equipped machine, and older generations of the software did not offer a true real-time streaming view.

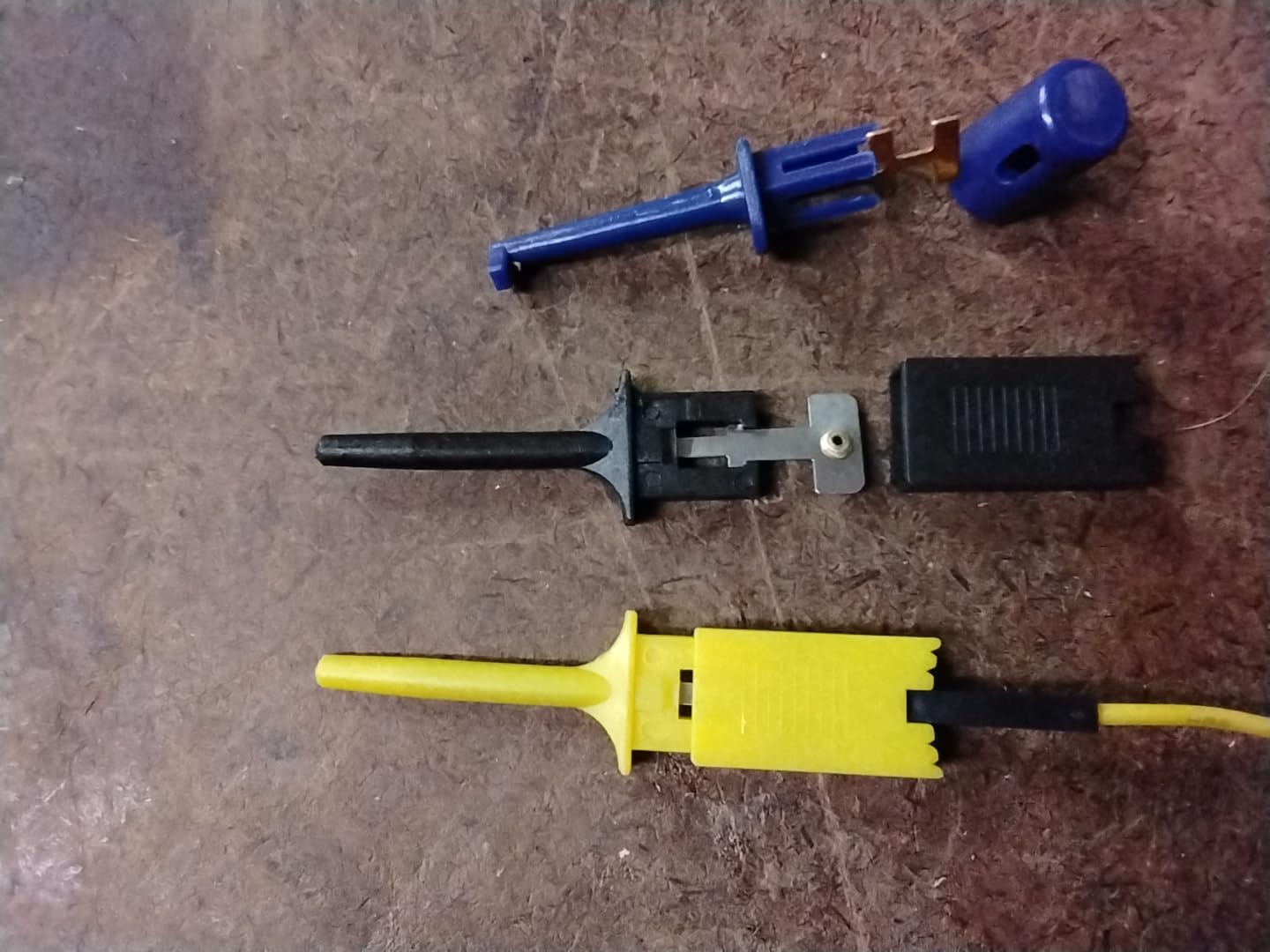

7. LONELY BINARY 24MHz Kit – breakout boards instead of clip wires
LONELY BINARY Logic Analyzer Kit, 8 Channel 24MHz USB with Breakout Boards
8-channel capture up to 24MHz
Breadboard adapter and 2.54mm breakout board
USB-A and Type-C cables included
10 test clips and 5 alligator clips
Pros
- Breakout board removes the fragile clip-on wiring that plagues bare clones
- Most complete accessory set in this class with both cable types
- 24MHz across 8 channels suits Arduino ESP32 and Raspberry Pi
- Works with open-source software across Windows Mac and Linux
Cons
- Underlying analyzer is the standard bufferless design
- Small test clips are of basic quality
- Breakout boards add bulk for simple two-signal jobs
- Generic sigrok stack with no proprietary polish
Almost every complaint about cheap logic analyzers comes down to the wiring, not the capture. Clip leads slip off breadboard pins, drift between captures and produce a trace that looks like a hardware fault. This kit attacks that problem directly with a logic level breadboard adapter and a breakout board that exposes all eight channels on 2.54mm pins and pads.
Once the breakout is wired to a solderless breadboard, connection is a matter of jumper wires rather than physics. Captures become repeatable, which matters when you are comparing two runs.
The box also includes both USB-A and USB Type-C cables, ten test clips, five alligator clips, jumper wires and a storage container. That removes the port guesswork and the “where did I put the clips” problem in one go.
Capture is 8 channels at up to 24MHz, and it works with open-source sigrok-based software on Windows, macOS and Linux. Reviewers confirm good traces with event triggering for Arduino, ESP32 and Raspberry Pi protocol debugging.
Where the breakout boards earn their place
Any project where you re-run the same capture to compare behaviour. Firm connections mean a difference between two traces is a real difference in your code or your sensor, not a probe that moved.
It is also the better choice if you are capturing on a breadboard without a metal clip, since the adapter seats the analyzer’s channels directly into the board rails.
What the extras do not change
The analyzer itself is a standard bufferless 24MHz design, so the host USB link still sets the ceiling at full sample rate across all channels. The kit does not make the hardware faster.
The small test clips are described as basic, the software is the generic sigrok stack with no proprietary polish, and the breakout boards add bulk and cost if you only ever need two signals. Ratings land in the low fours largely for those reasons.
8. Saleae Logic Pro 8 – 500 MS/s for fast buses
Logic Pro 8 (Black) – Saleae 8-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
8 digital and analog multi-use inputs
500 MS/s digital and 50 MS/s analog
23+ protocol analyzers
USB 3.0, 10 billion-plus samples
Pros
- Sample rate and analog capture far outclass budget clones
- Logic 2 software is intuitive fast and well supported
- Eight analog channels avoid a separate analog add-on module
- Reported to find real bugs such as inversion and wrong bit order in minutes
Cons
- Very high price for a hobby tool
- Capture depth relies on host RAM
- Software can freeze when sampling at the full 500 MS/s
- Some community protocol extensions no longer compile
This is the professional answer to a specific problem: a bus that is far too fast to capture at 24MHz. At 500 MS/s digital and 50 MS/s analog across eight digital/analog multi-use inputs, it captures high-speed SPI, USB traffic and memory buses with real margin to spare.
Capture depth runs to 10 billion-plus digital samples and 500 million-plus analog samples using PC memory over USB 3.0. That means long captures without the host dropping data, which is exactly where a bufferless clone falls apart.
The logic threshold is adjustable, which makes it usable on mixed-voltage buses where a fixed-threshold clone gives up. The eight analog channels mean you do not need a separate analog add-on module.
Owners with embedded backgrounds describe it as the tool that ends guesswork on bus problems, reporting that it found signal inversion and wrong bit order within minutes. It measures 8.9 by 4.9 by 2 inches and weighs 0.5 kg, so it stays portable.
When 24MHz genuinely is not enough
A 24MHz sample rate gives you roughly 27 samples per bit at 900kbit/s and far fewer at multi-megabit speeds. Once you are chasing a bus running at 10MHz or faster, or looking for a glitch only a few nanoseconds wide, the budget clones cannot see it at all.
This unit can, which is why engineers reach for it. The adjustable threshold also lets one box handle a 3.3V ESP32 and a 5V Uno in the same session.
Who should skip it
Almost every hobbyist. The price is steep for a personal tool, and if your traffic is 400kHz I2C or 115200 baud UART, a low-cost budget analyzer shows you exactly the same bytes for a fraction of the outlay.
Real-world limits also exist: full-rate captures can freeze the module and need a restart, long captures need generous host RAM, and some community protocol extensions have stopped compiling against current software versions.

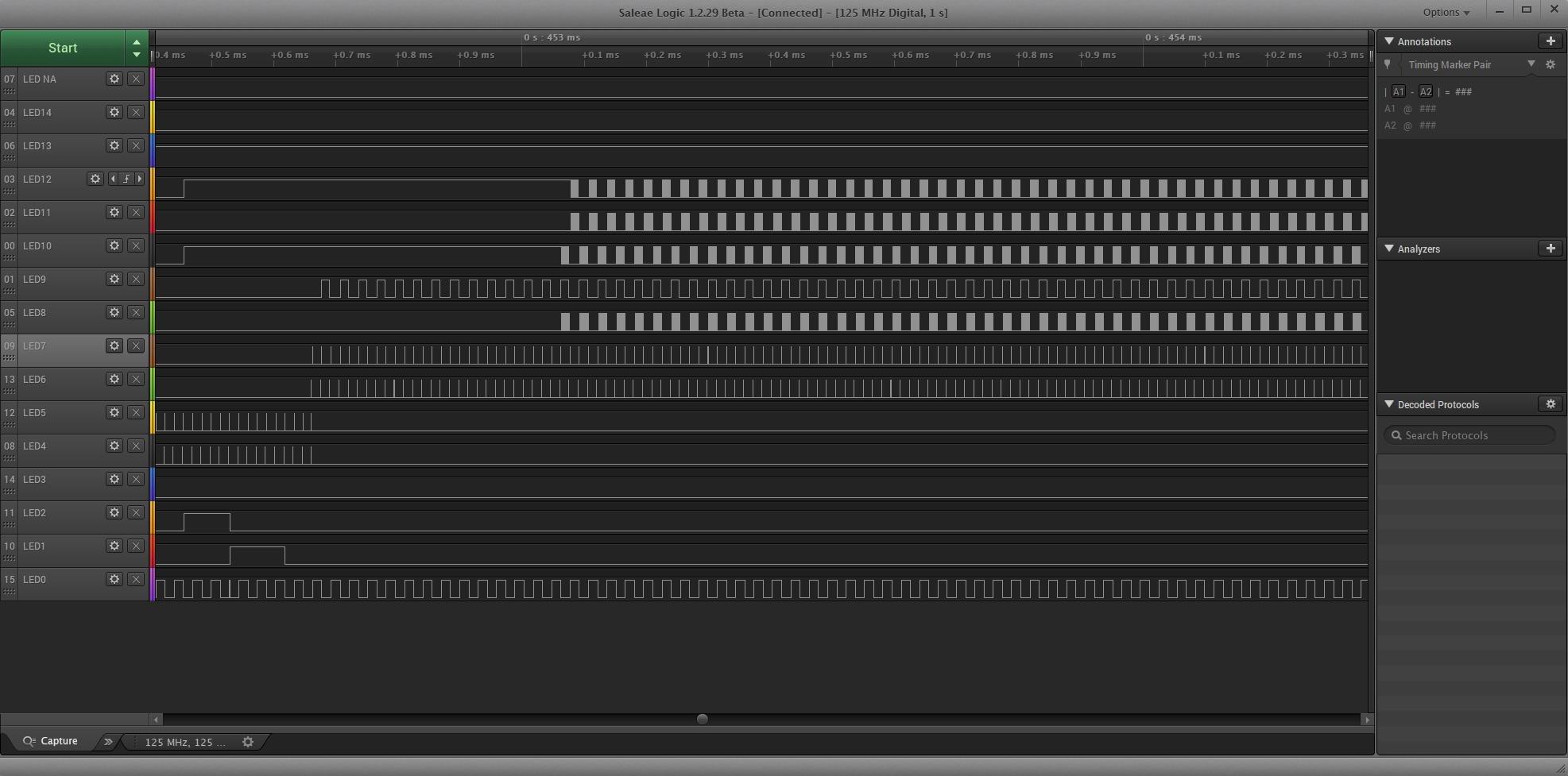

9. Saleae Logic Pro 16 – 16 channels for wide parallel capture
Logic Pro 16 (Black) – Saleae 16-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
16 digital and analog multi-use inputs
500 MS/s digital and 50 MS/s analog
10.9 x 7.4 x 3 inches, 0.5 kg
Safety rated to UL 61010-1
Pros
- Sixteen channels make wide parallel and state-machine capture practical
- Large capability step up from the earlier 8-channel 100MHz model
- Logic 2 software is fast with multiple trigger and viewing modes
- Colour-coded cables clips and a carrying case are included
Cons
- Most expensive unit in this guide
- Uses a lot of host memory for large captures
- Analog sampling is comparatively slow at 50 MS/s
- Software cannot group channels into a custom bus vector
Channel count is the decisive advantage here. Sixteen digital/analog multi-use inputs at up to 500 MS/s digital and 50 MS/s analog means you can capture an entire parallel data bus, a display interface and its control lines in one pass, rather than splitting the job across several runs.
Bandwidth degrades gracefully, which is a nice detail: 500 MS/s at six channels and 250 MS/s at twelve. So enabling more probes does not drop you to a crawl. The design is safety rated to UL 61010-1 and IEC 61010-2-030.
Reviewers who upgraded from an earlier 8-channel 100MHz model describe it as a large step up in capability, and repeatedly point to the Logic 2 software as the real jewel, with fast rendering and strong trigger and viewing options. It runs on Mac, Windows and Linux, and works well on Apple Silicon Macs and Windows 11.
The box includes colour-coded flexible cables, clips and a carrying case, and it measures 10.9 by 7.4 by 3 inches at 0.5 kg. Several owners call it indispensable for embedded SPI, I2C and RS-232 debugging.
When sixteen channels matter
Parallel buses, state machine outputs, and any project where a fault only appears when several lines change together. Owners report it repeatedly locating wrong bit order, signal inversion and mismatched logic values in minutes.
The graceful bandwidth drop also makes it the better box for a teaching lab, since one unit covers eight to sixteen students’ captures with a realistic sample rate.
The compromises
This is the most expensive unit in the guide and sits well above far cheaper alternatives that will solve most hobby problems. Large captures also lean on host memory, and some users had to upgrade their machine.
Analog sampling at 50 MS/s is comparatively slow, the software cannot group channels into a custom bus vector, and there is no NIST-traceable calibration certificate for formal testing. A few users also report missing repeatable and protocol trigger features in the application.

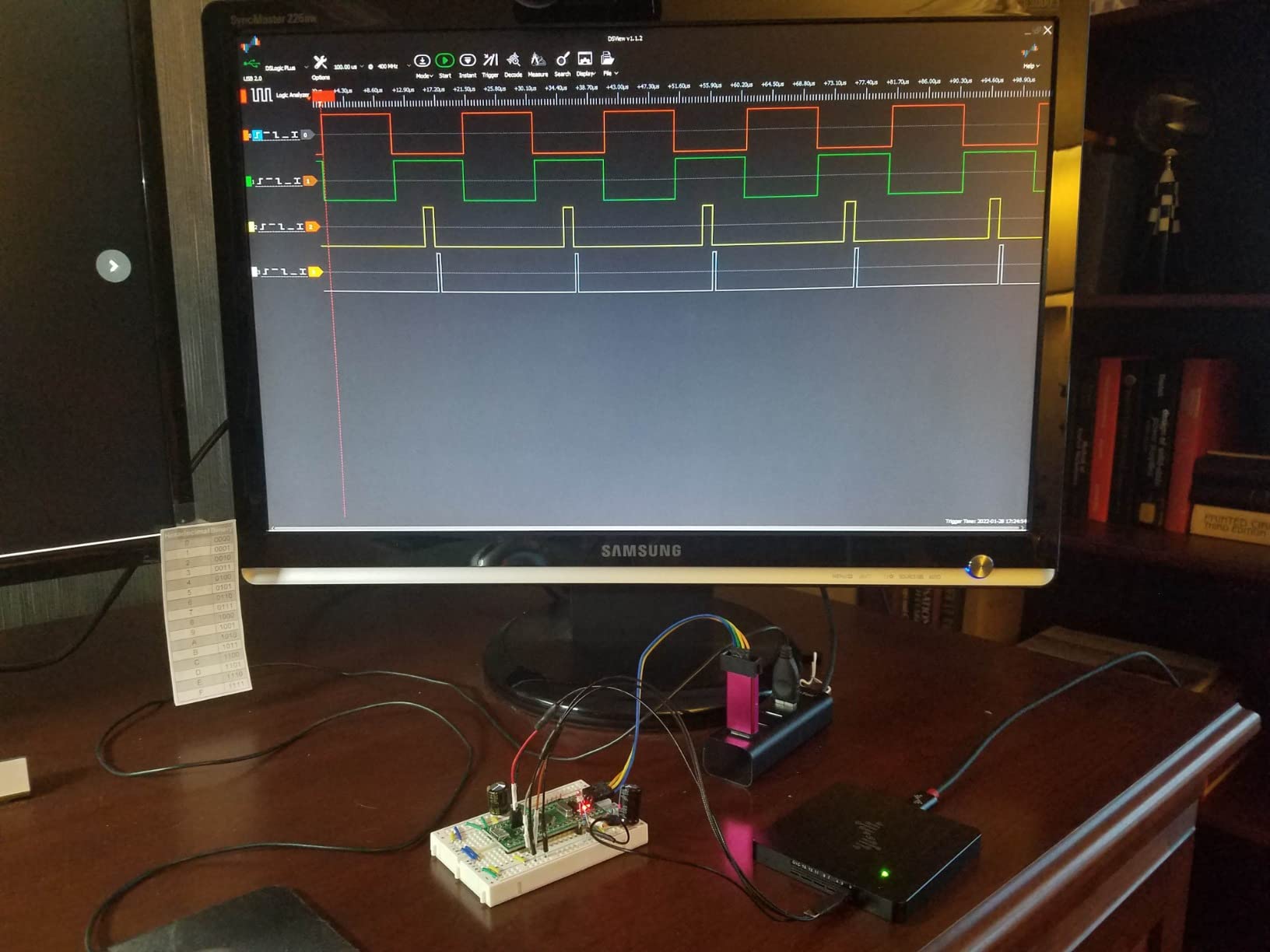

10. DSLogic Plus – on-board buffer and an adjustable threshold
DreamSourceLab DSLogic Plus USB-Based Logic Analyzer with 400MHz Sampling Rate, 256Mbits Memory, USB 2.0 Interface, 16 Channels
16 digital channels with two capture modes
256Mbit on-board SDRAM in buffer mode
Threshold adjustable in 0.1V steps
3.11 x 2.91 x 0.35 inches
Pros
- On-board 256Mbit memory gives real capture depth without host dependence
- Adjustable threshold works on non-3.3V and non-5V buses
- DSView has nearly 100 protocol decoders and open source code
- Coax signal lines with pin ends plug straight into breadboards
Cons
- Digital only with no analog channels
- Documentation contains errors
- DSView differs from PulseView in places and advanced triggering is buffer-mode only
The DSLogic Plus is the value pick for anyone who needs more than a hobby clone without stepping up to professional hardware. It has 16 digital channels and two capture modes, and the second one is the reason to look closely.
In stream mode it transfers to PC memory for up to 16G samples, at 100MHz across 3 channels, 50MHz across 6, 25MHz across 12 and 20MHz across 16. In buffer mode it uses 256Mbits of on-board SDRAM, giving 400MHz across 4 channels, 200MHz across 8 and 100MHz across 16, with 2.5ns resolution and over 100ms of capture at 400MHz.
The adjustable signal threshold in 0.1V steps is the sleeper feature. A fixed 1.5V threshold on a budget clone fails on unusual voltage levels, and this handles mixed-voltage systems without guesswork.
DSView is a well-presented open-source sigrok fork with nearly 100 protocol decoders, available on GitHub, and it runs on Windows, macOS and Linux. Owners highlight its time-measuring cursors and superb FPGA-based triggering in buffered mode.
When on-board memory beats a bigger sample rate
Buffer mode decouples the capture from your USB link entirely. A glitch that lasts a few microseconds at 400MHz will not be lost to host traffic or a stalled pipe, which is the exact failure mode of bufferless clones.
It also decodes bi-directional serial traffic between microcontrollers and a Raspberry Pi, and the coax signal lines with pin ends plug straight into breadboard rows without an adapter.
Where it falls short
It is digital only, with no analog channels, and several owners explicitly wished they had paid more for analog support at this level. The included micro-hook style clips detach easily, so you will likely want better colour-coded clips.
The documentation contains errors despite lucid general writing, the interface diverges from PulseView in places with a light theme that is uncomfortably bright for small pulse features, and the advanced triggering is limited to buffered mode.
Can You Use an Arduino or Raspberry Pi as a Logic Analyzer?
Yes, and for learning the protocols it is a genuinely good exercise. You can capture a few slow digital lines by bit-banging the reads in a loop, or by toggling a pin from an interrupt and counting cycles. What you cannot do is match the timing fidelity of real hardware, and that is where the limits bite.
On an Arduino, a loop that reads three pins and timestamps them has overhead between samples, so your effective sample rate lands far below the pin toggle rate. A 400kHz I2C bus is around 800k bit edges per second, which a bit-banged loop on a 16MHz AVR will not sample cleanly, and the resulting trace can look like a bus fault that is not there.
A Raspberry Pi is meaningfully better, because a C program on Linux can read the GPIO edge registers directly and hit a few hundred kilohertz of sampling on the older models. The newer RP2040 and RP2350 boards with PIO are closer still. Even so, timing jitter from the host OS makes it a teaching tool rather than a diagnostic one.
Here is the honest version of the comparison. A Raspberry Pi or a PIO-capable microcontroller can confirm that a bus is toggling and roughly which bits it carries. A dedicated USB analyzer gives you uniform sampling, hardware triggering and accurate inter-sample timing. For a class exercise or a first look at a protocol, the DIY route is free and educational. The moment you need to trust the spacing between edges, buy a low-cost budget analyzer instead.
How to Hook a Logic Analyzer Up to an Arduino Safely
Ground first, always. The analyzer measures voltage relative to the board it shares a reference with, so clip its ground lead to the Arduino GND pin before you touch any signal lead. Skip this and you will get garbage traces at best, and you can damage the analyzer or the board at worst.
Then match the voltage. The budget clones in this guide accept roughly -0.5V to 5.25V, and their thresholds sit around 1.5V. That is comfortable for a 5V Uno or Nano. A 3.3V ESP32 or a 1.8V sensor will read correctly on most of them, but a fixed-threshold unit can misread a marginal high, which is why the DSLogic Plus and the Saleae Pro models let you set the threshold yourself.
Never connect a probe to a mains-voltage node, to a motor supply, or to a pin carrying more than the stated maximum input voltage. These budget inputs are only series-resisted, with no clamp protection.
Two more habits keep captures clean. Power the Arduino from its own supply rather than through the analyzer’s USB port when possible, so ground bounce from motor or relay loads does not show up as false edges. And use a short ground lead, because a long one on a breadboard picks up noise that the decoder will happily label as bus errors.
Your First Capture in PulseView
PulseView is free, open source, and handles every Saleae-compatible clone in this guide, plus the sigrok devices. It is worth learning even if you later buy a Saleae, because the concepts transfer directly.
Connect the probes and the ground clip. Attach the analyzer ground to Arduino GND, then each channel to a signal line. Power the board last if you are unsure.
Open PulseView and select the device. Choose Input/Logic Analyzer/Saleae Logic clone, then pick the analyzer from the device list.
Set the sample rate before you run. For 400kHz I2C, 10MHz is comfortable. Going higher adds data without adding information.
Name the channels. Label channel 0 as SDA and channel 1 as SCL, and add GND as a reference channel so the levels are visible in the capture.
Add a protocol decoder. Choose the I2C decoder, select the SDA and SCL channels, and PulseView adds rows showing address, data bytes and NACKs.
Once the decode rows appear, the usual beginner breakthrough arrives. A sensor that never responds shows its address byte followed by a NACK, which tells you immediately that the device is not acknowledging and the fault is addressing or wiring rather than your code.
For intermittent faults, set a trigger rather than using Run repeatedly. Trigger on the decode row falling edge, or on a UART framing error, and the analyzer will wait for the condition and start the capture automatically. That is the difference between a debug session that finds the bug in ten minutes and one that never does.
How to Choose a Logic Analyzer for Arduino Work
Channels first. Eight covers a full SPI bus plus control lines, which is why the 24MHz clones have become the default. Four is workable for I2C alone. Sixteen matters if you capture parallel buses or a state machine and its outputs together.
Sample rate second, and this is where beginners overpay. To resolve a bit you need roughly 8 to 10 samples per bit, so 24MHz gives you comfortable headroom to about 2Mbit/s. A 400kHz I2C bus needs under 1MHz. Spend your money on channels, buffer memory and probes before you spend it on sample rate.
Buffer depth third. Devices with no on-board buffer depend on your USB link and PC memory staying healthy during the capture. The DSLogic Plus and the Saleae Pro models have real buffers, which is why they hold a clean 400MHz capture that a clone would have dropped.
Threshold adjustment fourth. Fixed 1.5V thresholds are fine for 5V and most 3.3V work, but they are the failure point on 1.8V buses and mixed-voltage boards.
Software fifth. The Saleae-compatible clones work in both Saleae Logic and sigrok PulseView, which is the flexibility you want. Bundled-only tools such as KingstVIS are competent but closed, and the DSView route gives you open-source software with a large decoder library.
Accessories last, and cheaper than you would think. Test hook clips, colour-coded leads and a breadboard breakout solve more real problems than any spec upgrade, which is why two of the picks in this guide are kits rather than bare devices.
Why Professional Logic Analyzers Cost More
The price gap between a budget clone and a professional box comes down to five things, and none of them is the sample rate alone.
Capture hardware. Professional units sample on an FPGA with real on-board memory, so a capture at top rate is not at the mercy of your USB link.
Trigger quality. A hardware trigger can be set to conditions the software cannot see in real time, which is what makes intermittent fault hunting practical.
Analog inputs. Multi-use analog channels let you inspect signal integrity on the same pins, not just logic levels.
Buffer depth. Billions of samples stored in host memory mean a long capture does not need to be interrupted.
Software and support. First-party software, maintained decoders and a supported driver stack are the part buyers consistently cite as the reason to pay more, and the part cheap oscilloscopes lack because they ship fixed-ROM firmware that does not decode protocols at all.
For most Arduino work none of that matters, which is the honest summary of this whole guide. Buy the budget clone, learn the protocol on it, and upgrade only when a specific limit gets in your way.
One hardware caution worth knowing: an EEVblog discussion thread reported that some later DSLogic U2Basic boards shipped with a trace physically removed from the FPGA, capping achievable performance. Check the current hardware revision before buying a secondhand U2Basic, and treat advertised figures on old forum-era models with care.
Frequently Asked Questions
What is the best logic analyzer?
For most Arduino projects the best logic analyzer is an 8-channel 24MHz USB unit driven by sigrok PulseView. It samples roughly 60 times per bit on a 400kHz I2C bus, covers a full four-wire SPI bus, and costs a fraction of professional hardware. Step up only when you need on-board capture memory, adjustable logic thresholds, analog inputs or sample rates above a few MHz.
Can I use an Arduino as a logic analyzer?
You can, but not well. A loop that reads pins and timestamps them has overhead between samples, so an Arduino cannot sample a 400kHz I2C bus cleanly and the resulting trace can look like a fault that is not there. It is a good way to learn how a protocol looks, and a poor substitute for a hardware capture when you need to trust the timing.
Can I use my Raspberry Pi as a logic analyzer?
Yes, and it works better than an Arduino. Reading the GPIO registers from C on Linux can reach a few hundred kilohertz on older models, and the RP2040 and RP2350 boards with PIO go further. Operating system scheduling still introduces jitter, so treat it as a teaching tool rather than a diagnostic one.
Why are logic analyzers so expensive?
Professional units cost more because of capture hardware with on-board memory, hardware triggering, analog inputs, deep buffers and a maintained first-party software stack. The sample rate alone is not the reason. That is also why cheap USB oscilloscopes with fixed-ROM firmware feel poor at this job, since they cannot decode protocols at all.
Is there a 24MHz 8-channel USB logic analyzer available?
Yes, and it remains the most popular class in this category. Several models ship 8 digital channels at up to 24MHz per channel, with sample rates selectable down to 25kHz, and they enumerate as Saleae Logic clones so both PulseView and Saleae Logic can read them. 24MHz gives you comfortable headroom for 400kHz I2C, 115200 baud UART and 10 to 20MHz SPI.
Is Saleae Logic software free?
The open-source alternative, sigrok PulseView, is free and decodes I2C, SPI, UART, 1-Wire, JTAG and more, and it reads every Saleae-compatible clone in this guide. Saleae sells its own first-party software separately, and its paid features and support are the reason some buyers pay for Saleae hardware. You do not need Saleae software to use a clone.
Do I need a logic analyzer or an oscilloscope?
A logic analyzer answers what bits were on the bus. An oscilloscope answers what the signal looks like, which matters for rise times, ringing, noise and analog sensors. Most Arduino communication bugs are a logic analyzer job. Reach for a scope when the logic decode looks right but the hardware is still misbehaving.
Which Logic Analyzer Should You Buy?
Start with the HiLetgo 24MHz 8-channel unit. It enumerates as a Saleae clone, so PulseView and Saleae Logic both work, eight channels covers a full SPI bus, and it has the largest review base in this roundup at 4.5 stars from 589 reviews. For a first Arduino debugging tool, the compatibility matters more than any spec line.
If you need more channels or a bus that is not one of the common three, go to the InnoMaker LA1010 with 16 inputs at 100MHz and 30-plus decoders. If you are worried about wiring rather than capability, the KeeYees kit or the LONELY BINARY kit solve the physical problem with clips and breakout boards that cheaper bare devices leave you to solve yourself.
Only step up to the Saleae Logic 8, the Logic Pro 8, the Logic Pro 16 or the DSLogic Plus when you have hit a specific wall: analog signal integrity, a bus too fast for 24MHz, an intermittent fault that needs real hardware triggering, or a 1.8V level that a fixed threshold cannot read.
Whatever you buy, clip the ground to Arduino GND first, set a trigger instead of hammering Run, and add the protocol decoder. That last step is where a logic analyzer stops being a box of blinking LEDs and starts telling you which sensor is lying to you.
