Most solder joints do not fail because the iron was too cold. They fail because a bridge, a dry joint or a lifted pad was invisible at normal viewing distance, and the board got assembled anyway. The best magnifying lamps for soldering benches exist to close that gap: they put a glass lens and a bright LED ring over your work so both hands stay on the iron and the solder feed while your eye checks the joint as you work.
We spent weeks with ten of the current bench magnifiers, moving them between a solder station, a fume extractor and a parts bin, and we compared lens clarity, ring brightness, arm rigidity and how each one behaves over a long session. What surprised us most is that magnification is the least interesting spec. A modest 3X station with helping hands beat several 10X and 12X lamps at actual board work, and the complaints that came up again and again were about lens quality and arm drift, not power.
This guide covers the lamps built for a soldering bench rather than a craft desk, explains how diopter power converts to real magnification, and is honest about where a lamp stops being enough and a stereo microscope takes over. Our full selection methodology, the specs behind every pick, and the maintenance steps that keep an arm from sagging are all below.
Table of Contents
Top 3 Magnifying Lamps for Soldering Benches in 2026
XYK Helping Hands Soldering Station
- 3X lens with 28 LED beads
- 500 lumens
- 4 flexible helping-hand arms
- 7-inch powder-coated steel base
Brightech LightView Pro Flex
- 2.25X glass magnifier
- 5W LED rated 30000 hours
- Heavy weighted base with gooseneck arm
- Soft 3000K illumination
TOMSOO 10X Clamp Magnifier
- 10X real glass 5.2 inch lens
- 5 color modes with stepless dimming to 1500 lumens
- Padded wide-jaw 2-in-1 clamp
Our editor’s choice goes to the station that does the most for a soldering bench rather than the one with the biggest number on the box. The Brightech takes the highest overall rating in this group, and the TOMSOO is the pick when you need genuine pinpoint magnification with tunable light.
All 10 Magnifying Lamps Compared Side by Side in 2026
| Product | Specifications | Action |
|---|---|---|
| XYK Helping Hands Soldering Station 3X |
|
Check Latest Price |
 YOUKOYI 5X Glass Lens Clamp Lamp |
|
Check Latest Price |
 KIRKAS 2200 Lumen 12X Clamp Lamp |
|
Check Latest Price |
| Brightech LightView Pro Flex 2.25X |
|
Check Latest Price |
 Neatfi Bifocal 5D plus 20D 1200 Lumens |
|
Check Latest Price |
| TOMSOO 10X Real Glass Clamp Lamp |
|
Check Latest Price |
 RackydigPro 12X Clamp Magnifier |
|
Check Latest Price |
 Coyeth 10X Glass Lens Clamp Lamp |
|
Check Latest Price |
 VUEJIC 10X USB Powered Magnifier |
|
Check Latest Price |

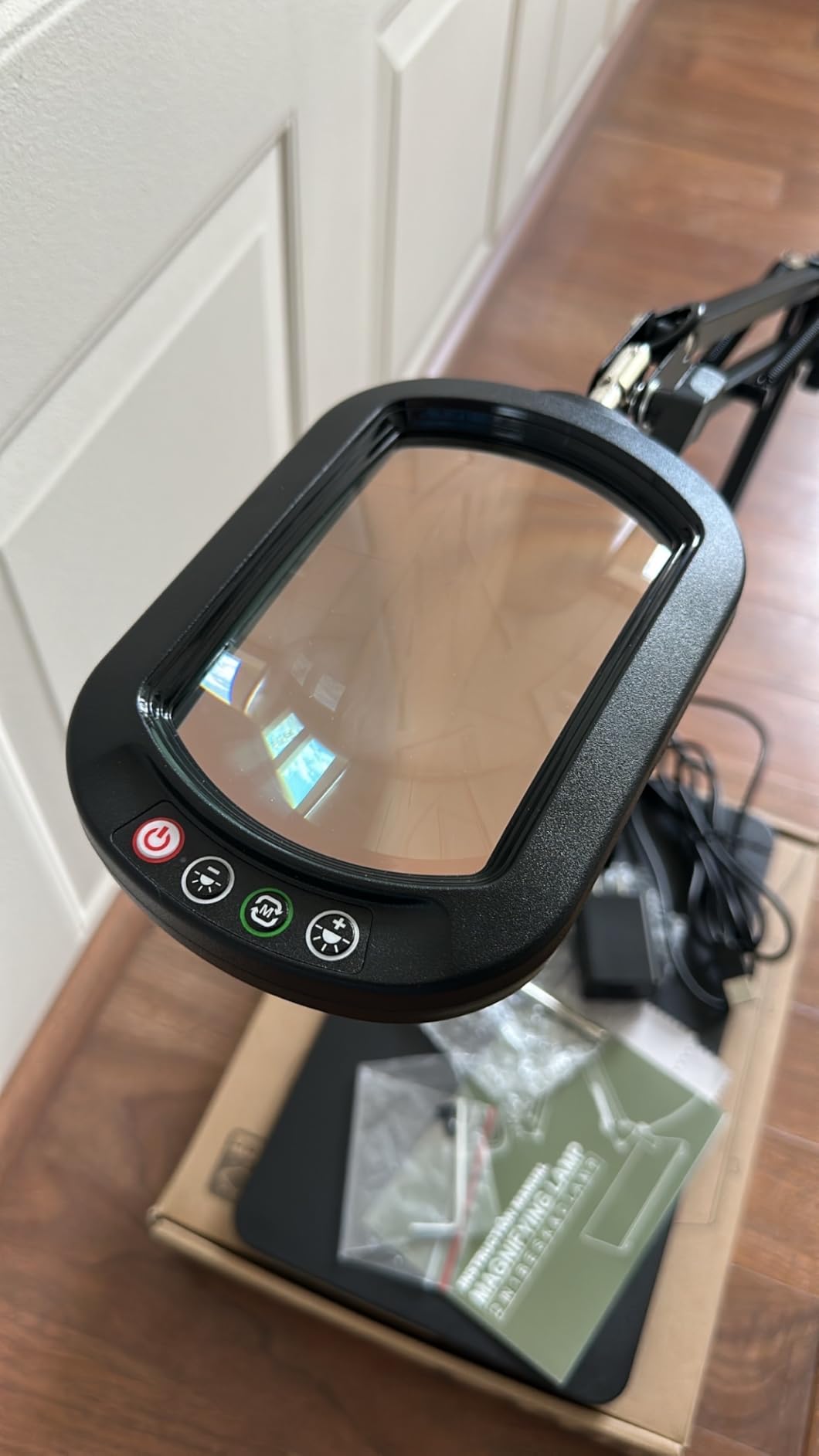

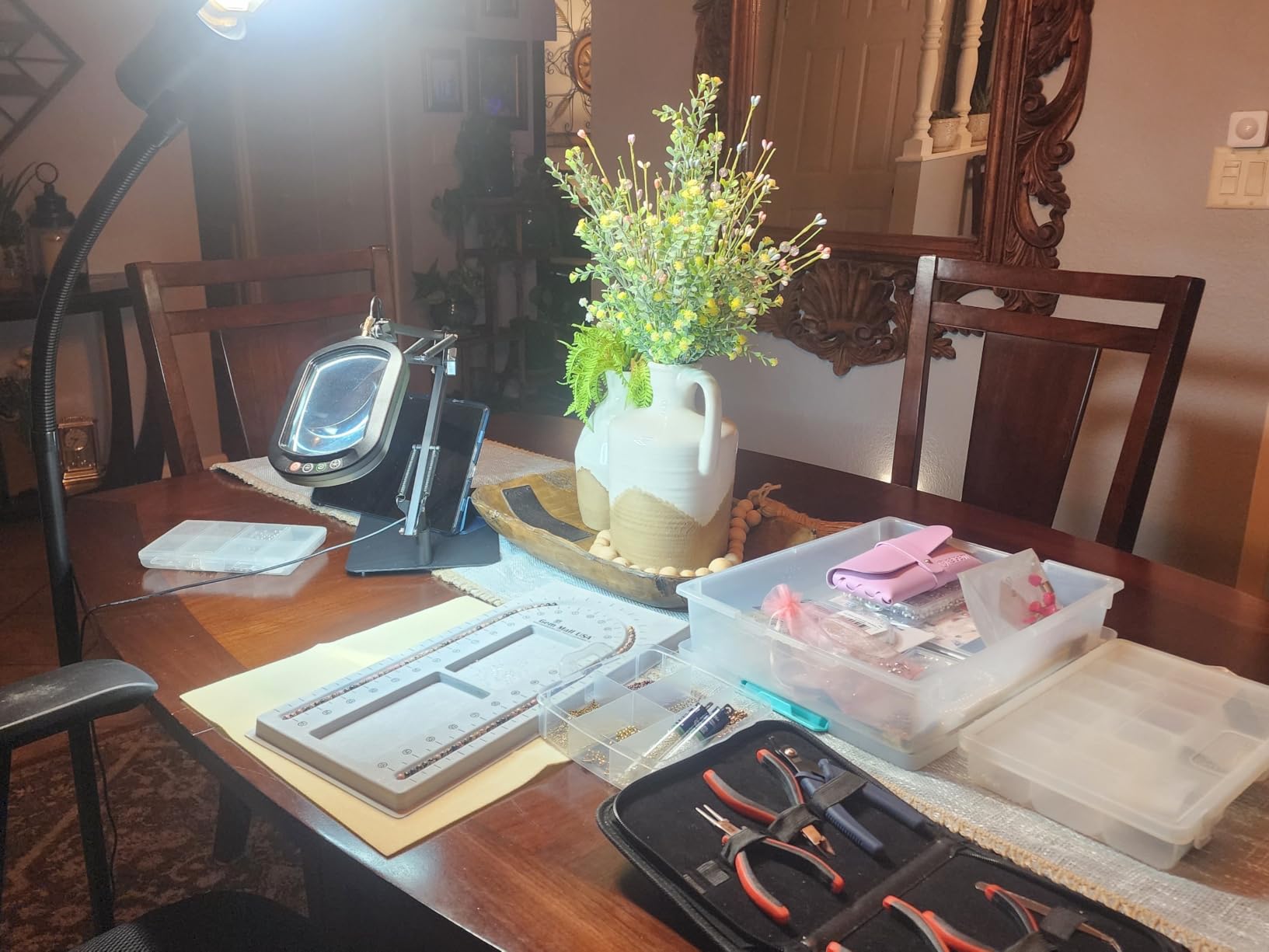

 Drdefi 12X Rectangular Glass Magnifier |
|
Check Latest Price |
What Magnification Do You Actually Need for Soldering?
Diopter power is the spec that confuses everyone, because it is not the same number as magnification. One diopter equals 1.25 times magnification, so a 5-diopter lens is really about 3x, not 5x. Manufacturers quote both, which is why a lamp advertised as 10X may be a 10-diopter lens behaving closer to 6X at a comfortable working distance.
2 diopters (about 2x) – Through-hole joints, headers, connector pins and general board work. Big view, deep focus, eyes relaxed.
3 diopters (about 2.5x) – The sweet spot for most soldering benches. Wide enough to see a whole section of PCB, sharp enough to judge a fillet.
5 diopters (about 3x) – SMD rework and fine-pitch SOIC work. You are now moving your head to find focus, so posture matters.
8 diopters (about 4x) – QFN and SON inspection, dense mobile board repair. Working distance shrinks fast and eye strain climbs.
10 diopters and above (about 5x or more) – Single-joint inspection only. Fine for checking a pad, wrong as a working lens for a whole board.
So is 3 diopter or 5 diopter better? For a bench that does a mix of through-hole and surface-mount work, 3 diopters is the more useful daily choice, because your field of view stays wide enough to keep both hands oriented. Pick 5 diopters when your work is mostly fine-pitch inspection and you already know how to sit and move your head to hold focus.
One more rule of thumb we use: the moment your problem is a single joint, a microscope is usually the better answer. More on that in a moment.
1. XYK Helping Hands Soldering Station 3X – the all-in-one bench station
XYK Helping Hands Soldering Station with 3X Magnifying Glass with light, 4 Flexible Helping Hand Arms Magnifier and Third Hand Soldering Tool for Electronic Repair Soldering Jewelry Crafts
3X magnifier
28 LED beads, 500 lumens
6 brightness levels
4 helping-hand arms
Pros
- Magnifier and four helping hands in one base
- 500-lumen dimmable ring light
- Heavy steel base with non-slip pads
- Insulated rubber-sleeved clips
- Four arm lengths for flexible positioning
Cons
- 3X is modest for very fine component work
- Clip positions reset after repeated screw locking
- Basic accessory bundle
This is the only lamp in the group that also functions as a soldering station, and on a real bench that changes the calculation. The magnifier and the four helping hands share one 7-inch powder-coated steel base, so the board, the part and the wire all sit inside the light instead of being held in your lap.
Four insulated alligator clips on flexible goosenecks let you stage a through-hole board, a component lead and a wire in one arrangement, then free both hands for the iron and the solder. The 500-lumen ring with six brightness levels is bright enough for inspection without washing out the view of a shiny joint.
Light quality is a modest 500 lumens from 28 beads, which is fine for a 3X lens because a low-power lens does not need a lot of light. The steel base and its four rubber pads keep the whole assembly from walking across the bench when you push the iron against a pad, which is the usual reason a lightweight helping-hands stand ends up on the floor.
The honest limit is magnification. At 3X you can see whether a joint is wet, shiny and properly flowed, and you can spot a bridge across a fine-pitch IC, but you are not going to judge a 0.4mm pitch lead under this lens. The clip arms also need re-setting after repeated moves because they lock with screws rather than friction.
Who it suits and where it sits on the bench
It suits a hobbyist or repair technician who wants a single object to hold a board, feed solder and light the joint. Put it slightly to the side of your iron so the ring does not sit in your line of sight to the tip.
Where it falls short
It is an inspection-plus-holding tool, not a fine-detail lens, and the accessory bundle is basic. If your work is dominated by surface-mount rework on phone boards, you will outgrow the 3X within a few months.

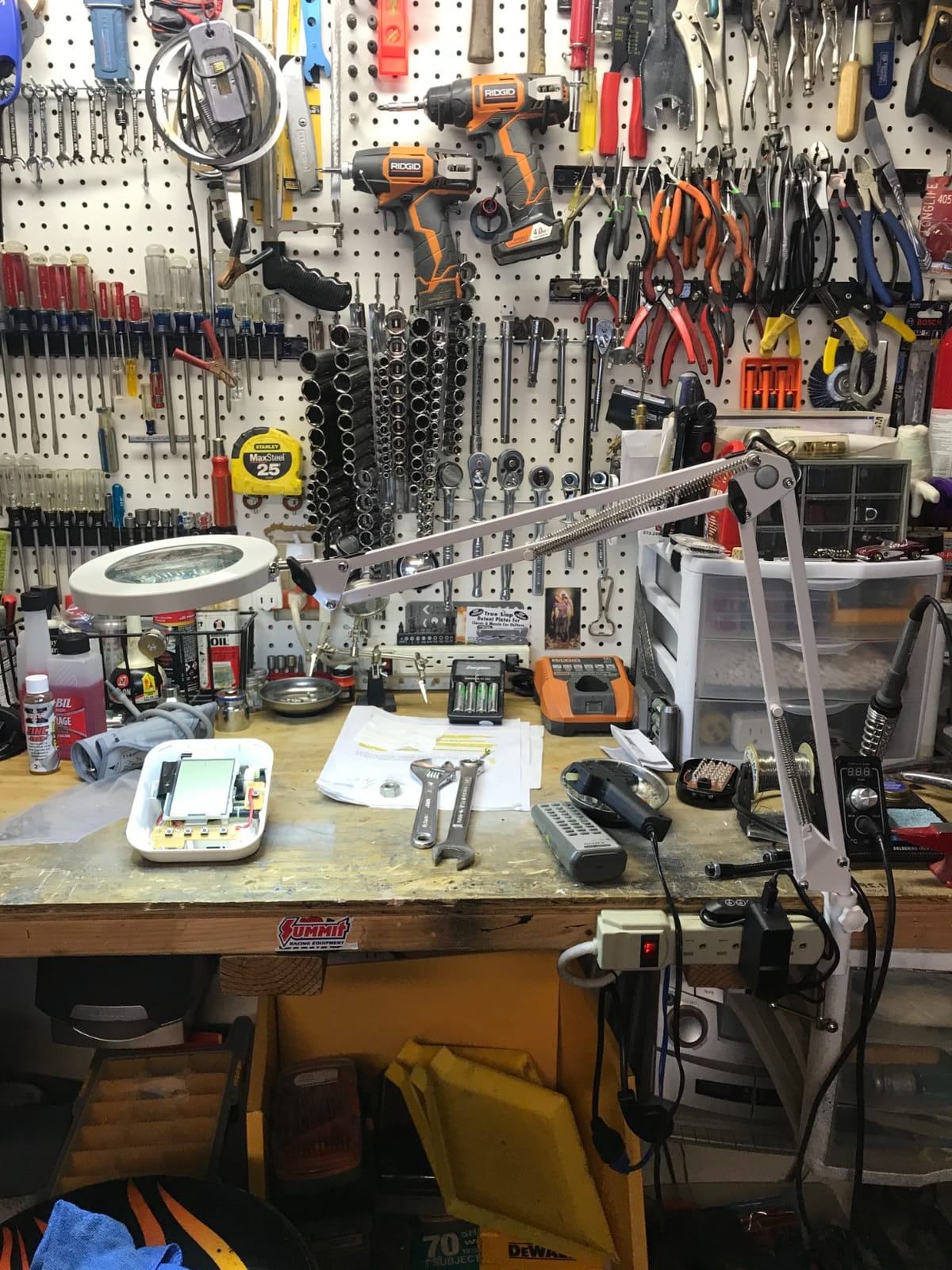

2. YOUKOYI 5X Glass Lens Clamp Lamp – the best value real-glass option
YOUKOYI LED Magnifying Lamp Metal Swing Arm Magnifier Lamp -10 Levels Brightness, 3 Color Modes, 5X Magnification, 4.1″ Diameter Glass Lens, Adjustable Industrial Clamp for Reading/Office/Work (White)
5X on 4.1 inch real glass
3 color modes, 10 levels
Dual-segment metal arm
Clamp to 2 inch
Pros
- Real glass lens stays clear over long sessions
- 30 dimmable combinations for joint inspection
- Solid weighted arm and clamp hold position
- Flicker-free output
- Long dual-segment arm reaches over clutter
Cons
- Linear dimmer responds very slowly at the top of the range
- Inline cord control complicates cable routing
- Some reports of the head joint loosening after 18 months
- Clamp will not fit surfaces thicker than 2 inches
For most hobby benches this is the lamp we recommend first, because a 5X claim on a real glass lens is the sweet spot between view width and joint detail. The 4.1-inch glass element is the part that matters: it stays sharp at the edges and does not fog or flex like acrylic, and reviewers consistently describe it as comfortable across long sessions.
The lighting is unusually well thought out for electronics. Three color modes from 3000K to 6000K times ten brightness levels gives you thirty settings, and that is genuinely useful when you move between inspecting a dull lead-free fillet and reading a tiny silkscreen marking.
The arm is the quiet strength here. A 13.7-inch plus 13.7-inch dual-segment arm folds back to 15.7 inches, the head swivels 350 degrees and tilts 180 degrees, and the base rotates 270 degrees. In practice that means you can park it out of the way when you need the bench for a larger board, then bring it back over the work in one motion.
Two things to know before you commit. The dimmer is linear, so the upper half of the brightness range is nearly unusable and you spend most of your time in the lower half. The inline control panel on the cord is also awkward on a crowded bench where cable management already fights with the iron cord and the fume extractor hose.
Check the clamp fits your bench
The metal clamp handles surfaces up to 2 inches thick, which covers most benches but not a thick laminated top. Measure before you buy, because the alternative is the weighted-base design used by the Brightech.
Why 5X works for most joints
At 5X you can see the meniscus of a fillet and confirm wetting without pushing your face against the lens. Going higher mostly narrows the field, and for joint inspection the field is what lets you keep both hands working.

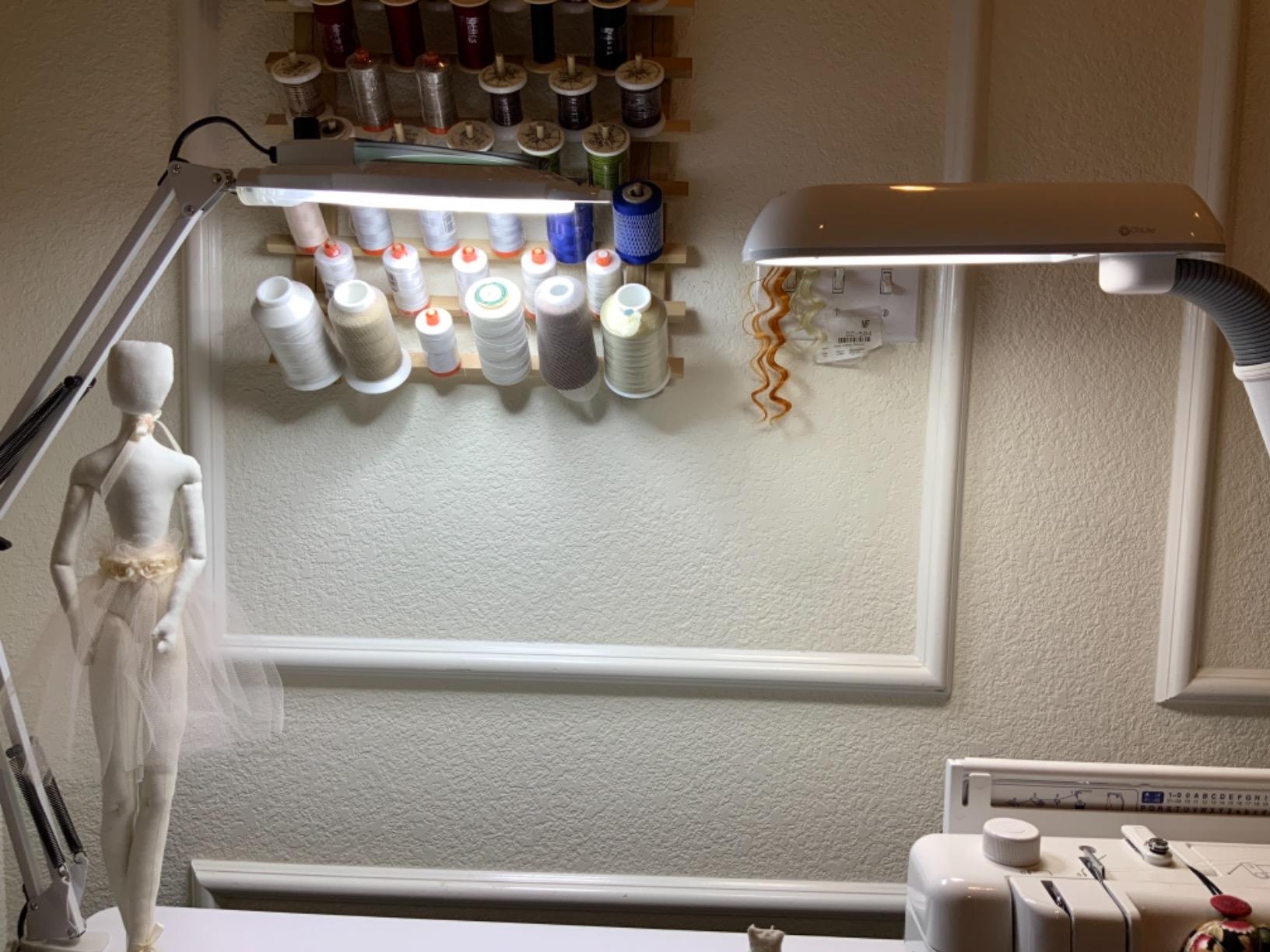

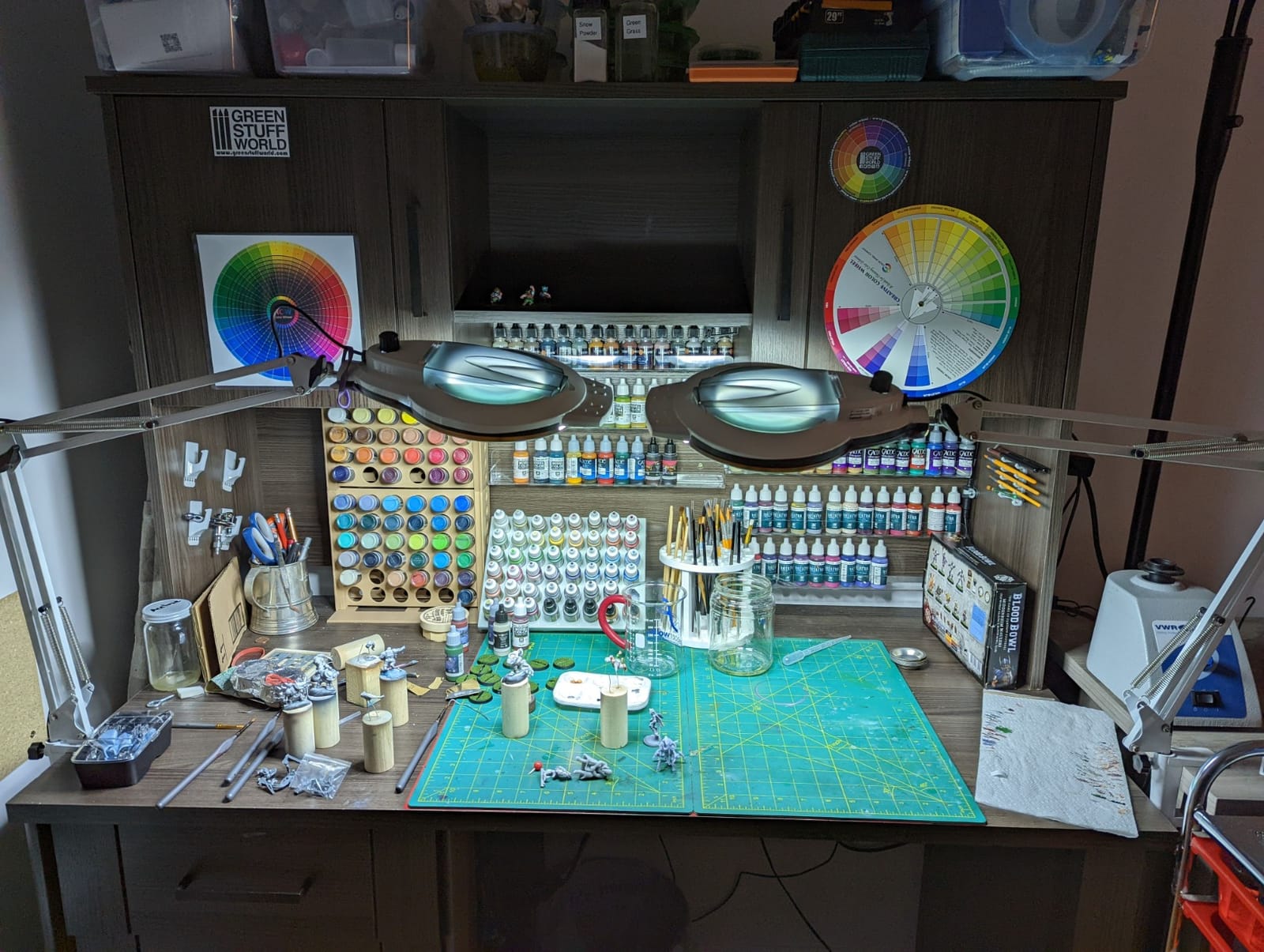

3. KIRKAS 2200 Lumen 12X Clamp Lamp – the brightest ring on test
KIRKAS LED Magnifying Lamp with Clamp, 2,200 Lumens Dimmable 28in 12X
2200 lumens at 6000K
4 inch optical glass lens
Rotary dimmer on the head
Folding lens cover
Pros
- Noticeably brighter than typical 1600-lumen lamps
- Optical glass lens with no distortion
- Rotary dimmer gives smooth glare-free control
- Direct wall-plug cord with no inline brick
- Folding lens cover keeps the glass clean
Cons
- Small base tension knob is hard to grip and can loosen
- Hollow aluminum base tube bends under force
- Housing clamp knob must be tightened very hard
- Some units arrive with a scratched lens
- Cool bluish light only with no color modes
Brightness is the headline here. 2,200 lumens from 144 light sources is measurably more output than the 1,600-lumen lamps that dominate this category, and on a dark bench the difference shows up on a matte solder mask where a dull fillet would otherwise disappear into the board.
The 4-inch optical glass lens shows no acrylic-style distortion at the center, and the rotary dimmer switch sits on top of the light head where you can find it by feel mid-task. That is a small design decision that matters more on a bench than it would at a desk.
Power comes from a switched-mode supply with a direct wall-plug cord, so there is no hot inline brick sitting on your bench next to the iron. The folding lens cover is a nice touch for a dusty workshop, and a center-arm tension screw is meant to stop the head creeping downward over a long session.
The mechanical side is where this lamp gives ground. The base tension knob is small and hard to grip, the aluminum base tube is hollow and can bend if you force the arm, and the housing clamp knob has to be wound very tight to hold the head steady. Some units also arrive with a scratched lens, so check it before the first job.
Brightness versus colour accuracy
The output is fixed at a cool 6000K with no alternative modes. Plenty of light, but you cannot warm it up to judge flux residue or the slight yellow of a leaded joint, so this is a brightness tool more than a colour tool.
Mechanical care matters here
Because the arm and base are the weak point, re-check the tension knob and the housing clamp every few weeks. A lamp that is stiff and needs tightening is normal; one that droops into your work is not.

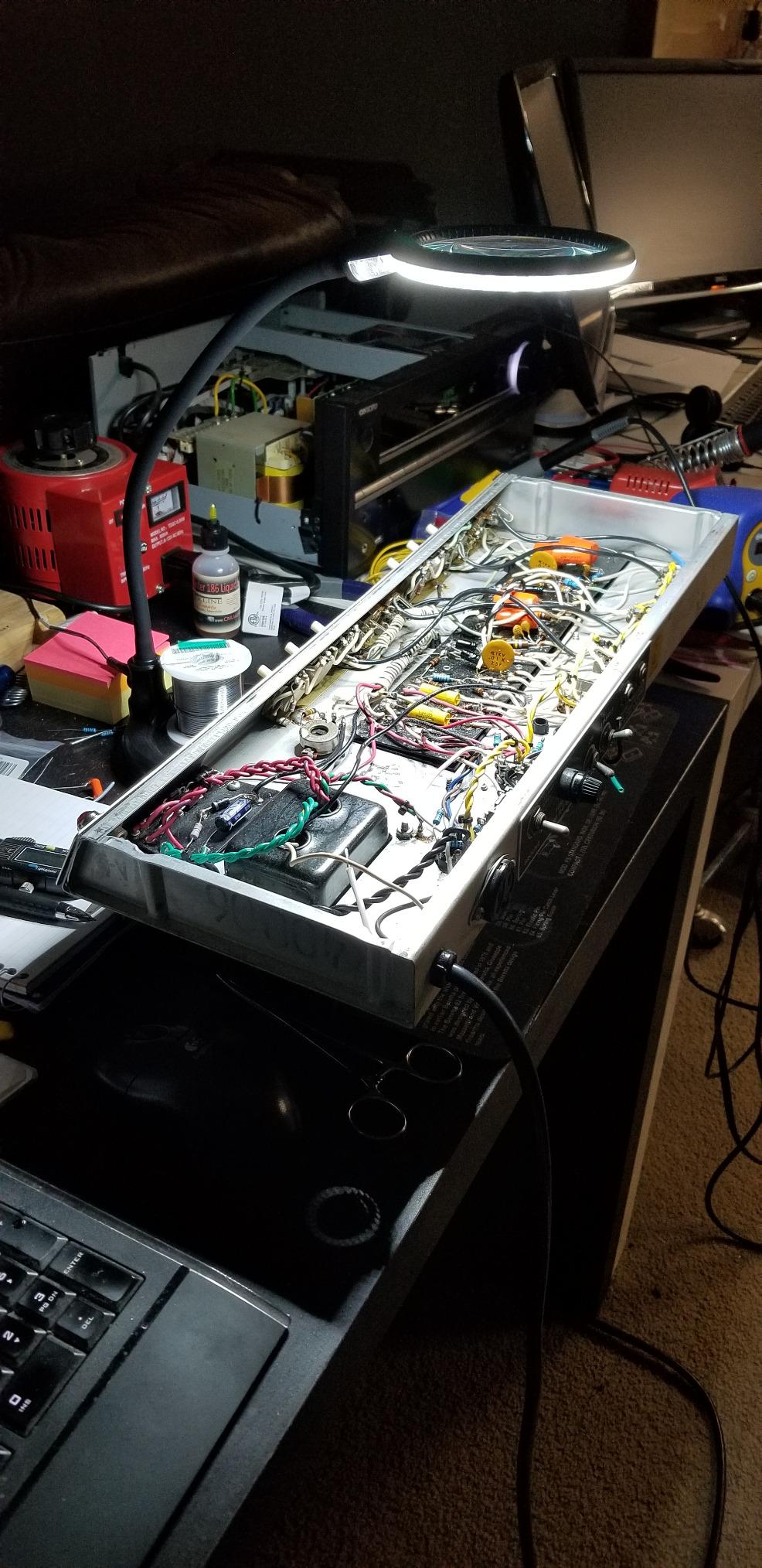

4. Brightech LightView Pro Flex 2.25X – the most proven bench lamp
Brightech LightView Pro Flex 2 in 1 Magnifying Desk Lamp, 2.25x Light Magnifier, Adjustable Gooseneck Magnifying Glass with Light for Crafts, Reading, Close Work
2.25X glass magnifier
5W LED rated 30000 hours
Soft 3000K light
Heavy weighted base
Pros
- Large clear viewing area for overview work
- Bright soft 3000K light with no glare
- Heavy stable weighted base
- Gooseneck bends where your hands work
- 3-year warranty with 8800 reviews behind it
Cons
- 2.25X is the lower power and blurs toward the lens edge
- Gooseneck can tip when stretched fully horizontal
- Documentation mentions a lens cover that is not included
- Corded two-prong power only
This lamp has the highest rating in the group and by far the largest body of owner feedback, and for a soldering bench that combination of proven stability and moderate magnification is a genuinely good trade. At 2.25X you are not inspecting a single pad, you are working on a board with your whole hand in view.
The light is soft 3000K from a 5W LED rated for 30,000 hours. Warm white at this level is gentle on long evening sessions and does not create the hard bright ring you get from cool sources, which is easier on your eye when you are leaning over a joint for hours.
The heavy weighted base is the deciding mechanical feature. A weighted base does not sag, does not need tensioning, and does not need a bench edge to clamp onto, which means it can live on the far corner of a bench and swing into position over a board held anywhere. The gooseneck bends to place the light exactly where your hands are working.
What you trade away is magnification. At 2.25X there is some blur outside the lens center, and a 3 diopter version of the same lamp is available if you want a little more power without changing the mount. The gooseneck is also slightly flimsy at full horizontal extension, so reviewers recommend weighting the base when you push it out.
Why a weighted base wins on a solder bench
Clamps fight with bench thickness, bench edges and fume extractor placement. A weighted base simply sits down and stays, which on a busy bench with an iron, a spool and a hot-air gun is the difference between a lamp you use and a lamp you work around.
When 2.25X is not enough
If your boards are dominated by surface-mount rework or you need to confirm a bridging fault on a fine-pitch package, step up. This lamp is superb for through-hole, harnesses, connectors and general board work.

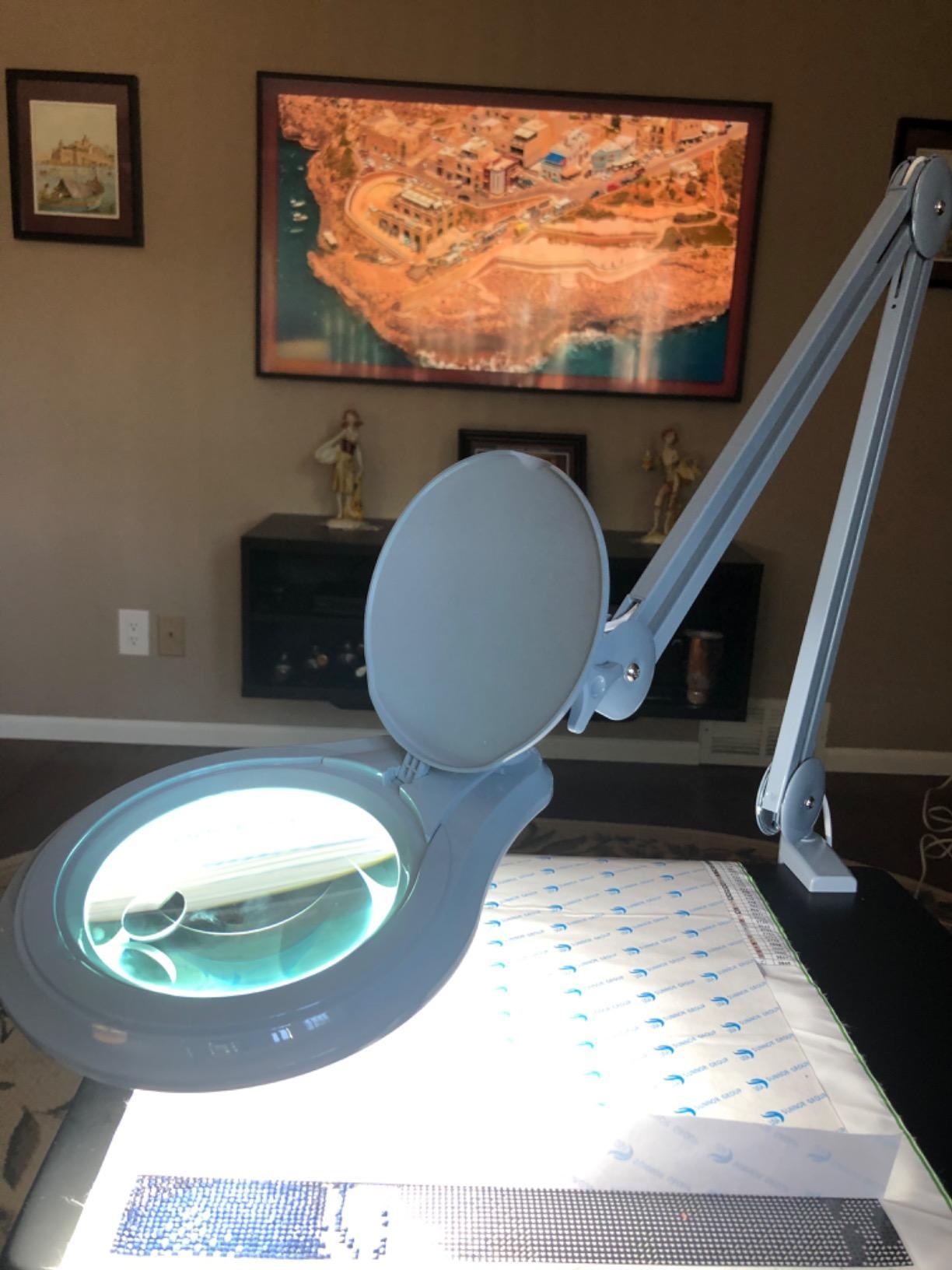

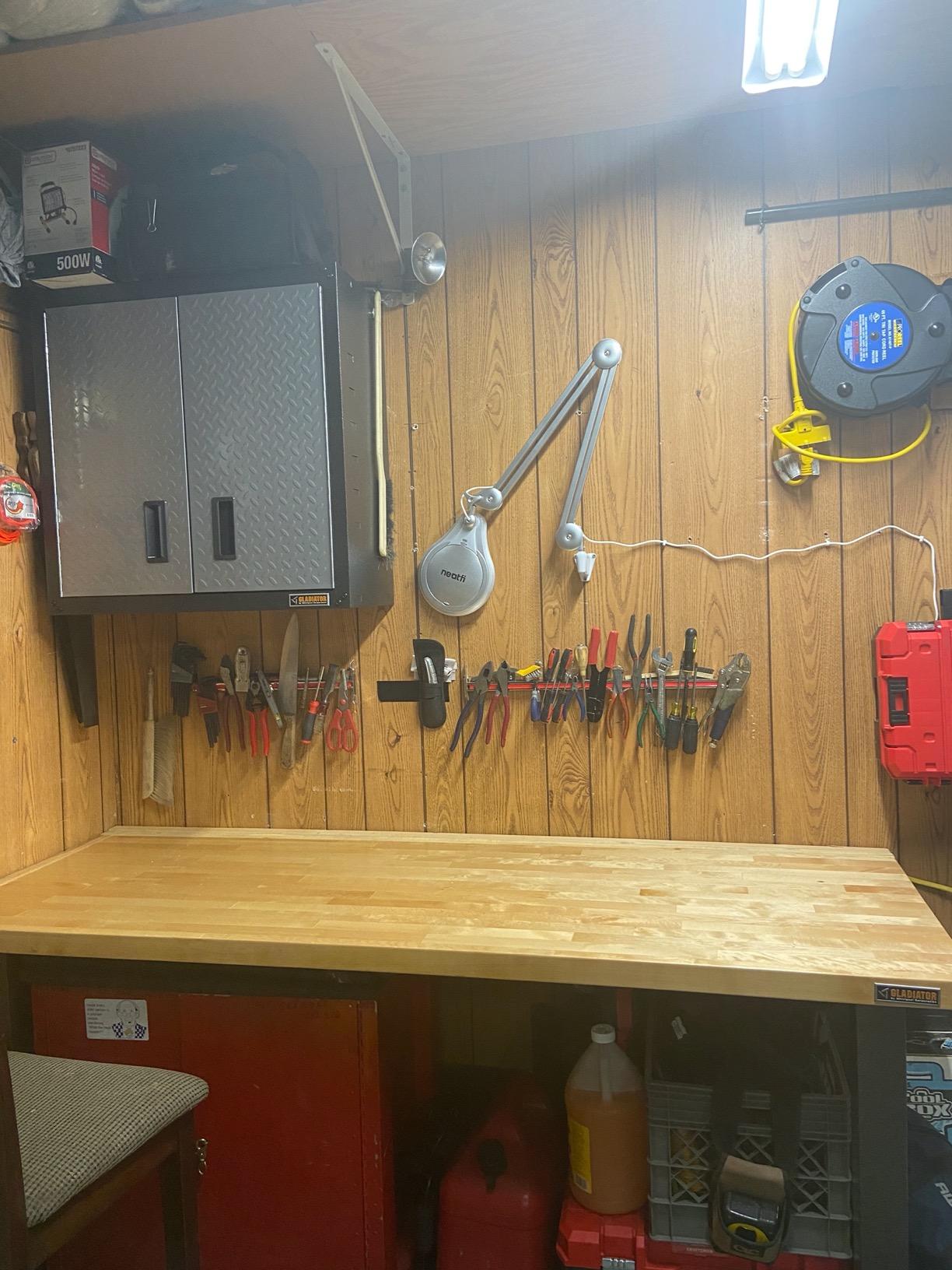

5. Neatfi Bifocal 5D plus 20D 1200 Lumens – two magnifications in one head
Neatfi LED Bifocal Magnifying Lamp, 1200 Lumens, 5D + 20D Lens (Black)
Bifocal 5D plus 20D glass lens
60 SMD LEDs, 1200 lumens
36-inch arm, 360-degree rotation
Clamp to 2.7 inch desks
Pros
- Wide 5D zone and a 20D precision inset in one head
- 1200 lumens from 60 SMD LEDs with no hot spots
- 36-inch arm reaches well over a bench
- Substantial build with a deep-reaching clamp
- Microfiber cloth and 3-year warranty included
Cons
- 20D inset covers a very small area
- Highest cost in this class of magnifier
- Touch controls need a clean finger
The bifocal arrangement is the idea here: a 5 diopter outer lens for general board work with a 20 diopter inset you drop into for a single joint. In practice you use the outer ring most of the time and slide into the inset when you need to check a pad or confirm a bridge, which is exactly the workflow of a soldering session.
Light comes from 60 SMD LEDs at 1,200 lumens spread evenly enough to avoid a hot spot in the middle of the lens. Even distribution matters on a board because a hot spot in the center of a lens makes it harder to judge whether a joint is shiny or simply reflecting.
The arm is the most capable in this roundup for reach: 36 inches of flexible arm with 360-degree rotation, on a clamp that handles desk edges up to 2.7 inches thick. That reach means the head can sit over a board placed at the far side of the bench rather than forcing the board toward you.
The trade-off is cost relative to single-lens lamps of similar brightness, and the small size of the 20 diopter zone, which is a pinpoint tool rather than a general viewing lens. Touch controls also mean a fingerprint on the panel changes your setting mid-task.
When the bifocal layout pays off
If you split your time between assembly and inspection, the outer 5 diopter zone handles the assembly and the 20 diopter inset handles the inspection, so you never reposition the board between the two.
What you give up
You pay more than a single-lens lamp of the same brightness, and if your work is uniformly fine-pitch, a dedicated high-power lens with a wider usable area will serve you better.

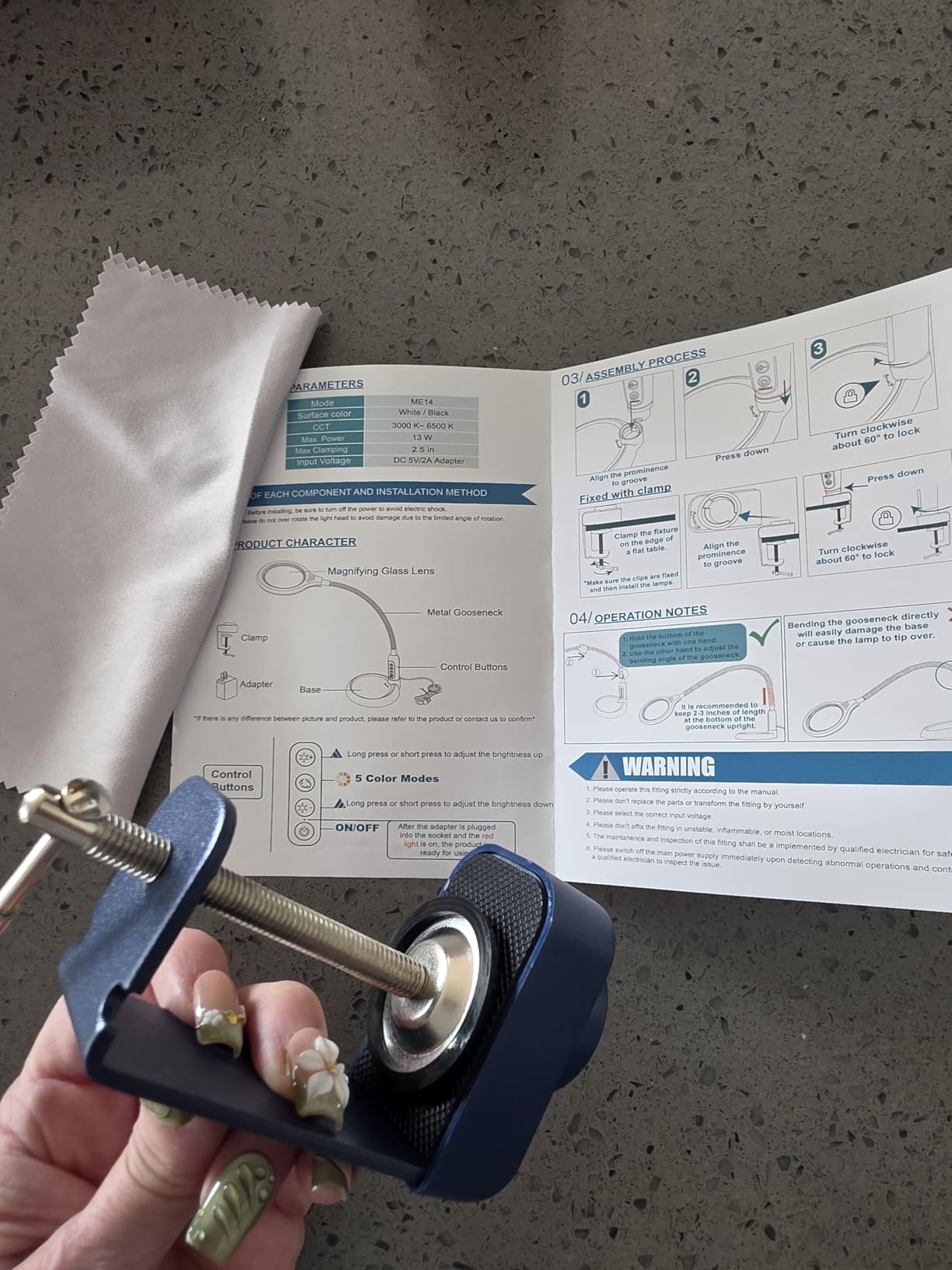

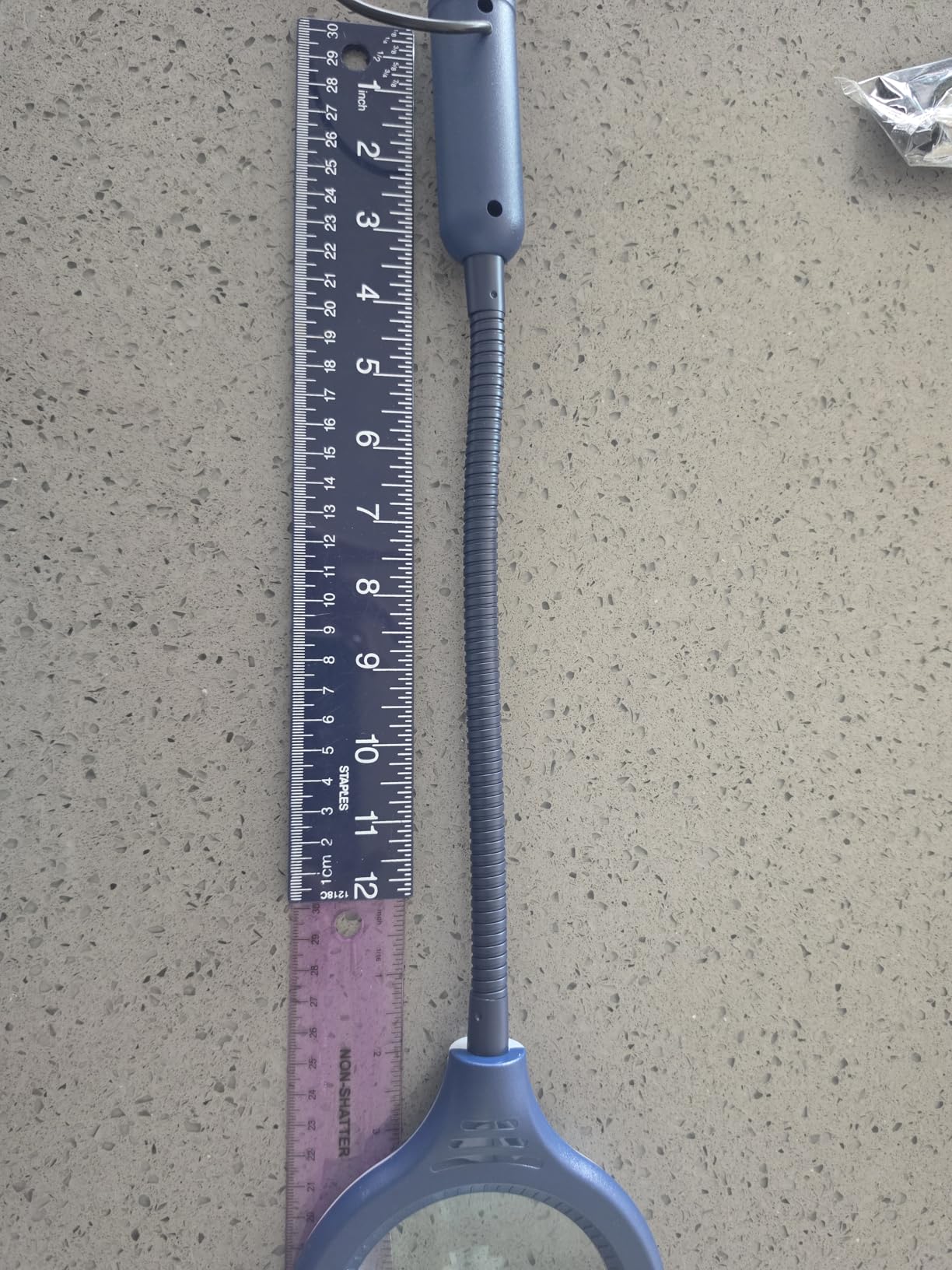

6. TOMSOO 10X Real Glass Clamp Lamp – the best all-round high-power pick
TOMSOO 10X Magnifying Glass with Light and Clamp, 5 Color Modes Stepless Dimmable Lighted Magnifier with Stand, Flexible Gooseneck LED Desk Lamp Hands Free for Craft Reading Painting Hobby Close Work
10X real glass, 5.2 inch lens
5 color modes, stepless dimming
Up to 1500 lumens
Head-mounted controls
Pros
- Real glass lens with a stable focal length
- Five color modes and stepless dimming to 1500 lumens
- Head-mounted buttons instead of a cord switch
- Wide padded clamp jaw grips thicker bench edges
- 1.7 kg build holds the head steady
Cons
- Very shallow depth of field at this power
- 10X label reflects diopter math so zoom feels lower
- Clamp takes bench space a weighted base would not
If you need real magnification with good light control, this is the one we keep reaching for. The 10X real glass lens holds a stable focal length, which means once you find your working position the view stays put instead of drifting as you move, and that stability is the difference between inspecting and fighting the lens.
Five color modes with stepless dimming up to 1,500 lumens is the best lighting control in this group. On a soldering bench that matters more than raw lumens, because you can drop the brightness for a reflective joint and push it up when you are reading silkscreen on a dark board.
Two design choices show that someone thought about actual bench work. The button controls sit on the gooseneck head, so you are not reaching down a cord to find a switch while an iron is cooling in the holder. The patented two-in-one clamp has a wider jaw with protective pads on both sides, which grips thicker bench edges and does not mark the surface.
At 1.7 kg the head and gooseneck combination is heavy enough to stay put, which is the opposite of the light builds that drift. The limitation is inherent to the power: at 10X the depth of field is shallow, so your head must hold a fairly precise distance and the usable area is small.
How to live with shallow focus
Rest your chin lightly on a bench-edge support or brace against the bench and treat the working distance as a fixed point. Once the distance is muscle memory, the focus problem largely disappears.
Where it beats a microscope
You keep both hands free, you can move between several boards, and you still see a wide enough area to keep track of polarity. For rework on boards where only one joint is suspect, that flexibility is worth a lot.

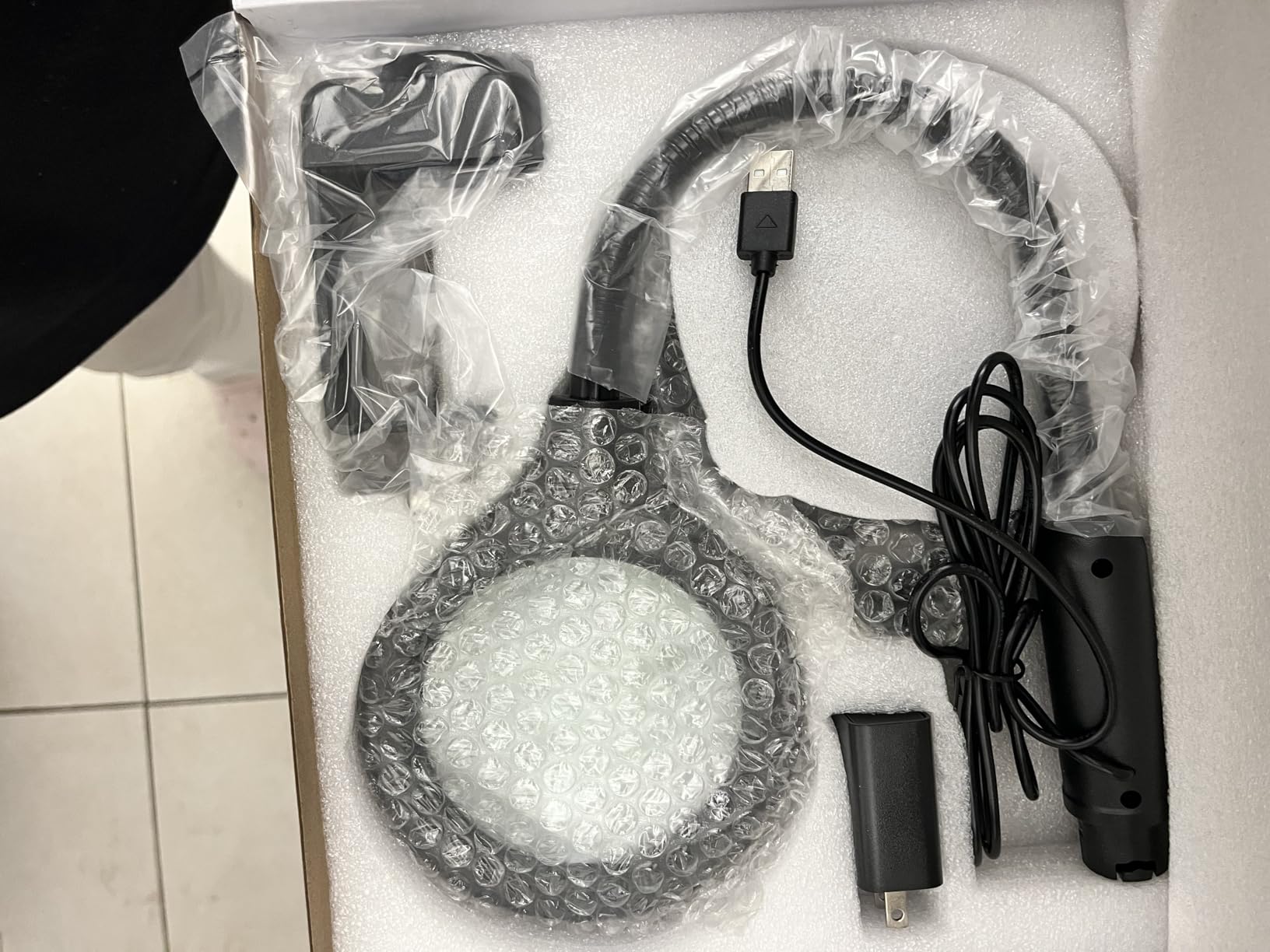

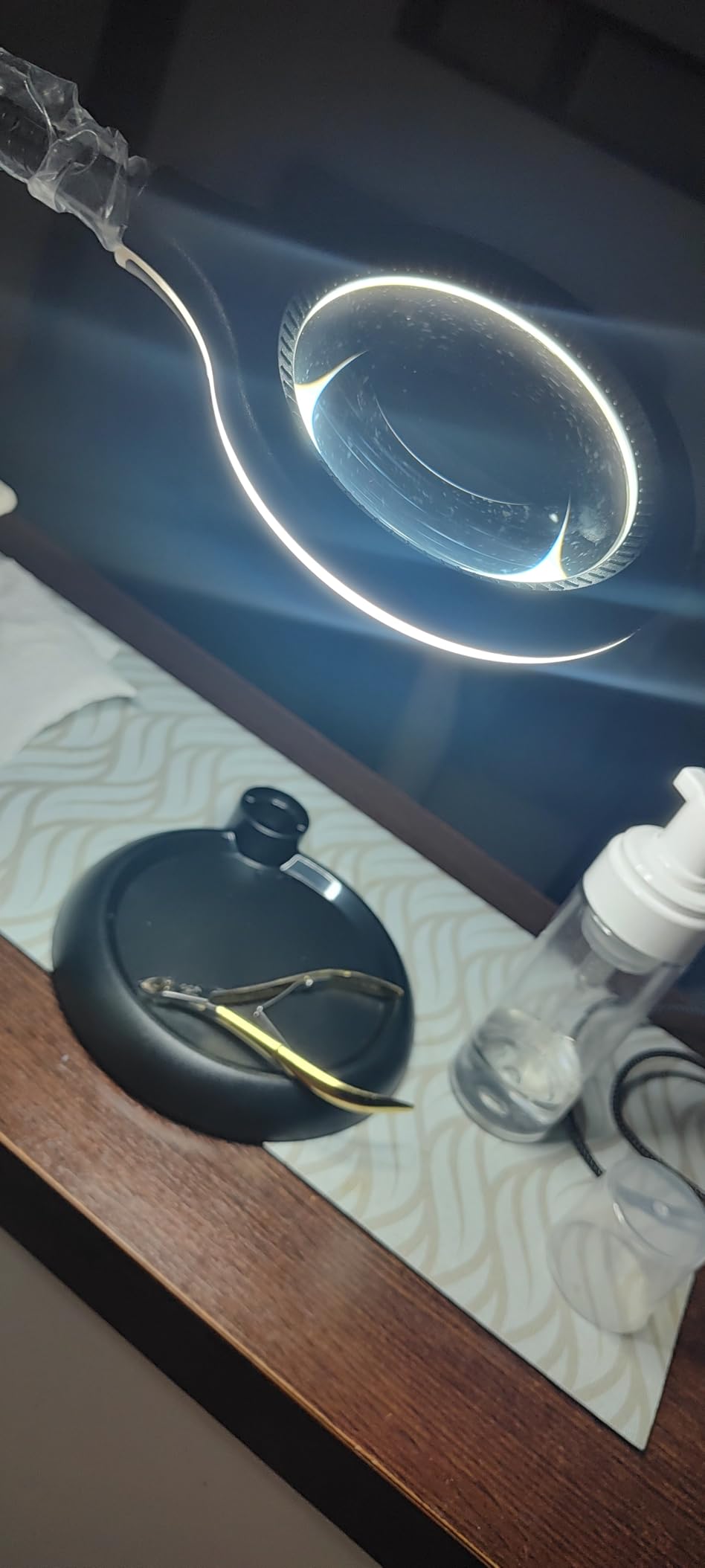

7. RackydigPro 12X Clamp Magnifier – for pinpoint joint inspection
12X Magnifying Glass with Light and Stand, Real Glass, LED 5 Color Modes, Brightness Stepless Dimming Lighted Magnifier Hands Free with Flexible Gooseneck Desk Clamp Lamp for Close Work, Craft, Hobby
12X real glass, 3.75 inch lens
Ring light to 1500 lumens
5 color modes, stepless dimming
2.5 inch padded clamp jaw
Pros
- Strong real glass magnification for joint and pad inspection
- 1500-lumen ring with five color modes
- Head button control removes mid-task cord reaching
- Clip opens to 2.5 inches with padded jaws
- 1.4 kg head and gooseneck for stable positioning
Cons
- 12X gives a narrow clear zone and shallow focus
- Sustained close work fatigues the face
- Clamp-only design needs a bench edge
This is the highest power lamp here, and we include it because for one specific job it is the right tool: confirming whether a single joint on a dense board is bridged, lifted or cold. At 12X on real glass the pad edges and solder fillet are unambiguous.
The ring light reaches 1,500 lumens with five color modes and stepless dimming, and the button control on the head means you can adjust brightness without letting go of the workpiece. The 2.5 inch jaw with protective side pads grips most bench edges and does not scratch them.
At 1.4 kg the head and gooseneck sit steady over a board without creeping, which matters at this power because even a small drift changes your focal plane. The lens focal length is set for miniature, jewelry, soldering and beading work, so it is a genuine optical element rather than a stamped plastic one.
Be honest about the cost of that power. The clear zone is narrow, focus is shallow, and you work with your face close to the lens, which fatigues quickly over a full session. A clamp-only design also means you need a bench edge, so it will not work on a flat table in the middle of a room.
Buy it for inspection, not for assembly
The 12X zone is for checking one joint at a time. If you try to assemble a whole board through it, you will spend the day moving the board instead of soldering it.
Know when to stop climbing
Beyond this power the working distance becomes uncomfortable and the field becomes useless for navigation. If you need more than a 12X lamp gives you, a stereo microscope is the honest next purchase.

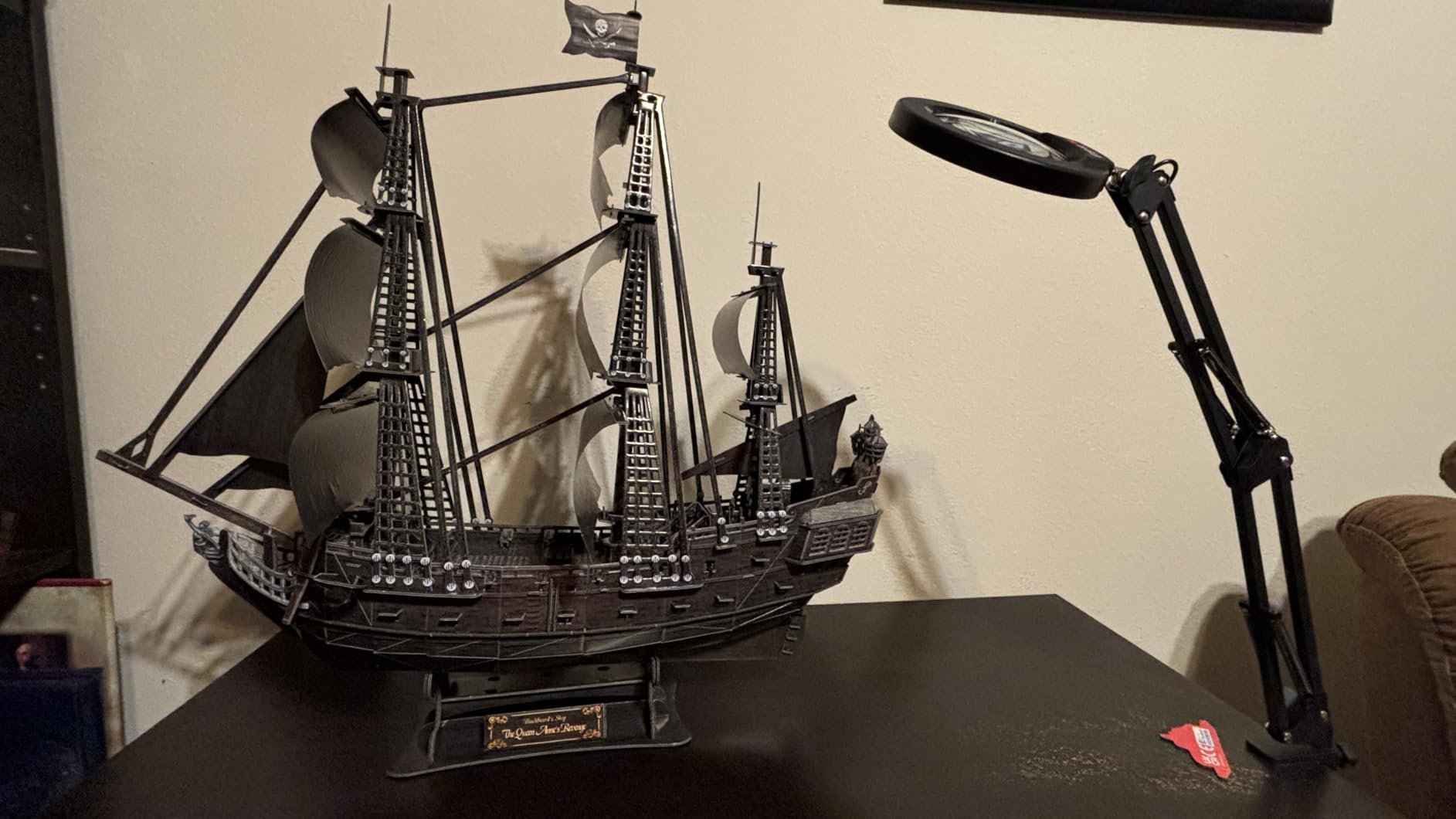

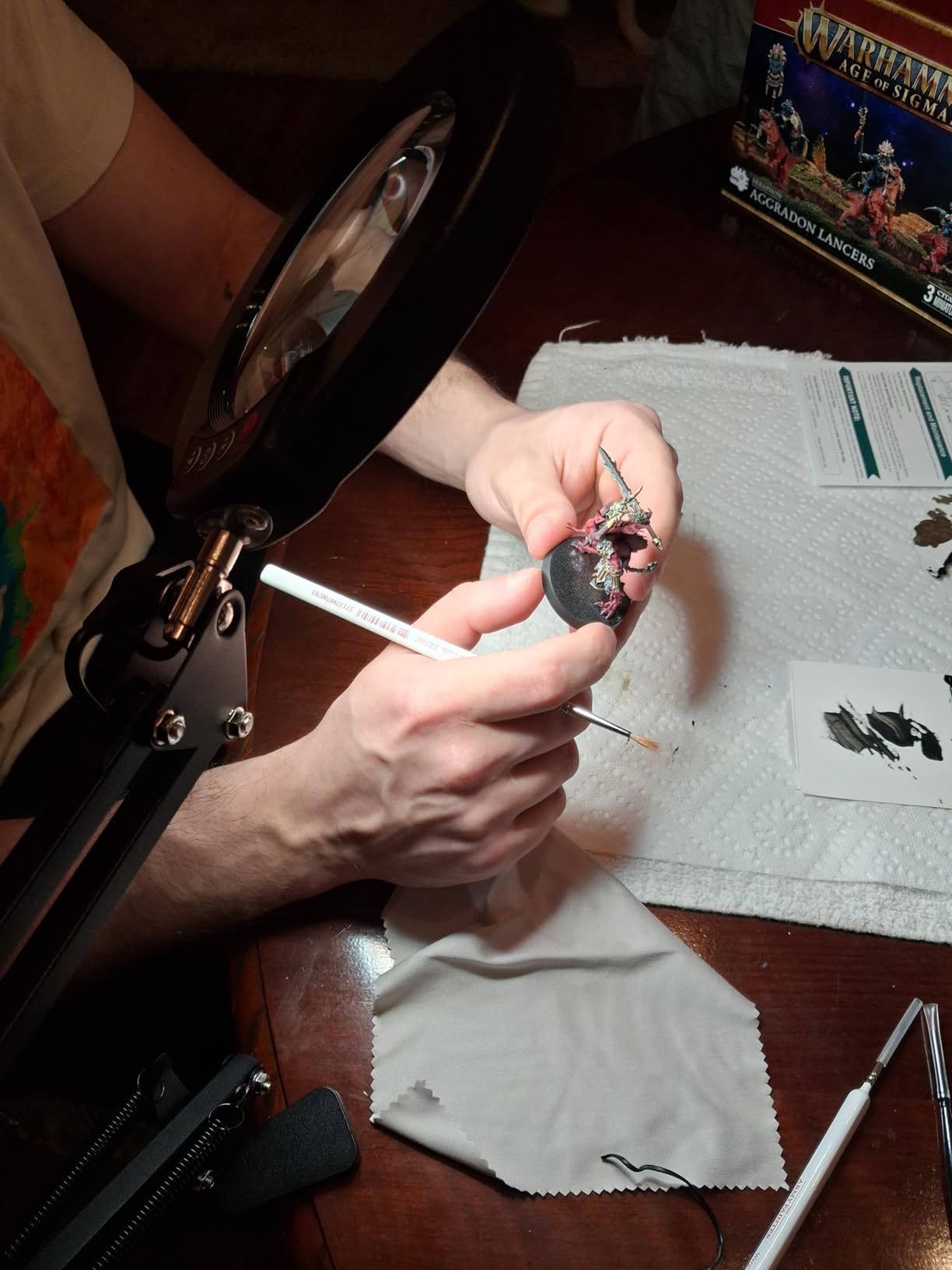

8. Coyeth 10X Glass Lens Clamp Lamp – a well-equipped 10X with a strong arm
Coyeth 10X Magnifying Glass with Light and Clamp, Real Glass Stand Lighted Magnifier, 5 Color Modes Stepless Dimmable LED Desk Lamp Hands Free for Crafts Hobby Reading Painting Sewing Close Work
10X on 4.3 inch real glass
72 LED ring over 100000 hours
Four springs, three tension knobs
Head button and memory recall
Pros
- 4.3 inch real glass lens with a clear center
- Five color modes with stepless dimming and memory
- 72 LED ring rated beyond 100000 hours
- Four-spring arm resists sagging
- Tool-free clamp to 2.1 inch surfaces
Cons
- Arm can still drift during precise work
- Clamp mechanism rated lower quality than the rest
- Edge distortion means centering your eye on the lens
The Coyeth is the most fully specified 10X in the group: a 4.3 inch real glass lens, a 72 LED ring, five color modes, stepless dimming and a memory function that recalls your last setting. That memory is a small thing that saves real time when you alternate between a bright and a dim setting all session.
Its standout mechanical feature is the four-spring, three-tension-knob arm. More springs means more holding force and less tendency to creep downward, and the extra tension knobs let you tune the resistance to your own arm weight and head weight.
Installation is tool-free with a clamp that handles surfaces up to 2.1 inches, and a USB connection keeps the bench free of an inline power brick. Fifteen variants cover 10X, 12X and 30X-plus-10X heads on short, long and clamp configurations, so the same model family covers a wide range of benches.
The recurring complaint is not the light or the lens, it is the arm. Several owners report the head drifting or settling out of position during precision work even when tightened, and a minority rate the clamping mechanism as the weakest part of an otherwise solid build. Edge distortion also means you have to keep your eye on the lens center.
Why arm rigidity beats raw power
Forum consensus on illuminated magnifiers is consistent on this point: longevity and arm stability matter more than lumen count. A lamp that stays where you put it will be used every session, and one that creeps will get ignored.
What to tighten first
Set all three tension knobs before your first job and re-check them monthly. Drift on this design is usually a tension setting, not a failed spring.
9. VUEJIC 10X USB Powered Magnifier – the tidiest USB bench setup
VUEJIC 10X Magnifying Glass with Light and Clamp, Magnifier with Light Hands Free3 Color Modes Stepless Dimmable, 72 LEDs Real Glass Lens Magnifying Lamp for Close Work, Repair, Reading, Craft
10X optical lens
72 LEDs, 3 colors, 10 levels
360-degree dual aluminum arms
USB power with adapter
Pros
- Clear 10X optical lens with no reported distortion
- Three colors with ten brightness levels cover most tasks
- 72 LED array gives soft even light for long sessions
- Two aluminum arms reach and hold many angles
- USB power keeps the bench uncluttered
Cons
- Only three light colors against five on many rivals
- Lightest build in the group at 1.09 kg so the arm flexes more
- 12-month warranty is shorter than some rivals
The VUEJIC solves a specific bench problem: where the power comes from. It runs on USB with an adapter included, so on a bench that already has a powered hub or an outlet within reach you avoid a bulky inline brick sitting next to the iron and the solder spool.
Light quality is good for the power level, with a 72 LED source across three colors and ten brightness steps from 10 to 100 percent. Reviewers doing repair, embroidery, painting and reading report a clear 10X optical lens with no distortion and no reported eye strain from distortion.

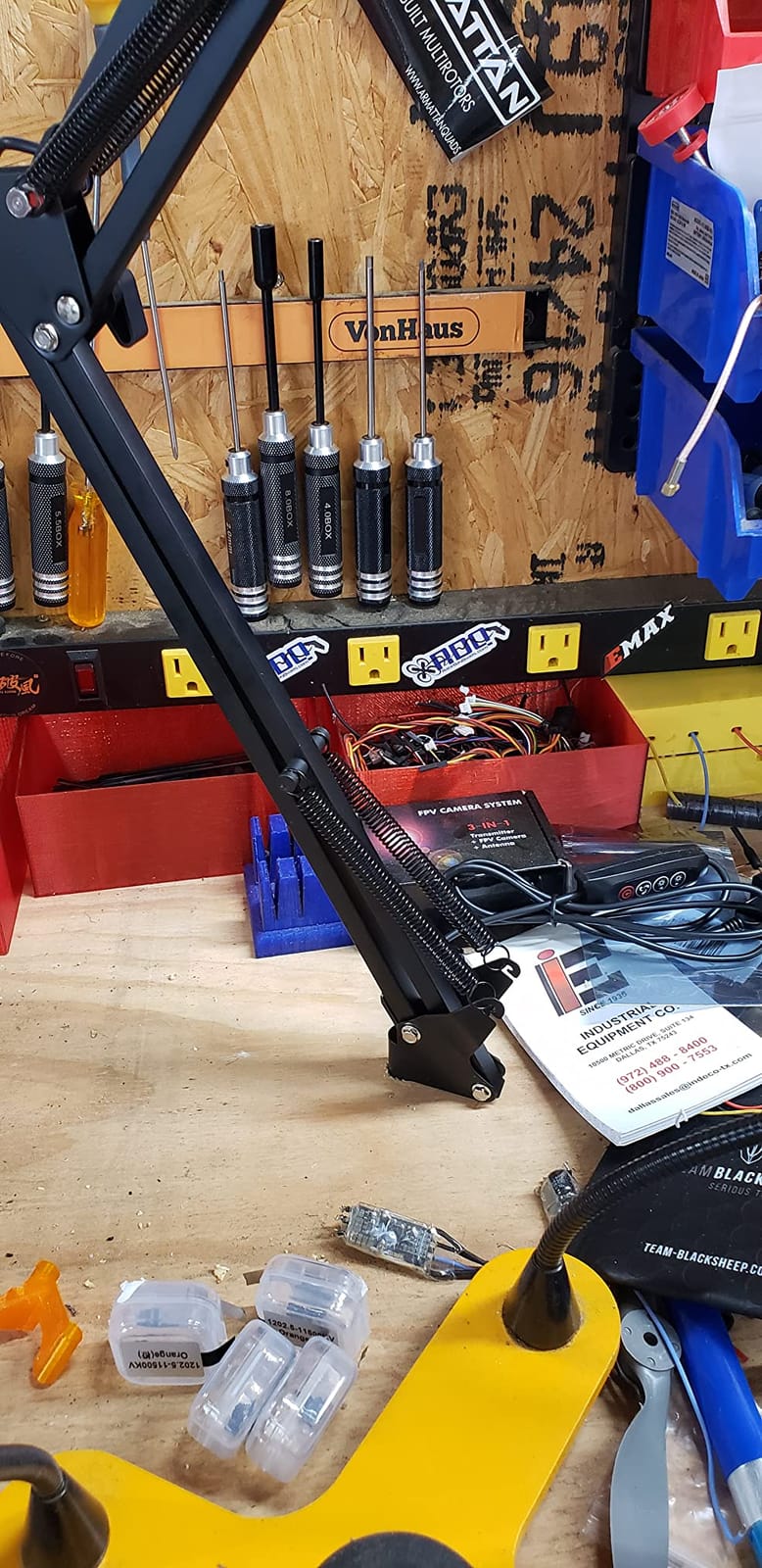

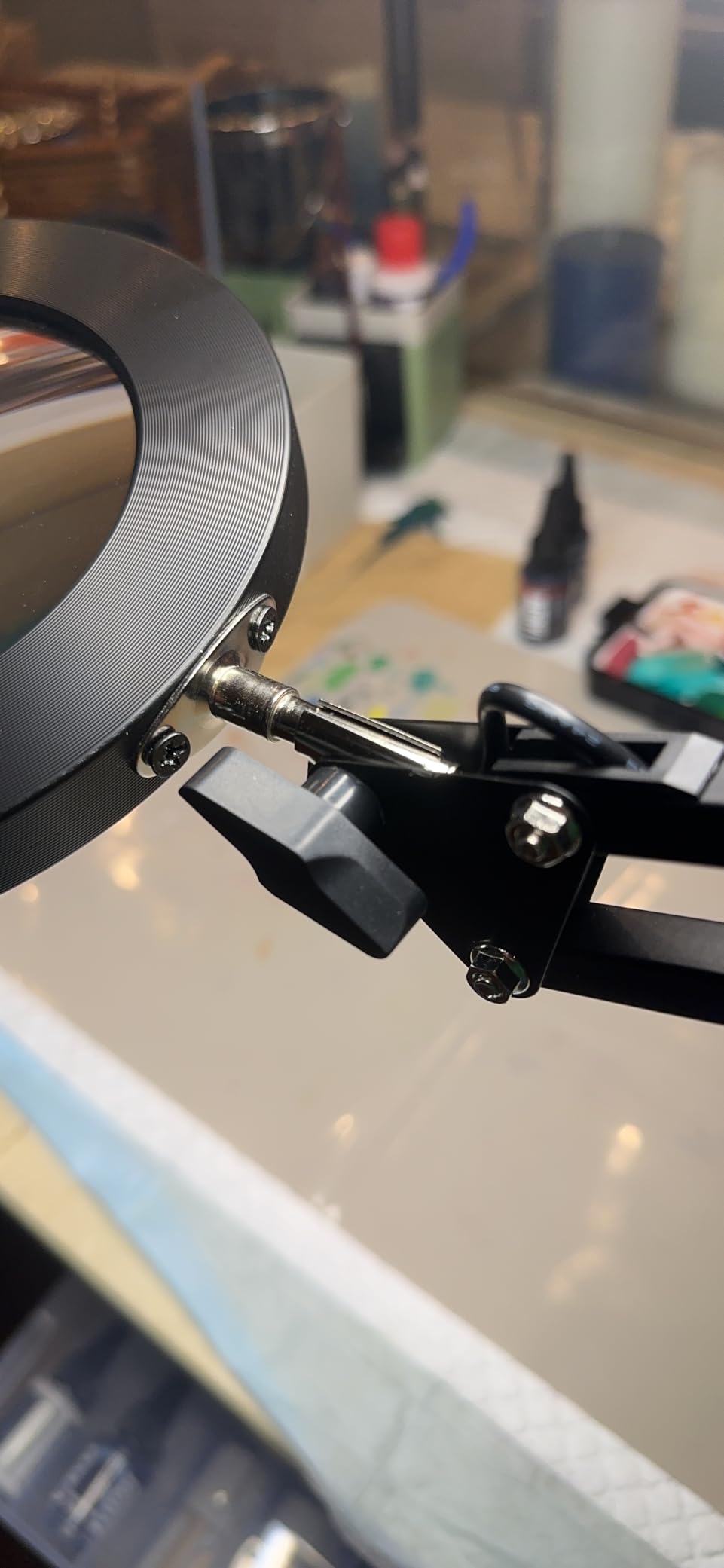

The head rotates 360 degrees on two elongated aluminum arms, and the tool-free clamp handles surfaces up to 2.3 inches thick. Setup is quick, which matters if you move between a bench and a side table for different jobs.
Two limitations are worth weighing. At 1.09 kg it is the lightest build we tested, so the arm flexes more under load than the heavier clamps, and you will be re-tightening it. The 12-month warranty is also shorter than the three years offered by several rivals at similar output.
Best use: portable, uncluttered benches
If your bench has USB power nearby and you move your setup around, this is the tidiest option here. Three colors and ten levels cover most inspection and assembly lighting needs.
Why three colors is not a problem
On a soldering bench you rarely need more than warm, neutral and cool. The five-mode lamps are nicer for craft work with mixed materials, but for judging a solder fillet the extra modes add little.
10. Drdefi 12X Rectangular Glass Magnifier – the widest usable view at high power
Drdefi 12X Square Magnifying Glass with Light and Stand, Real Glass LED Lighted Magnifier, 5 Color Modes Stepless Dimmable, Hands-Free Mag Desk Lamp with Clamp for Reading Craft Hobby Close Work Black
12X real glass rectangular lens
5 color temperatures, stepless dimming
No-glare LED ring
Includes weighted base and clamp
Pros
- Rectangular lens shows more of the workpiece than a round lens
- Real glass described as crystal clear and sharp
- Five color temperatures with stepless dimming
- Holds position when adjusted with no bounce-back
- Both a weighted base and a clamp are included
Cons
- 12X has a narrow sharp zone and can feel closer to 10X
- USB power needs a hub or adapter on the bench
- Larger lens and footprint take more bench space
The shape is the story here. A rectangular real glass lens at 12X shows a larger flat working area than a round lens of the same power, which means fewer repositioning moves when you are inspecting a run of joints or a small three-dimensional assembly. Crafters and repair technicians consistently single this out as the differentiator.
Lighting is tuned for long sessions: five selectable color temperatures, stepless dimming and a no-glare ring. The switch sits on the lamp head, and reviewers report the head holds its adjusted position with no bounce-back, which is a meaningful improvement on a lamp that springs back at you.
It is the only lamp here that includes both a weighted rectangular base and a clamp, so you can choose the mount after the lamp arrives. The clamp handles tabletops and workbenches up to 2.1 inches thick, and power is USB with the base, clamp, lens and arms all in the package.
Note that reviewers report the effective magnification feels closer to 10X than the stated 12X, which is normal for high-power lenses labeled by diopter math. The rectangular lens and stand also take more bench space than a round model, so give it a clear corner.
Why shape beats power at the top end
At high magnification the clear zone is small no matter what, so a wider rectangle of usable glass beats a slightly stronger but tighter circle. You see more of the workpiece per head movement.
Plan the bench footprint
Plan where it sits before you commit. The rectangular lens and dual arms need real estate, and a weighted base plus a clamp in the same package means you can switch mounts as your bench layout changes.
Magnifying Lamp vs Microscope: When to Make the Switch
Here is the decision rule we use: stay with a magnifying lamp up to about 5 diopters, which is roughly 3x, and move to a stereo microscope the moment your problem is a single joint on a fine-pitch package such as a QFN or BGA.
The reason is field of view and depth of field, not raw power. A lamp gives you a wide, forgiving view where you can see the whole board, keep orientation, and work with both hands. A microscope gives you an enormous image of a small area with real depth, but you work at a fixed focal plane and your eyes take strain faster.
Forum consensus lines up with that rule. In a Rocketry Forum thread on diopter power for surface-mount work, the Aven ProVue 5-diopter LED lamp is repeatedly named as the bench standard for surface-mount circuit boards. On the EEVblog illuminated magnifiers thread, users describe their bench lamps working well right up to the point where they need a microscope to see what is actually happening.
On r/soldering the argument comes out the same way, with hobbyists pointing out that they solder a lot while rarely working on anything small enough to justify a microscope, and others complaining that the real bottleneck is a poor magnifier rather than missing magnification. That is why the lens quality question matters more here than any other spec in this roundup.
A practical test: if you can already see whether the joint is wet and shiny, you need better light, not more power. If you cannot tell what you are looking at, a lamp has reached its limit.
How to Choose a Magnifying Lamp for a Soldering Bench
Glass or acrylic. Every lamp in this roundup uses a glass lens, and that is the single most important filter. Acrylic lenses are lighter and cheaper but flex, soften at the edges and can make a good joint look poor, which is the exact failure mode users complain about most. Optical glass holds a stable focal length and stays sharp under heat and long sessions.
Lumens and color modes. Around 1,200 to 1,500 lumens is plenty for most benches, and more is not automatically better because a very bright ring on a shiny joint creates reflections that hide the very detail you are inspecting. Color temperature selection matters more than raw output for judging a fillet, which is why the multi-mode lamps edge ahead on inspection work. Color rendering index is rarely published for these lamps, so treat claims of high CRI as unverified unless the listing states a number.
Clamp or weighted base. A clamp frees bench space and lets the arm reach over a wide area, but it must fit your bench edge and thickness, and a clamp takes up a mounting spot that the fume extractor or an iron holder may want. A weighted base needs no edge and never sags, but it occupies a chunk of bench permanently. If you are still choosing your bench itself, our guides to adjustable weight benches and benches with generous work surfaces cover the surface area and stability questions that affect lamp placement.
Arm rigidity and sag. This is the durability complaint that comes up most often in forum threads. Springs, tension knobs and the weight of the head all matter more than the lumen figure. Check for multiple springs or a lock-off tension screw, and re-check the tension every few weeks because arms settle with use.
Bench placement. Put the lamp above and slightly behind the board so light comes over your shoulder rather than from your eye line, which avoids your own head shadow falling across the joint. Keep the fume extractor hose on the opposite side from the lamp head so the arm does not have to reach across the intake, and park the iron in its holder just inside the ring so the tip stays lit. Aiming the ring at a solder spool produces a bright reflection, so angle the head slightly off the shiny surface.
Glare from ring lights. A ring of LEDs around the lens puts a bright halo on any reflective surface, which can read as a defect that is not there. Lamps with stepless dimming solve this by letting you drop the brightness until the halo disappears, and that is a genuine advantage over single-mode lamps on shiny boards.
Hands-free integration. A helping-hands station with a built-in magnifier, like our editor’s choice, solves the two-hands problem outright. Otherwise, budget for a separate third hand and an iron holder, because a lamp that makes you put the board down to reposition defeats the purpose.
Space before you buy the lamp. A lamp only earns its place if the bench has room for the head, the arm swing and the iron holder at the same time. Our picks for sturdy weight benches and benches with built-in storage are worth checking if your current surface is cramped, because a clamp with nothing to clamp to is the most common reason a good lamp ends up unused.
Maintenance. Keep the microfiber cloth that ships with most of these lamps, clean the lens monthly, and use the folding lens cover where one is supplied. Check arm tension monthly, and if a dimmable LED section flickers, replace the driver rather than the whole head. A three-year warranty is worth more here than a headline lumen number, because lenses and arms are the parts that fail.
Frequently Asked Questions
What is the best magnifying tool for soldering?
For most soldering benches the best tool is a clamp or base mounted LED magnifier with a real glass lens at 2 to 5 diopters, which is about 2x to 3x magnification. It keeps both hands free for the iron and solder while you inspect the joint. Add helping hands so the board stays positioned under the lens. Move to a stereo microscope only when your problem is a single joint on a fine-pitch package.
What magnification is good for soldering?
Around 3 diopters, roughly 2.5x, is the sweet spot for most soldering work. It shows a wide enough area to keep the whole board oriented while still letting you judge a fillet and spot a bridge. Use 2 diopters for through-hole work and headers, and step to 5 diopters or more only for fine-pitch surface-mount inspection.
What is the best magnifying glass for soldering?
A hands-free LED magnifier with a real glass lens beats a handheld glass every time on a soldering bench, because you need both hands for the iron and the solder. Look for 2 to 5 diopters of power, at least 1,200 lumens, several color temperature modes, and a mount that holds position without creeping. Acrylic lenses are the ones to avoid.
What are the best magnifying glasses for electronic repair?
For electronic repair the strongest performers combine a real glass lens, a bright LED ring with tunable color temperature, and a rigid mount. A bifocal 5 diopter plus 20 diopter head covers both board-level work and single-joint inspection, while a 10X real glass lamp suits fine-pitch rework. For phone and laptop board work, a stereo microscope still outperforms any lamp.
Which is better, 3 diopter or 5 diopter?
Choose 3 diopters for general bench work because the field of view stays wide enough to keep both hands oriented, and step to 5 diopters when most of your work is fine-pitch inspection. Remember that 3 diopters is about 2.5x and 5 diopters is about 3x, so the difference is real but smaller than the labels suggest. Many users run 3 diopters daily and reach for higher power only to check one joint.
What magnification is equivalent to 5 diopters?
Five diopters of lens power is approximately 3x magnification, because one diopter equals 1.25 times magnification. The same conversion gives 2 diopters at about 2x, 3 diopters at about 2.5x, 8 diopters at about 4x, and 10 diopters at about 4.5x.
What is the best magnifying lamp for model making?
Model making rewards a wider view and warm light, so a weighted-base lamp with a 2.25X glass lens and soft 3000K illumination is the easiest all-round choice, while a 5X real glass lamp is better for detail painting and tiny parts. For 3D prints and subassemblies that turn in your hands, a rectangular lens shows more of the model per head movement than a round one.
What is the best magnifying lamp for crafting?
For crafting, pick the mount that suits your table: a weighted base for a fixed desk and a wide-jaw clamp for a thick or shared workbench. Crafters who sew, bead or paint usually prefer 5X to 10X real glass with several color modes, because the color setting changes how accurately the material reads. Add a lens cover if you work in a dusty space.
Conclusion: The Best Magnifying Lamps for Soldering Benches in 2026
After weeks with all ten, the XYK Helping Hands Soldering Station is our pick as the best magnifying lamp for soldering benches, because the only spec that changed our daily work was the one that let the board, the part and the wire sit inside the light while both hands stayed on the tools. The 3X lens is enough to judge wetting and spot a bridge on most boards, and the steel base does not walk when you push an iron against a pad.
If your work is mostly through-hole, harnesses and connectors, the Brightech LightView Pro Flex is the most proven option, with the highest rating in the group, a heavy weighted base and soft 3000K light that is easy on long sessions. When you need genuine magnification for fine-pitch rework, the TOMSOO 10X with its real glass lens and stepless dimming gives you the light control that single-mode lamps cannot.
The rule that matters most, though, is simpler than any of these: buy real glass, buy a mount that holds position, and stop climbing in power the moment one joint is all you need to see. Past that point in 2026, a stereo microscope is the honest tool, and no lamp on this list will change that.
