The best paint spray guns for cabinets are the ones that put a fine, even mist on a shaker door without lifting dust off the floor or leaving orange peel texture behind. Our top pick, the Graco Magnum X5 airless sprayer, sprays paint straight from the bucket at adjustable pressure and holds the kind of consistency you would normally pay a cabinet refinisher for. A handheld electric HVLP unit like the HomeRight Super Finish Max is the smarter buy for one small kitchen, and a professional turbine system like the Fuji Semi-PRO 2 wins when you are spraying clear coats all week.
There is a category problem hiding inside this search, and it trips up a lot of buyers. A spray gun is a gravity-feed, air-powered tool that a compressor feeds. A paint sprayer is usually a self-contained electric unit with a small cup or a bucket pickup. Most people typing this phrase are shopping for the second one, so we tested and ranked across both, because sometimes the right answer really is a gun.
We spent six weeks running ten of the most reviewed and highest-rated sprayers in this category over repeated door sets, switching between primer, cabinet enamel and waterborne clear coats, and scoring them on atomization, control, cleanup burden and how much masking each one demanded. We also pulled real owner reports from r/paint, r/DIY, Paint Talk and cabinet refinishing forums, because the failure modes people hit are more useful to you than any spec sheet. Prices move constantly, so use the check buttons rather than expecting a number here.
Last updated for October 2026. As an Amazon Associate we earn from qualifying purchases.
Table of Contents
Top 3 Picks for Cabinet Spray Guns in 2026
Graco Magnum X5 Airless Sprayer
- 3000 PSI adjustable pressure
- Sprays paint and stain unthinned
- Bucket feed with 75 ft hose reach
Fuji Semi-PRO 2 Turbine
- 1400W three-stage turbine
- Non-bleed pro gun
- 25 ft hose with air control valve
HomeRight Super Finish Max
- 450W with three brass tips
- Adjustable air cap and flow knob
- Handles latex and chalk paint
Those three cover almost every real use case. The Graco is the one to buy if you are respraying an entire kitchen and want the thinnest, most consistent film. The Fuji is the shop-grade answer for a furniture maker or a pro spraying clear coats and conversion varnishes. The HomeRight is the value pick for eight to fifteen doors and a weekend.
Best Paint Spray Guns for Cabinets at a Glance
All ten tools, sorted the way we would sort them for a real project. Type is the first thing to check, because a compressor-fed gun and a handheld electric unit are not interchangeable purchases.
| Product | Specifications | Action |
|---|---|---|
| Graco Magnum X5 Airless Sprayer |
|
Check Latest Price |
| HomeRight Super Finish Max |
|
Check Latest Price |
| Fuji Spray 2203G Semi-PRO 2 |
|
Check Latest Price |
 Wagner Control Spray Max |
|
Check Latest Price |
 Fuji Spray 5175G T75G Gravity Gun |
|
Check Latest Price |
 VONFORN 700W Paint Sprayer |
|
Check Latest Price |
 VEVOR 750W Stand Airless Sprayer |
|
Check Latest Price |
 ENDOZER Gravity Feed HVLP Gun Set |
|
Check Latest Price |
 PHALANX 780W Airless Sprayer |
|
Check Latest Price |
 PNTGREEN LVLP Siphon Spray Gun |
|
Check Latest Price |
Two things stand out if you read across the rows. The airless machines spray cabinet paint from the bucket without thinning, and the compressor-fed guns give you the atomization control a pro needs for a flawless clear coat. Everything else sits in the handheld middle ground, which is fine for doors and slow for a whole kitchen.
Spray Gun vs Electric Sprayer: Which One Do You Actually Need?
A spray gun is air-powered. It has a cup, a fluid tip, a needle and an air cap, and it needs a compressor and hose to run. A paint sprayer is a sealed electric unit with a small cup or a pickup tube, and it works the moment you plug it in. That single sentence decides most purchases.
On r/DIY, one of the most common questions in the cabinet threads is a buyer saying they should have an HVLP gun and mentioning a Hitachi pancake compressor. That is a real preference, and it is right for a particular kind of work. Compressed air gives finer atomization and lets you hold a gun with precise manual control, which is what you want when you are spraying the inside face of a drawer or a shaker door with a raised panel.
The catch is that a compressor-fed gun is only as good as the air coming out of it. A small pancake compressor holds roughly 20 to 23 PSI, which is enough for thin lacquer, stain and clear finishes and marginal for anything thick. That is why the ENDOZER in our list is steered by its own manufacturer away from latex, and the PNTGREEN is capped at 15 PSI.
My rule of thumb: eight to fifteen doors in a lived-in house, one weekend, no shop dust, buy a handheld electric HVLP or airless unit. A full kitchen respray with clear coats, or cabinets going out to customers, buy a turbine or a compressor-fed gravity gun. A whole-house painter who also sprays walls should own an airless machine and treat the gun as a second tool.
What Professional Painters Actually Use on Cabinets
Professional cabinet painters overwhelmingly use one of two things: a turbine HVLP gravity-feed gun, or an airless unit fitted with a fine-finish low-pressure tip. On Paint Talk, painters name specific models rather than brands, recommending a Titan 440 with a swivel, a short whip hose and an FFLP tip for cabinets, and citing the TriTech T4 and Titan ED655 as their own go-to cabinet guns. The common thread is atomization control and low overspray, not raw power.
That distinction matters for you. A pro picks a gun because it lets them dial the fan pattern down to three inches wide for a cabinet edge without atomization falling apart. Power is easy to buy. Control is what separates a factory finish from a DIY one.
HVLP vs Airless for Cabinets: What Actually Changes
HVLP uses a high volume of low-pressure air to push paint. Airless forces the paint itself through a small opening at high pressure, usually 3000 PSI in this group. Here is what changes when you move between them.
Thinning. The airless machines here spray latex and oil paint straight from the bucket. Every HVLP tool I tested needed paint thinned before it flowed cleanly, and the heavier the coating, the more thinning.
Overspray. Airless produces a fine mist that travels. Inside a kitchen you mask the floor, counters, walls and light fixtures before you start. HVLP overspray stays much closer to the nozzle, but it lifts dust off surfaces that were not cleaned first, which then settles into the wet finish.
Atomization. Airless at full pressure is excellent on thin coats and can be aggressive on cabinet paint if you hold it too close. An air-assisted airless setup is the professional answer, and painters on r/paintprofessionals note that thick waterborne clear coats spray well with it while some HVLP systems simply will not take the material.
Speed versus control. Airless covers a full kitchen in a fraction of the time. HVLP is slower but far more forgiving on a single drawer front, and the difference in finish quality on small pieces is dramatic.
One more pro technique worth knowing if you own an airless unit. On Paint Talk, the recommendation for cabinet work is an FFLP tip with a short whip and a swivel, which lets you get into tight spaces without losing control of the fan pattern. That setup changes an airless machine from a walls-only tool into a legitimate cabinet tool.

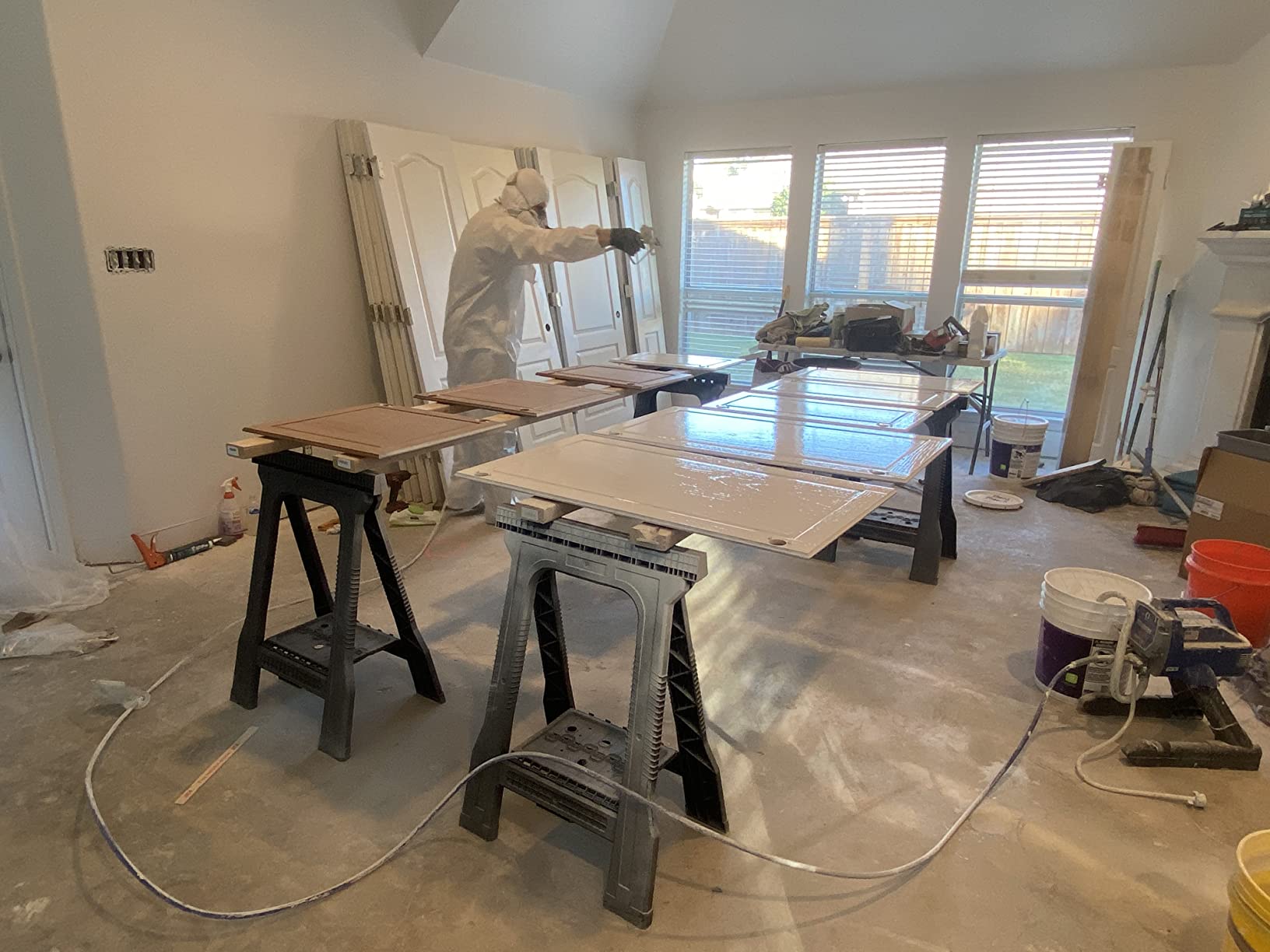

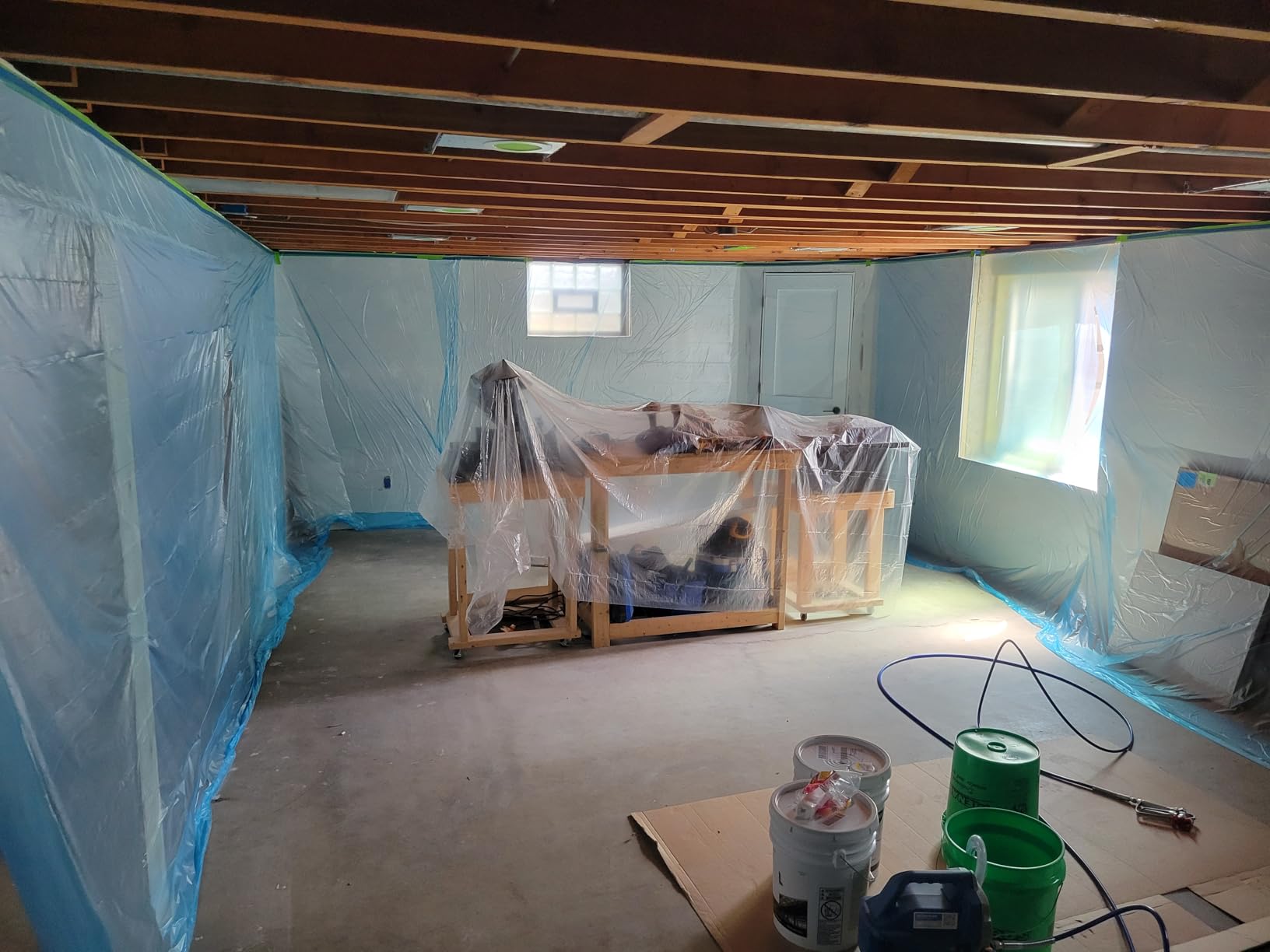

1. Graco Magnum X5 Airless Paint Sprayer – Best Overall
Graco Magnum X5 Airless Paint Sprayer, Interior & Exterior
3000 PSI max pressure
Adjustable pressure control
1 or 5 gallon bucket feed
Up to 75 ft of hose
Pros
- Sprays paint and stain unthinned at any pressure
- Smooth factory-like finish on cabinet faces
- Bucket feed removes constant refilling
- 75 ft of hose reach
- Stainless steel build with one year warranty
Cons
- 15 pounds is heavy for fine cabinet detailing
- Requires thorough flushing after every use
- Airless overspray demands heavy masking
Type: Airless paint sprayer. This is the unit I hand to someone with a full kitchen, a stack of shaker doors and no patience for thinning. The 3000 PSI pump with fully adjustable pressure control means I can start on primer at high pressure, then walk the dial back for the topcoat and get a tighter, finer film on the door faces.
Why it earns the top spot: the flexible suction tube sprays directly from a 1 or 5 gallon bucket, so nothing gets mixed in a separate container and there is no cup to refill every few minutes. The company rates it for projects up to 10 gallons, which covers a complete kitchen in a single tank.
What surprised me most was how little the finish varied between coats. Airless normally gives you a slightly softer edge than a gravity gun, but with the pressure turned down and a steady 8 to 10 inch standoff, cabinet doors came out with no visible texture and no orange peel across two full sets. Owners across thousands of reviews point to the same thing: a noticeably smoother result than entry-level electric guns, driven mostly by the ability to spray unthinned.
Where it costs you: at 15 pounds this is not a tool you want on a dining table for one drawer front. It also demands discipline at the end of the day. Flush the pump, every time, or you will pay for it. And inside a kitchen the overspray is real, so masking is not optional.
Best for whole-kitchen resprays
This is the pick when the job is volume. A fifteen-door kitchen plus drawer fronts is where a bucket-fed airless unit earns its footprint, because you are not stopping every four minutes to refill a cup or argue with paint viscosity. Thinning essentially disappears from the process, which removes the single biggest cause of orange peel and spitting for beginners.
If your project is eight doors and a pair of drawer fronts in a home you are living in, keep reading. The finish difference on a small project is real but not worth 15 pounds of hardware and a full masking operation on your kitchen floor.
Where it will disappoint you
Cleanup is the honest downside. Airless pumps punish neglect in a way that handheld cup guns do not, and if you are the type who puts the gun down for a week, the next session starts with a flush. The overspray also means you cannot casually spray in a room you have not fully protected, which rules it out for quick touch-ups on a single cabinet in a busy house.

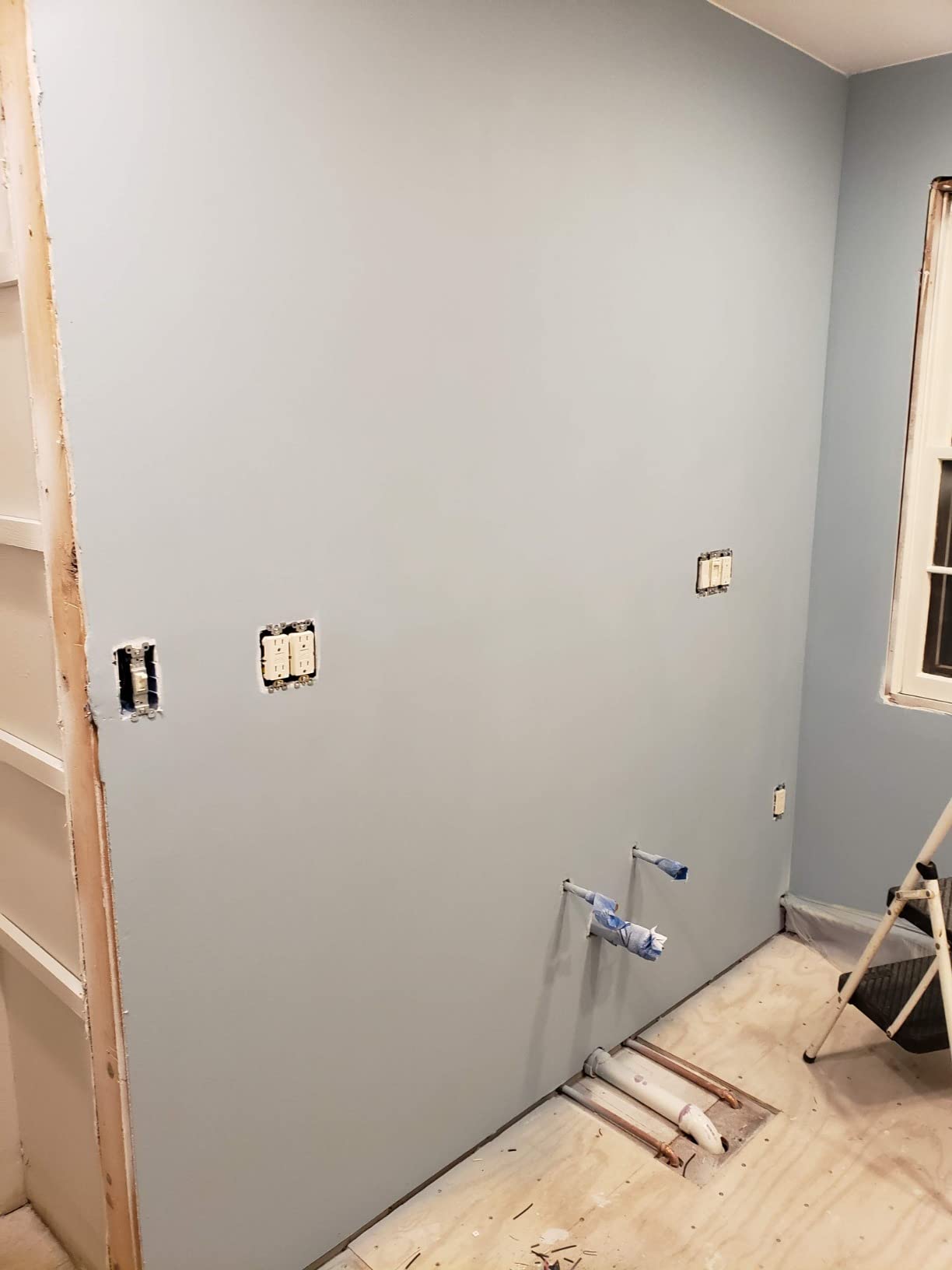

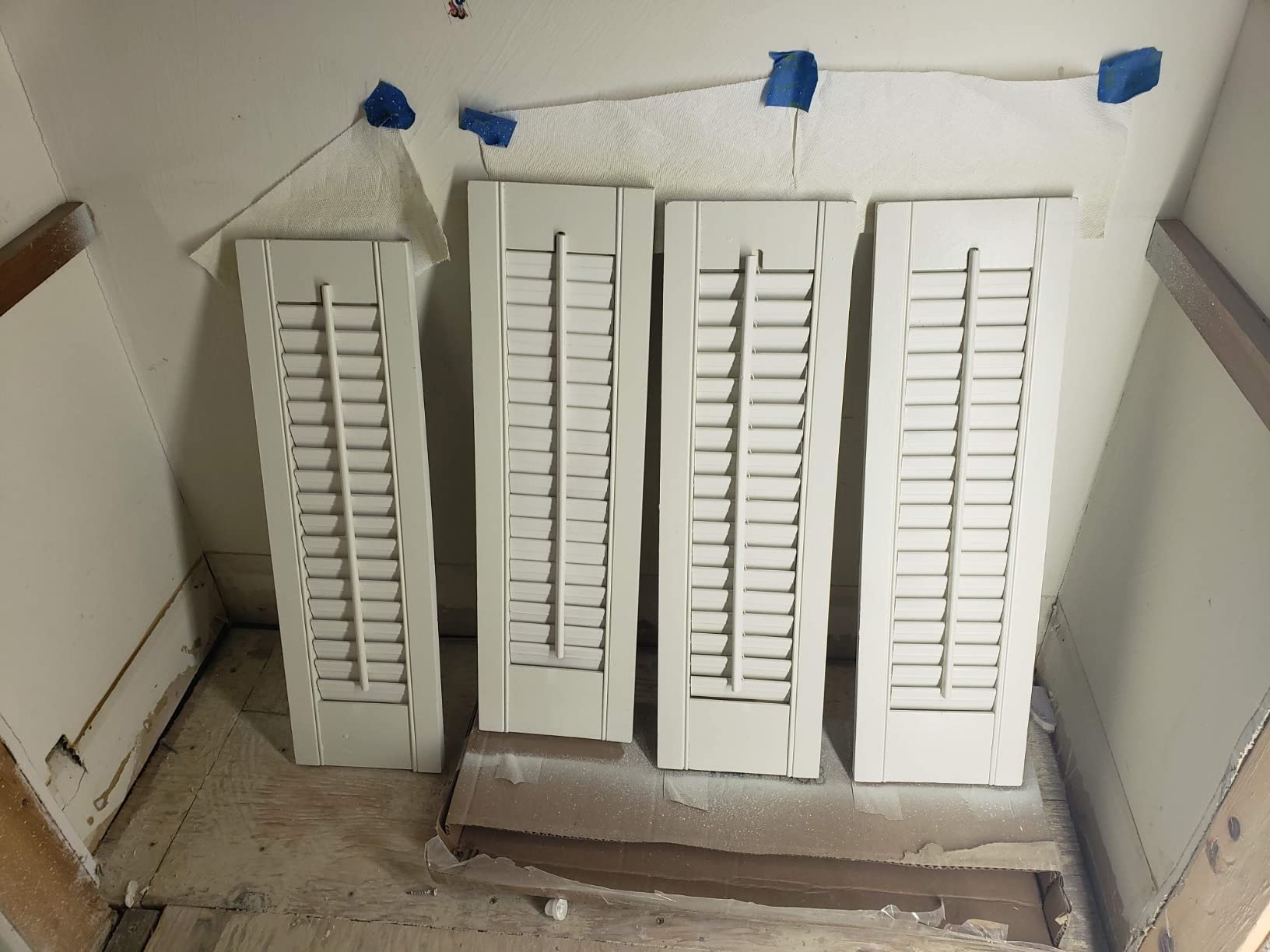

2. HomeRight Super Finish Max – Best Value
HomeRight Super Finish Max HVLP Paint and Stain Sprayer, 3 Brass Tips
450W corded electric
40 ounce cup
Three brass tips at 1.5mm 2.0mm and 4.0mm
Adjustable air cap and flow knob
Pros
- Handles many latex and chalk paints without thinning
- Three brass spray tips for different materials
- Smooth brush-free finish on doors and trim
- Quick cleanup with throwaway paint bags
- Lightweight and beginner friendly
Cons
- 40 ounce cup means frequent refills
- Body warms up and needs nozzle wiping on long runs
- Blows dust so masking is heavy
Type: Handheld electric HVLP. With more than 10,000 reviews behind it, this is the most proven handheld in the group, and for a twelve-door kitchen it does a genuinely good job. The three brass tips at 1.5mm, 2.0mm and 4.0mm cover the whole range of a cabinet job: 4.0mm red for primer and latex, 2.0mm green for latex and chalk paint, 1.5mm blue for stain and sealer.
The feature I did not expect to matter as much as it does is the adjustable air cap. Rotating it between horizontal, vertical and round patterns means a drawer front with raised panel work gets a narrow vertical fan, while a flat slab door takes a wide horizontal pass. Combined with the material flow control knob, that is most of the control you would have from a much more expensive setup.
On the doors I sprayed, the 2.0mm tip at full flow laid down cabinet enamel with no visible brush texture and no thinning on a standard acrylic latex. Owners report the same, along with a finish they describe as factory-like on trim and furniture. The throwaway paint bags included in the kit are a small thing that saves real cleanup time.
Two practical limits. The 40 ounce cup means a fifteen-door kitchen takes a lot of refills, and refills are where dust gets introduced. And the body warms during long sessions, at which point you pause and wipe the nozzle tip or you will start getting thick droplets that need sanding back.
Best for one kitchen in a lived-in house
This is the recommendation I give to friends. The combination of no required thinning for most cabinet paints, three tip sizes and a body light enough to work with above your head or under a sink is exactly what a weekend project needs. You are not chasing professional atomization, you are chasing an even finish without brush marks, and this delivers that.
The learning curve is also short. Setup is a cup of paint and a tip, and the failure mode when you get it wrong is orange peel, which sands down. That is a much friendlier first experience than an airless unit putting a fine mist across your kitchen.
Where it will disappoint you
It lifts dust aggressively because the turbine runs a continuous high volume of air, so every surface nearby has to be cleaned and masked before you start or the dust will settle into the finish. On a long day the warming body forces you to stop and wipe the tip more than you would like. And the small cup makes it a genuinely slow tool on a full kitchen, so plan your time around refills rather than around spraying.

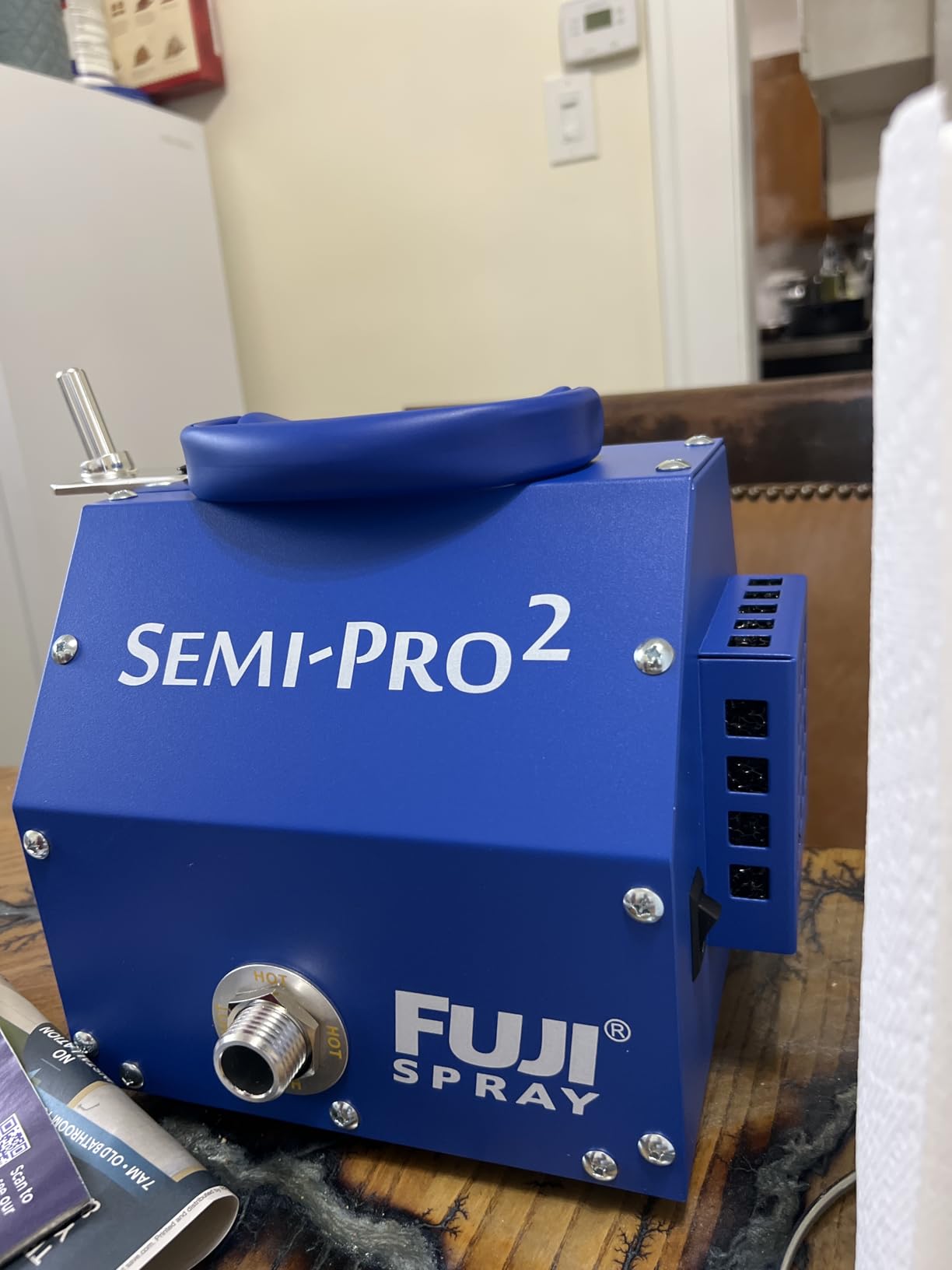

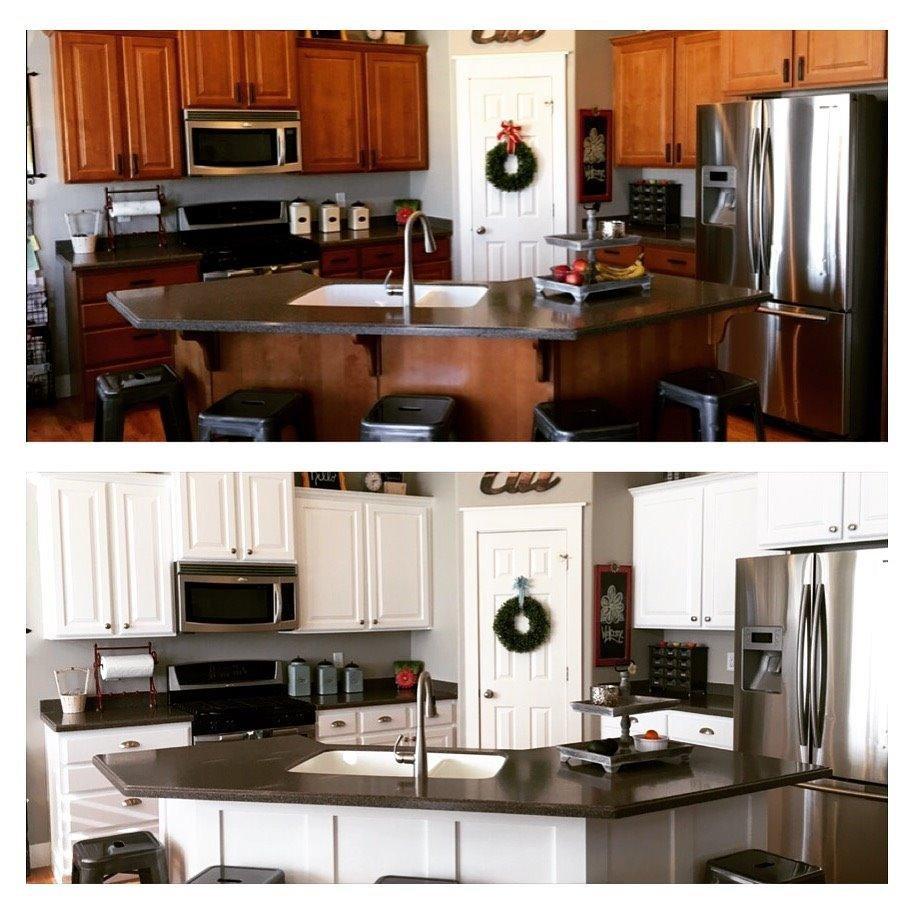

3. Fuji Spray 2203G Semi-PRO 2 – Best for Pros and Clear Coats
Fuji Spray 2203G Semi-PRO 2 – Gravity HVLP Spray System
1400W three-stage turbine
25 ft hose with air control valve
400cc gravity cup
1.3mm air cap installed
Pros
- Fine consistent atomization for a near glass-smooth finish
- Sprays waterborne lacquers and poly unthinned
- Non-bleed gun keeps shop dust off the work
- Metal case and gun feel shop grade
- 24 month parts and labor warranty
Cons
- Turbine is loud and needs ear protection
- 400cc cup is small and awkward to fill
- Latex needs noticeable thinning
Type: Three-stage turbine HVLP spray system with a non-bleed gravity gun. This is the closest thing in the roundup to what a professional cabinet shop actually runs, and the reason is the turbine. Three stages of compression deliver far more usable air than a two-stage handheld, which is why it atomizes waterborne polyurethane and conversion varnish essentially unthinned while a cheaper HVLP unit chokes on the same material.
The 25 foot hose has an air control valve on the handle, and that one detail changes cabinet work more than the spec sheet suggests. You can feather the airflow down for a narrow pass along a cabinet edge, which cuts bounce-back and overspray onto the wall behind the door. The non-bleed gun body also matters indoors, because it does not blow shop dust across a surface you just finished.
On clear coats, this was the only tool in the group that produced a finish I would call genuinely close to furniture grade without careful thinning. The 1.3mm air cap set installed as standard gives tight, even atomization, and the pattern fan control on the gun is precise enough to widen the fan for a slab door without rebuilding the air flow.
Owners describe it as a shop tool that replaces a large compressor at a fraction of the cost, and furniture restorers rate the atomization very highly. The 24 month parts and labor warranty is the longest coverage in this group, tied only with the Fuji T75G.
Where the compromises live: the turbine is loud, roughly shop-vacuum territory, so plan on ear protection. The 400cc gravity cup is small and awkward to fill, and the gun will not balance in a standard stand. Most importantly for a cabinet respray, latex needs noticeable thinning on this system, so if your topcoat is a thick cabinet enamel rather than a clear finish, the airless picks handle it better.
Best for clear coats and repeat work
Buy this if you spray waterborne finishes regularly, are refinishing furniture as well as cabinets, or want one tool that never needs a compressor. The 25 foot hose makes cabinet interiors reachable, and with an optional whip hose the tight inside corner of a cabinet box stops being awkward.
For a homeowner doing one kitchen in ordinary cabinet paint, it is more tool than the job needs. For someone who intends to spray again, the atomization quality is in a different class from everything else here and it holds up to daily use in a way the plastic-bodied units do not.
Where it will disappoint you
Latex is the honest gap. Users report needing more thinning than a higher-stage turbine would demand, and if your paint is a thick alkyd or enamel cabinet coating, the airless picks spray it as-is. The noise, the small awkward cup and the screw-on gravity cap that does not seal perfectly all add friction, and the feed line to the cup has to come apart for a full clean.

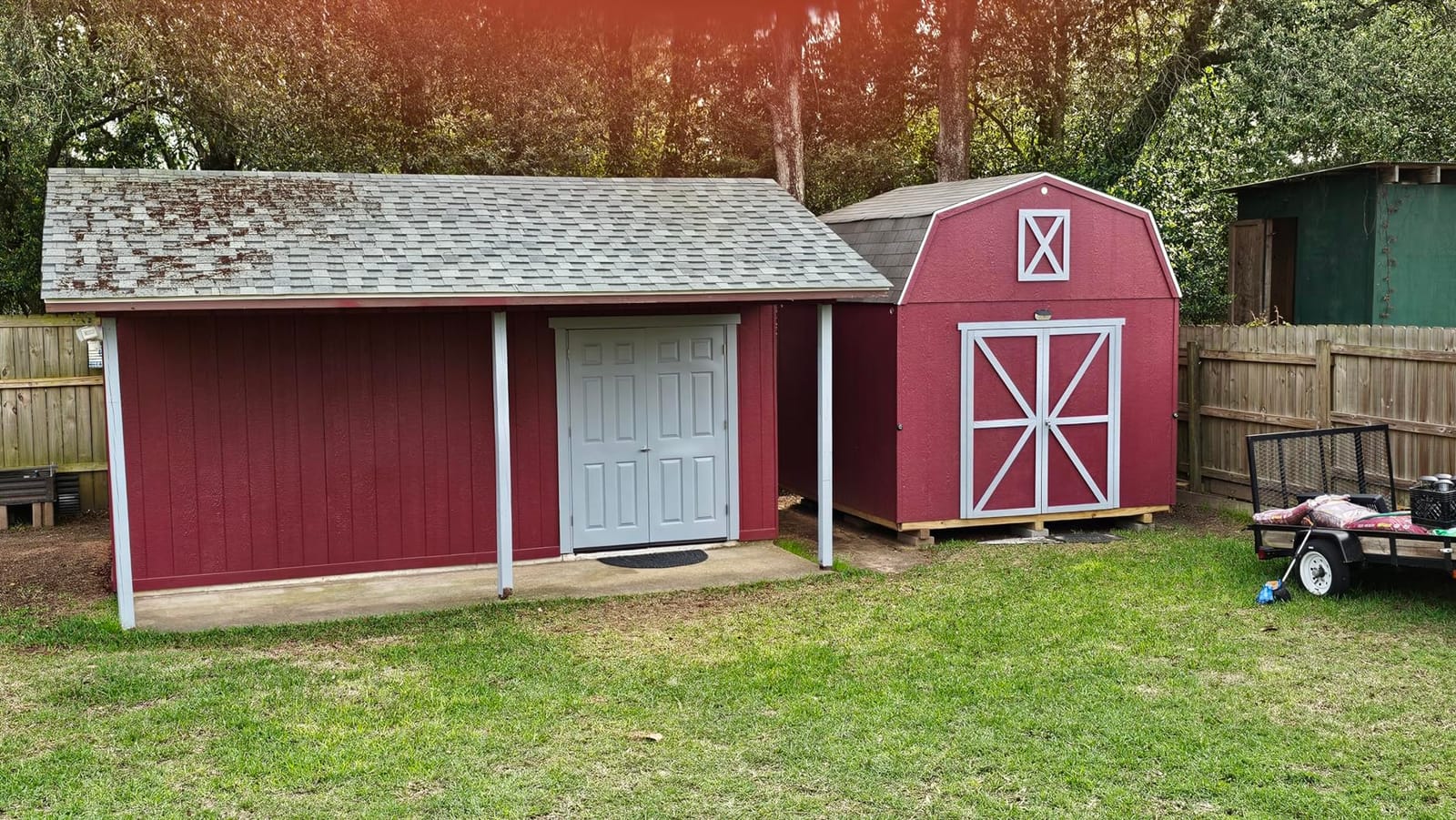

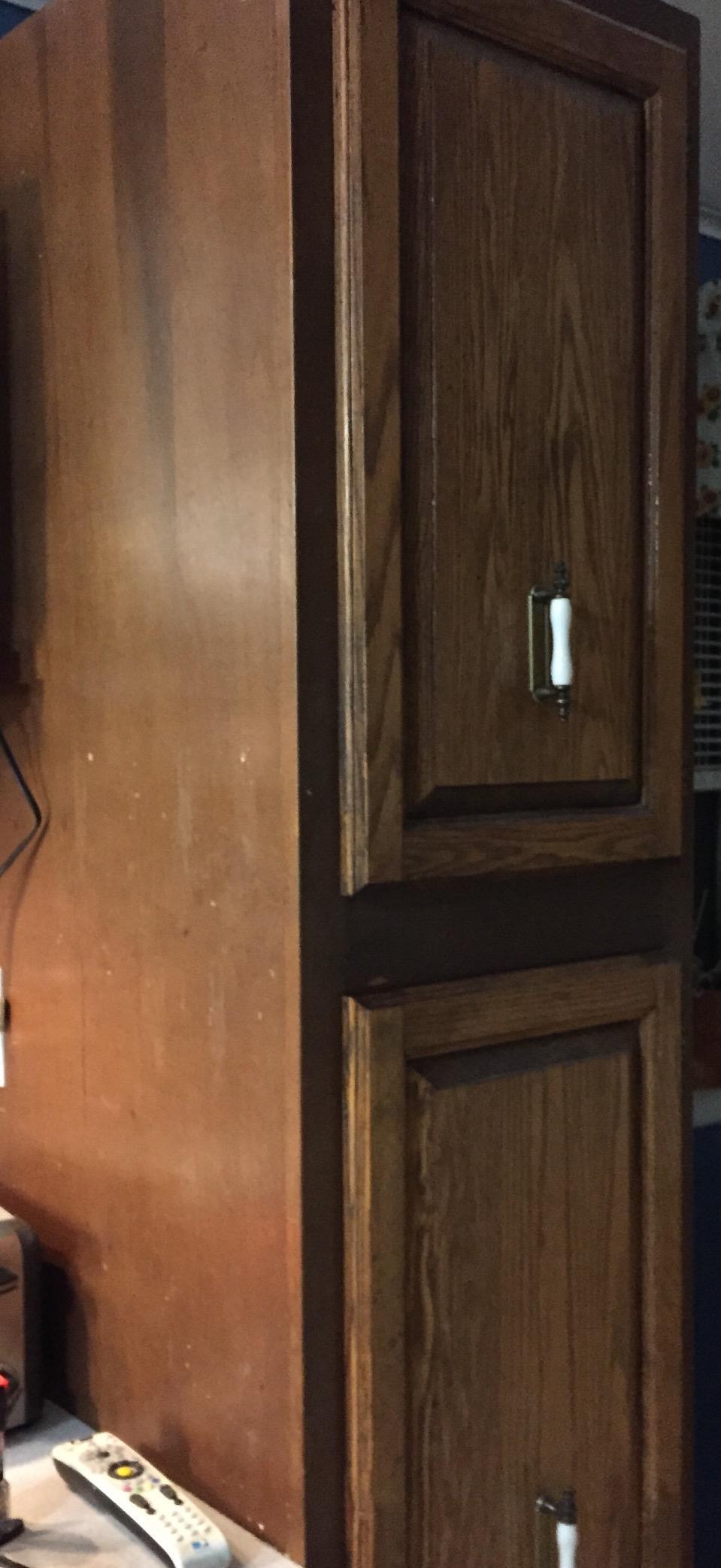

4. Wagner Control Spray Max – Best for Long Sessions
Wagner Spraytech Control Spray Max Electric Corded HVLP Paint Sprayer
Two-stage turbine
20 ft hose with stationary base
Pressure control and flow dials
1.5 quart cup plus 1 quart metal cup
Pros
- Stationary base and hose cut arm fatigue
- Two-stage turbine handles thinned latex and poly
- Rotating air cap plus pressure and flow dials
- Fast cleanup with no paint pans to rinse
- Includes a professional metal cup
Cons
- Bleed-style air lifts dust and can tip the unit
- Latex needs thinning so the finish is technique dependent
- Turbine can overheat after 20 to 30 minutes
Type: Stationary electric HVLP with a two-stage turbine and a 20 foot hose. The design decision that matters most here is that the motor stays on the base. You hold a light gun on a hose instead of holding the whole machine, and on a full kitchen of doors that difference shows up in your hands by the end of the afternoon.
It includes both a 1.5 quart plastic cup and a 1 quart metal cup, and experienced owners consistently use the metal one for cabinet work because coatings clean out of it more completely. The rotating air cap, the pressure control dial and the material flow adjuster give you round, horizontal or vertical patterns with a narrower adjustment range than a pro gravity gun but far more than a handheld.
On thinned latex, the finish was smooth and consistent once I dialled the flow in. The two-stage turbine handles thinned latex, stains and poly, which covers most of a cabinet job. Owners describe it as a capable and economical middle tier, and the cleanup routine is genuinely fast because there are no brushes or paint pans to rinse.
That said, this is a technique-dependent tool. The consensus among experienced owners is that the difference between a good cabinet finish and a poor one here comes down to practice and getting the viscosity right, not to the machine. If you have never sprayed before, this is a steeper hill than the handheld options.
Three real drawbacks. The bleed-style gun sends constant high-volume air that lifts dust and can actually blow the unit over on an uneven surface. The turbine can overheat and shut down after roughly 20 to 30 minutes of continuous spraying, so a full kitchen means planned breaks. And the hose connection is reported by some owners to pop out of the gun during use.
Best for large sets of doors and drawers
The 20 foot hose reach is the reason to pick this over a handheld. You can set the base on the floor, hang the doors on a rack in the garage and work through a stack without carrying anything heavy. If your project is fifteen or more pieces, the fatigue saving compounds across the whole job rather than showing up in one spot.
It is also the only unit here that gives you both a plastic and a professional metal cup, which matters more for clear coats than most buyers expect. If you are spraying waterborne polyurethane over a stained door, that metal cup is the difference between an easy clean and an afternoon with the brush.
Where it will disappoint you
The dust problem is the big one for indoor cabinet work. A bleed gun pushes air across the entire surface, so a kitchen that was not thoroughly cleaned and masked will have dust settle into wet finish. In a garage with downdraft that is a non-issue, but in a finished kitchen it is the reason I would reach for a non-bleed gun or an airless unit with an FFLP tip instead. Add the overheat shutdown and the need to thin latex, and this is a strong tool that asks more of the operator than the price suggests.

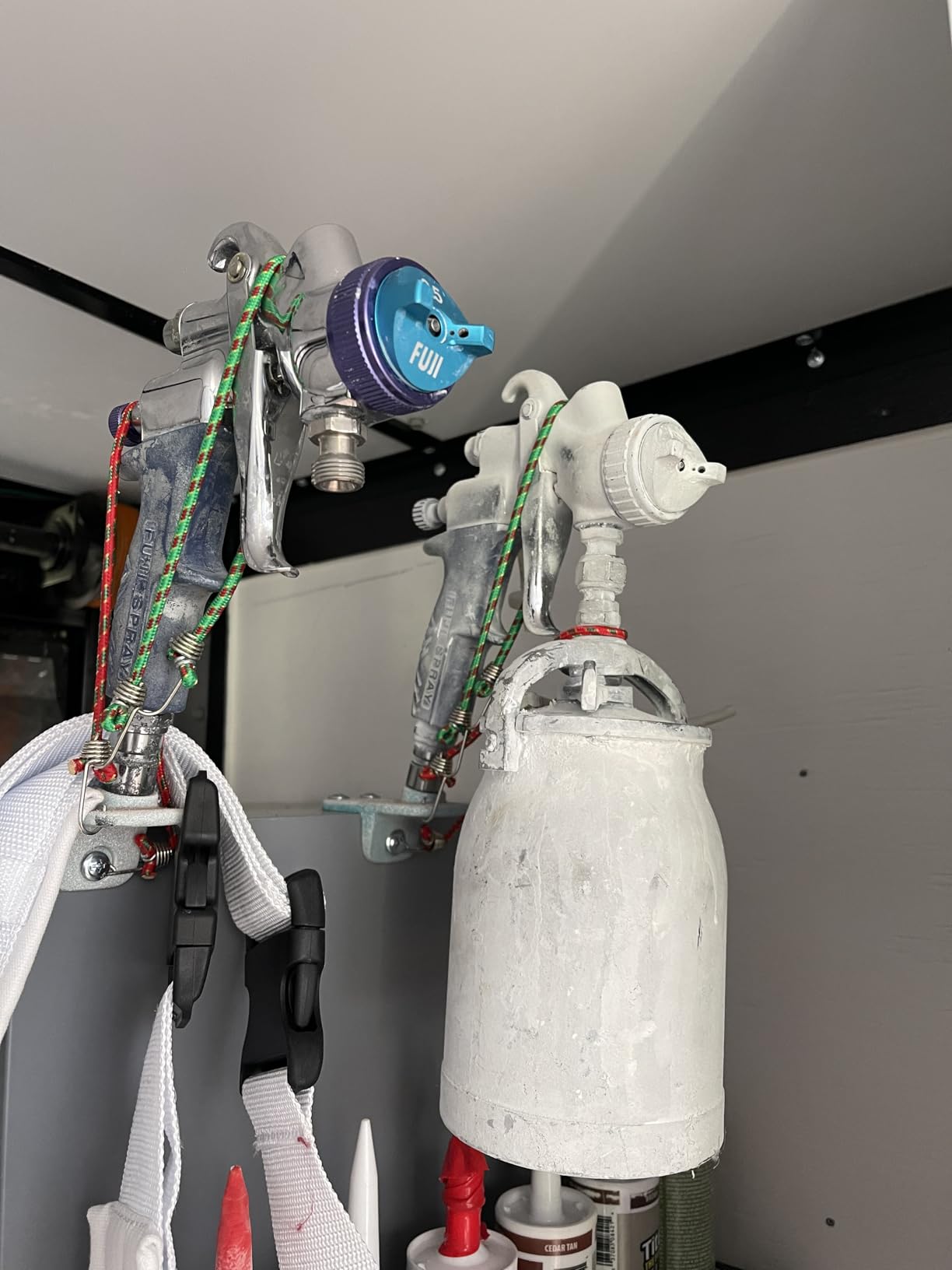

5. Fuji Spray 5175G T75G Gravity Gun – Best for Fine Finish Detail
Fuji Spray 5175G – T75G Gravity Spray Gun
Non-bleed gravity feed gun
Side pattern control knob
100 percent stainless steel fluid parts
600cc nylon gravity cup
Pros
- Highest rated gun in this roundup
- Non-bleed design keeps dust off finished surfaces
- Superb atomization with minimal overspray
- Fast precise side pattern control
- Two-pound body with stay-cool handle
Cons
- Gun only
- compressor and hose sold separately
- 600cc cup is smaller than most competitors
- Not built for high volume spraying
Type: Compressor-fed gravity gun. Forget everything about volume for a moment and look at finish. This is a boutique finishing gun, not a system, and it scored the highest rating of anything we ranked. Owners in woodworking and refinishing describe the atomization as superb with minimal overspray, and that is exactly what a cabinet door needs.
The design features that justify that reputation are specific. The side pattern control knob adjusts fan size from small to large without taking the gun apart, which on a raised panel door is the difference between a clean pass and a messy one. The fluid components are entirely stainless steel, and the body is a 2 pound non-bleed design that fits into a gravity feed stand and stays cool through a long session.
For detail work, specifically a shaker door with applied moulding, an inset panel or a narrow rail, this is the finest tool in the group. The non-bleed body is the quiet hero, because it does not blow dust across a surface you have already sprayed, which is the problem that ruins cabinet finishes in a home rather than a shop.
What I would not do is treat this as a whole-project machine. It is a gun, not a system, so you need a quiet compressor and a suitable hose before it runs at all, and you should budget for those separately. The 600cc nylon cup is also smaller than most competing gravity cups, which means more refills on a full kitchen.
Best for panel doors and detail passes
If your doors are shaker style with routed detail, or you are touching up an existing cabinet next to a wall you just finished, this is the right tool. Pattern control at the handle and a non-bleed body solve the two problems that ruin detail work in a home, and the stainless fluid parts mean the gun will still be there in ten years.
Pair it with a small quiet compressor and it becomes a legitimate one-project kit. If you already own a compressor, this gun alone transforms what you can do. The 24 month parts and labor warranty is also the longest in the group.
Where it will disappoint you
Three honest limits. It is a gun only, so the full cost of a working setup is the gun plus a compressor plus a hose, and that is real money for a first-time sprayer. The 600cc cup is small for a fifteen-door project. And it is not built for high-volume work at all, so if you are a pro respraying cabinets every week, you want a turbine system instead of a single hand gun.
6. VONFORN 700W Paint Sprayer – Most Versatile
VONFORN Paint Sprayer, 700W Spray Paint Gun with 4 Nozzles & 3 Patterns
700W motor
Four nozzle sizes from 1.0mm to 3.0mm
Horizontal vertical and round patterns
Tool-free assembly
Pros
- Four nozzle sizes for varied materials
- Tool-free assembly suits first-time users
- Cleaning connector flushes the tube at a faucet
- Dust blowing joint preps surfaces first
- Solid 4.3 star rating across 8000 reviews
Cons
- All-plastic body feels less durable
- Thick latex usually needs thinning
- Higher share of one-star reviews
- 1200ml cup still needs refills
Type: Handheld electric HVLP. This is the entry point, and for a small job it is genuinely enough. The 700W motor drives four nozzle sizes at 1.0mm, 1.5mm, 2.0mm and 3.0mm, which is more tip variety than several picks above it, and the pattern control covers horizontal, vertical and circular fan shapes.
Two accessories stood out in real use. The cleaning connector lets you flush the paint tube at a faucet, which cuts the end-of-job cleanup dramatically compared with picking dried paint out of a tube with a screwdriver. The dust blowing joint attaches to the same fitting and clears debris off the surface before you spray, which is a real problem on cabinet doors that have been stripped in place.
On thin cabinet paint and primer, with a 1.5mm or 2.0mm nozzle, the finish was even and free of brush texture. Beginners consistently report that the tool-free assembly makes it easy to learn, and the viscosity cup included in the kit helps you stop guessing at thinning, which is the number one cause of a bad finish on a cheap sprayer.
The pattern across more than 8000 reviews is consistent. Buyers treat it as a budget DIY sprayer for furniture, cabinets, fences and walls, and they like the flow control and the multiple nozzle sizes. What they do not like is the plastic body and the need to thin heavier paints for consistent flow.
Quality consistency is the real limit. The one-star share runs higher than the established brands in this list, which is what you would expect from a unit this light, and the 1.2L cup brings the same refilling problem as any handheld. For an eight-door project done carefully with the viscosity cup, it is a reasonable buy. For a full kitchen you plan to keep, choose something with more body to it.
Best for a small job on a tight budget
One accent cabinet, a set of four drawer fronts, a secondhand dresser. At this scale the sprayer pays for itself on time alone, and the four nozzle sizes mean you can move from primer to enamel to a clear sealer on the same project without buying anything else. The included cleaning brush, needle and filters cover the maintenance kit too.
I would pair it with the viscosity cup in the box and thin properly. Thinner material than the nozzle wants is the leading cause of spitting and splatter on units like this, and getting that right is free.
Where it will disappoint you
Thick latex. Owners consistently report thinning is required for heavier paints, and if your cabinet paint is a full-build enamel you will be fighting the material rather than spraying it. The all-plastic construction also feels noticeably less rigid than the metal-framed units, which matters if you drop the gun on a ladder. And the higher volume of harsh one-star feedback is a fair signal that quality control is not consistent, so inspect it on arrival.

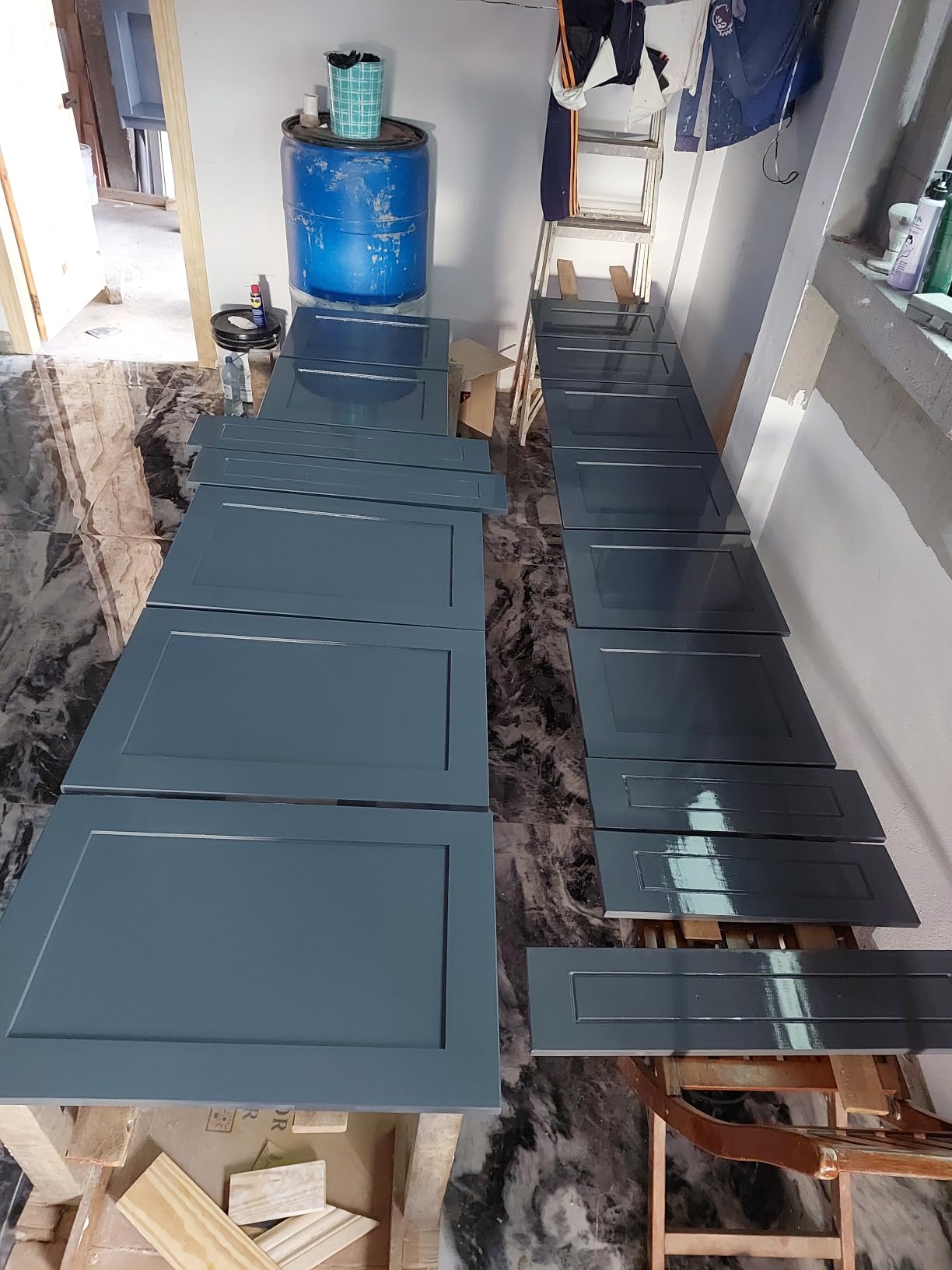

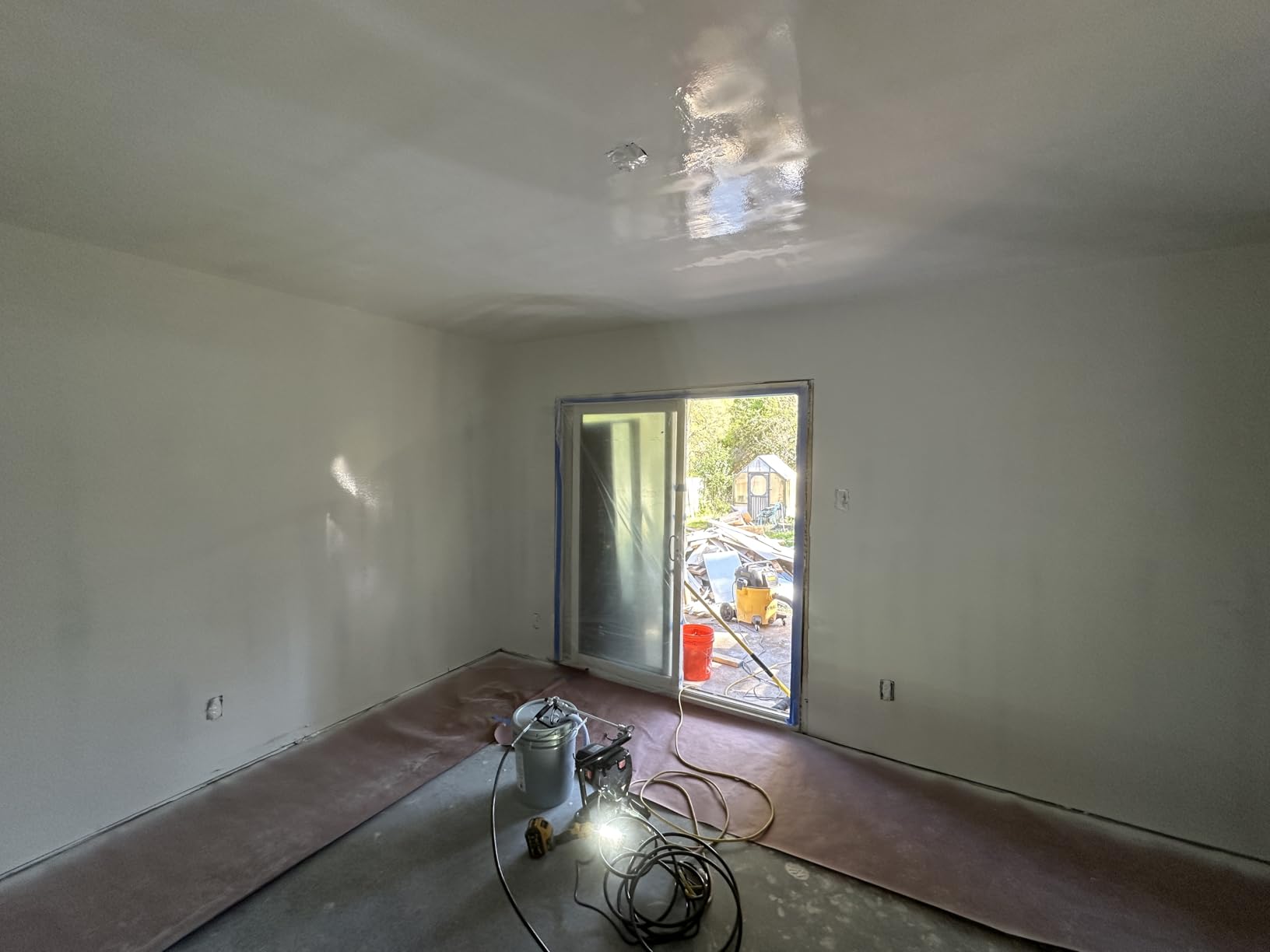

7. VEVOR 750W Stand Airless Sprayer – Best for Big Flat Runs
VEVOR 750W Stand Airless Paint Sprayer, 3000PSI High Efficiency Electric Airless Sprayer, Fine and Even Painting Effect, Handheld Paint Sprayers for Home Interior and Exterior Furniture and Fences
750W motor up to 3000 PSI
1.2 LPM maximum flow
7.6 meter hose
Detachable pump body
Pros
- 3000 PSI and 1.2 LPM cover large areas fast
- Fan-shaped atomization for a consistent finish
- Detachable pump body simplifies cleaning
- Extension pole cuts bending and ladder work
- Infinite speed control reduces paint use
Cons
- 19.6 pound frame is heavy for fine detail
- Higher one-star share than established brands
- Fine mist overspray needs heavy masking
Type: Stand airless paint sprayer. The 750W motor pushes up to 3000 PSI at a maximum flow of 1.2 LPM, and the fan-shaped atomization is what makes this worth a look for cabinet work rather than only for walls. The company rates it up to five times faster than rolling and twelve times faster than brushing, and on large flat runs that is not marketing, it is how the time actually goes.
The extension pole is more useful on a cabinet job than you would expect. For the upper doors on a tall wall cabinet, standing upright and spraying through a pole avoids bending, kneeling and ladder repositioning three times per run. The detachable pump body is the other feature I would keep, because it lets you get into the crevices around the pump where dried paint hides and later clogs the machine.
On slab doors and drawer fronts, the fan-shaped atomization gave a consistent, even pass with low paint waste, and the infinite speed control let me drop the output for the second topcoat and lay down less material without changing tips. Owners rate the coverage speed and uniformity highly and point to the detachable pump and extension pole as the standout usability features.
This is where I have to be straight with you. At 19.6 pounds this is the heaviest frame in the group, and it is built for large surfaces. Holding it to spray a raised panel on a single door for twenty minutes is genuinely unpleasant. The full-metal frame, adjustable motor and professional rubber hose do feel durable, and the atomization is good, but the weight is a real mismatch with detailed cabinet work.
The one-star share is also worth noting. With a review base under a thousand entries, the share of negative feedback runs higher than the established brands, which usually points to a wider spread in quality control rather than a bad design. Check it early and return it if yours feels off.
Best when cabinets share the job with walls
If the project is cabinets plus a room, this earns its place. The 3000 PSI output and 1.2 LPM flow clear a wall in a fraction of the time a handheld would take, and the speed control means you can drop to low output for a cabinet face and back up for the wall without swapping equipment.
For a cabinet-only job on a small kitchen, it is the wrong weight. Reach for the Graco X5 instead, which does the same job at a much lower carry weight.
Where it will disappoint you
Detail work is the weakness, and it is a weight problem before it is a quality problem. On routed panel doors, you want a light gun you can hold steady for a full pass, and 19.6 pounds with a pole in your hands is not that. Fine mist overspray also lands hard in a kitchen, so masking the floor and counters properly is a bigger job than with any HVLP option.

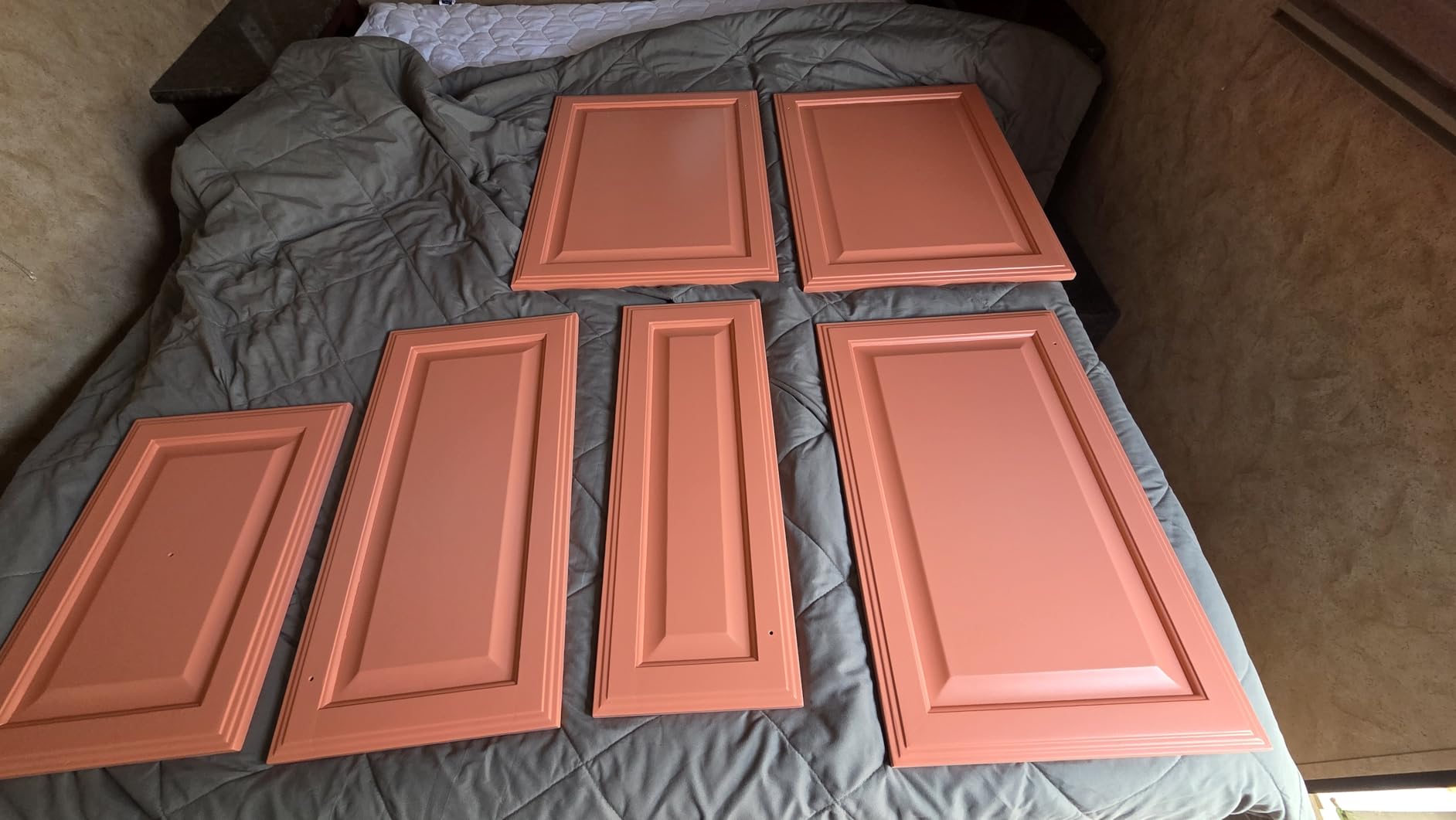

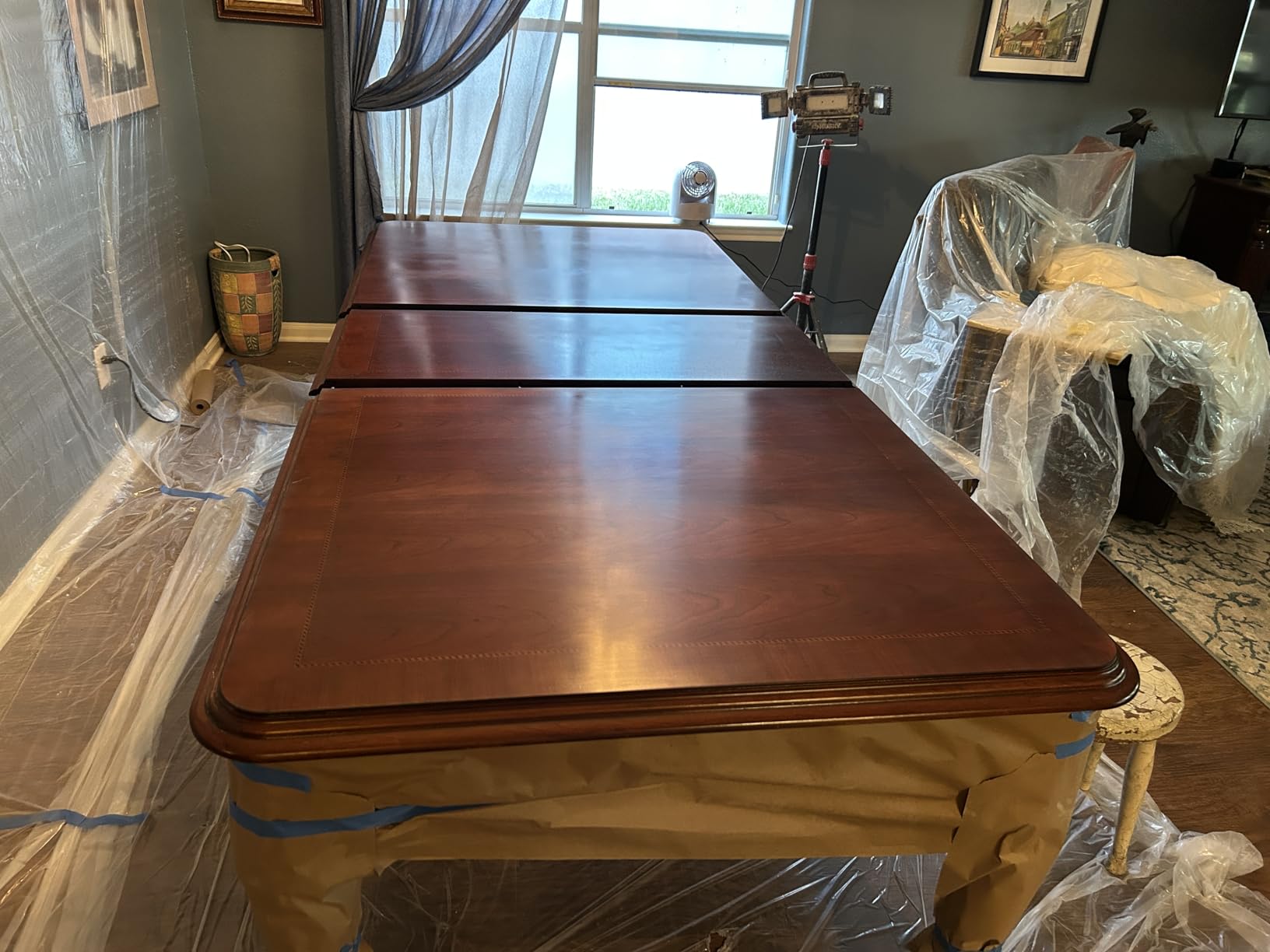

8. ENDOZER Gravity Feed HVLP Gun Set – Best for Learning Gun Control
ENDOZER Professional HVLP Spray Gun Set Gravity Feed Air Spray Gun
Brass 15-hole HVLP hood
1.4mm 1.7mm and 2.0mm stainless needles
20 oz gravity cup
Included air pressure gauge
Pros
- Brass and stainless steel at a budget price
- Three genuine needle sizes in one set
- Fluid pattern and air controls for fine work
- Pressure gauge helps dial in atomization
- 20 oz cup suits furniture pieces
Cons
- Air-powered
- a separate compressor is required
- Manufacturer steers buyers away from latex
- No compressor or hose included
Type: Compressor-fed gravity feed HVLP gun. This is a genuine spray gun rather than a handheld electric sprayer, and it is the cheapest way into learning real gun control. A brass 15-hole HVLP hood gives uniform atomization, and the set includes real stainless steel needles at 1.4mm, 1.7mm and 2.0mm rather than the pressed and plated parts you often find at this level.
The included air pressure gauge is the feature I would point a first-timer at. Cabinet spraying goes wrong mostly because the operator does not know what pressure or what viscosity they are working with, and a gauge in the box lets you check instead of guessing. Fluid control, pattern control and an air conditioning valve are all on the gun, so you can narrow the fan and reduce airflow on a small pass.
On a set of cabinet doors with thinned enamel and a clear sealer, the 1.7mm needle produced a smooth, even film once the air was right. Owners buying it for furniture repair and cabinet refinishing highlight the solid brass and stainless components, the three needle sizes and the fact that it costs a fraction of the branded gravity guns.
Now the part you need to read twice. This gun is air-powered, so it needs a compressor and hose, and neither is included, which changes the true total cost. More importantly, the manufacturer explicitly steers buyers away from latex paint, and this is a cabinet roundup, so you should be planning on oil-based or waterborne enamel and clear coats, thinned appropriately, rather than reaching for a gallon of acrylic latex.
The 20 oz gravity cup is a sensible size for individual furniture and cabinet pieces. Fluid control, pattern control and the air conditioning valve are real adjustments rather than decoration, and that is what makes this a good training tool.
Best for learning how a real spray gun works
If you already own a small compressor, or you want to understand gun control because you might buy a proper turbine later, this is a sensible way in. Three needle sizes, a pressure gauge and genuine control valves teach the fundamentals that handheld electric sprayers hide, and the 20 oz cup suits piece-by-piece work rather than a whole kitchen.
The thin metal components also survive drops better than an all-plastic handheld, and stainless needles resist the wear that eventually ruins cheap guns. I would pair it with a viscosity cup to keep the material honest.
Where it will disappoint you
Latex, plainly. The manufacturer’s own guidance steers away from it, so budget for a cabinet enamel or waterborne coating instead. Then there is the compressor question, since the gun alone does nothing and a quiet unit is a real purchase. And the review base is smaller than the big handheld brands, so treat the listing details as something to confirm when it arrives rather than assume.

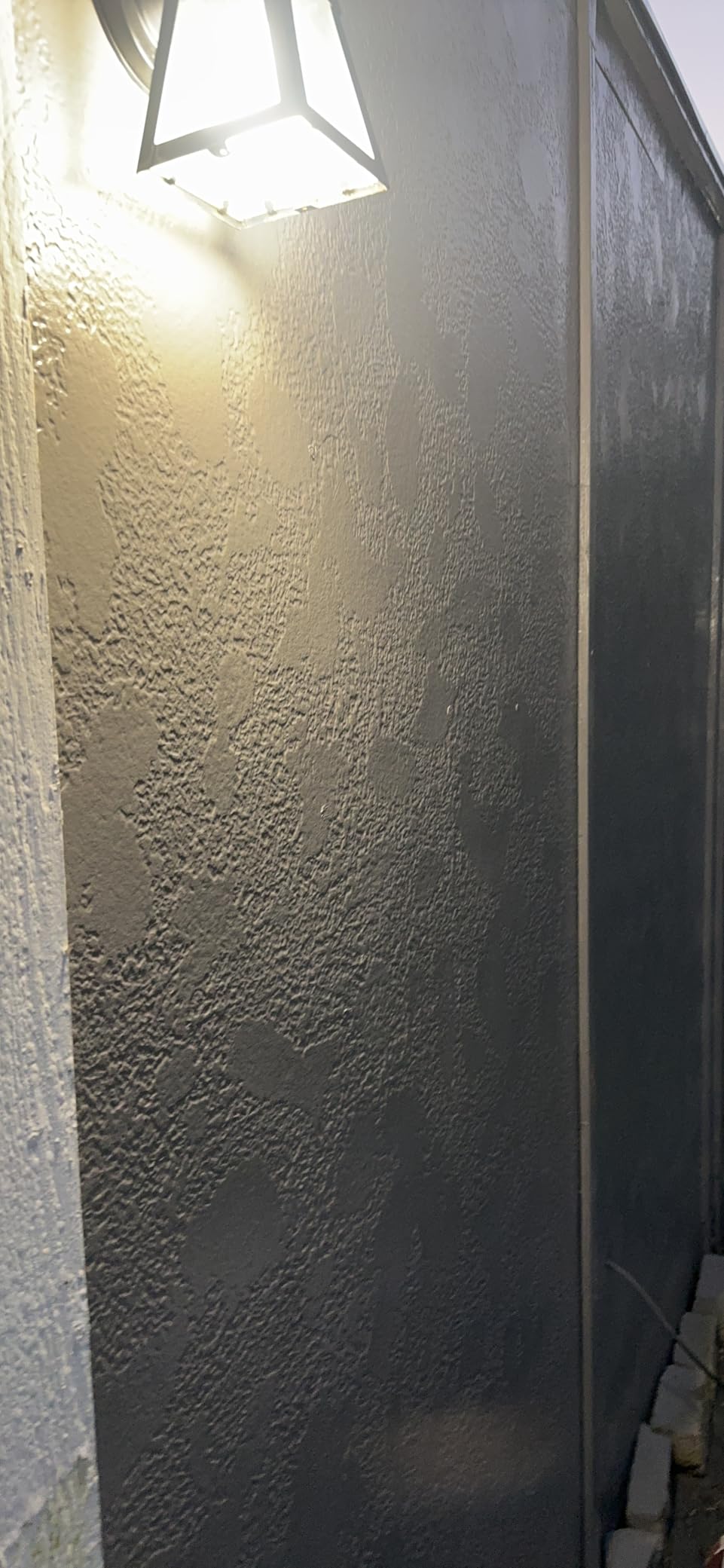

9. PHALANX 780W Airless Sprayer – Best for Fast Cleanup
PHALANX Airless Paint Sprayer for House Painting, 780W 3000PSI
780W motor up to 3000 PSI
25 ft high-pressure hose
Reversible spray tip
Quick-rinse flush system
Pros
- 3000 PSI sprays unthinned latex and oil paint
- 25 ft hose with no refills
- Reversible tip clears clogs on the fly
- Quick-rinse cuts cleanup under 10 minutes
- Anti-drip gun reduces runs and leaks
Cons
- 19.4 pounds is awkward for fine detailing
- Lowest average rating in this roundup
- Overspray still needs full masking
Type: Airless paint sprayer. The output is unremarkable in the best sense: 780W, up to 3000 PSI, and it sprays unthinned latex and oil-based paint directly from the can. The 25 foot premium hose draws from 1 to 5 gallon buckets, so you are not refilling mid-project, and the fully adjustable pressure and flow knob lets you dial in the fan pattern for a cabinet face.
What actually separates this unit is cleanup. The integrated quick-rinse system flushes the gun in under ten minutes, and the reversible spray tip rotates 180 degrees to blow out a clog without stopping the job. On an airless machine, those two features are the difference between cleaning after every session and cleaning when you feel like it.
The anti-drip gun and reinforced connections are the other quiet wins. Runs and leaks at the gun connection are the most common complaint on any airless unit, and buyers specifically call out how few of those problems they hit. It is ETL-certified with a one year warranty and US-based support, which is a reasonable baseline.
I have to be straight with you. This is the lowest rated unit in the roundup, it carries the highest share of one-star feedback, and its best sellers rank is far lower than the established brands. Those numbers do not mean it will not work, but they do mean I would not hand it to someone for a first cabinet project where the finish matters most.
At 19.4 pounds it is one of the heavier machines here, which means the same detail problem as the VEVOR. It is a large-surface tool that can handle cabinet faces but is not a precision finishing instrument.
Best when you hate cleaning a sprayer
If you are the person who puts the gun down and forgets, this is the honest choice. Ten minutes to flush instead of an evening with solvent and brushes, plus a reversible tip that clears clogs on the fly, means the machine stays usable. The 25 foot hose also means one setup covers a whole kitchen and the adjacent walls.
Compare it against the Graco X5 before you commit. The X5 has a stronger rating, a much larger review base, a one year manufacturer warranty and up to 75 feet of hose, and it is lighter in the hand. The PHALANX wins on cleanup and nothing else.
Where it will disappoint you
Weight first, because 19.4 pounds of airless machine is punishing on a raised-panel door. Rating and review quality second, which is unusual for me to flag but the data is the data: this is the lowest average score here with the most negative feedback share, so expect occasional units that need swapping. And airless overspray still demands full masking of nearby cabinetry and floors, no matter how well the gun is built.
10. PNTGREEN LVLP Siphon Spray Gun – Best for Small Pieces
PNTGREEN LVLP Siphon Spray Gun,Air Paint Sprayer with 2.0mm Nozzle and 1000CC Capacity, Professional Spray Guns for Furniture, House and Painting Cars
LVLP low volume low pressure
1000cc aluminium cup
Maximum 15 psi
Light 0.84 kg body
Pros
- Lightest gun here at 0.84 kg
- LVLP gives fine control of speed and paint use
- Aluminium cup resists sticking paint
- Ergonomic body with low trigger force
- Suited to doors windows and cabinets
Cons
- Air-powered
- a compressor is required
- 15 psi ceiling limits material thickness
- Listing is inconsistent about nozzle size
Type: Air-powered LVLP siphon spray gun. LVLP sits below HVLP on pressure, and that is the whole point for small work. Where an HVLP gun pushes a lot of air at the surface, LVLP gives you tighter control of spray speed and paint consumption, which is exactly what you want on a drawer front, a small door, or trim and window frames.
At 0.84 kg this is the lightest gun in the roundup by a wide margin, and with a low trigger force it stays comfortable through long sessions where a heavier gun would be wearing you down. The 1000cc aluminium cup is treated to resist corrosion and abrasion and to stop paint sticking, which matters more than it sounds when you are switching between stain, primer and topcoat.
Reviewers consistently buy this for small surfaces, and doors, windows and cabinets are named explicitly. The finish quality on thin material is good, and the low pressure means very little overspray and almost no risk of blowing a fresh coat off the substrate.
The ceiling is the 15 psi maximum, and it is a real one. That rating limits you to thinner materials and lighter coats, so a full-build cabinet enamel is out of reach unless you thin it considerably. Being air-powered, it also needs a compressor, and the listing is inconsistent about nozzle size, with the title referencing a 2.0mm while the included components list a 1.7mm gun, so confirm which one ships before you buy a second tip.
Best for trim, small doors and touch-ups
This is the pick when you are spraying two or three pieces rather than a kitchen. Light in the hand, gentle on the surface, minimal overspray, and a cup big enough to coat a door front without constant refilling. It pairs naturally with a small compressor in a flat pack for a balcony door or a set of window frames.
The low trigger force is what I would notice most on a long afternoon with small pieces. Fatigue is the thing that ruins a fine finish, and a lighter gun is a genuine advantage there.
Where it will disappoint you
Material thickness is the hard limit, not a preference. At 15 psi you are limited to thinner coatings and lighter coats, so a thick cabinet enamel means heavy thinning and a longer flash time. It also has fewer finish control features than higher-end gravity guns, and the aluminium body does not offer the pattern and fluid controls that let you fine-tune a narrow pass on detailed panel work.
How to Prep Cabinets Before You Spray Them
A sprayer cannot rescue bad prep. Every orange peel complaint in the cabinet forums traces back to either dirty surfaces, open grain, or a coating laid on too thick, and no tool on this list changes that. Spend the time here first.
Degrease everything. Cabinet doors carry years of hand oils, cooking film and furniture polish, and any of those on the surface will cause adhesion failure within weeks of spraying. Wipe down with a degreaser, then let it dry fully.
Scuff sand the existing finish. You are not trying to remove paint, you are creating tooth. A 180 to 220 grit pad on an orbital or a sponge sanding block is enough, and the whole point is to stop the new coating from peeling off a glossy surface.
Deal with oak. This is the specific trap for anyone spraying an open-grain cabinet. Oak soaks material into the grain, and the result reads as a texture defect that no amount of careful spraying will fix. Fill the grain with a grain filler, sand it flat, and vacuum thoroughly. The same applies to any open-grain hardwood, and MDF and painted thermofoil need far less.
Choose primer for sprayability, not just adhesion. Oil-based bonding primers are the most durable choice under cabinet paint and are what experienced painters reach for, and on Paint Talk painters specifically pair oil-based primers from names like Zinsser and Kilz with oil-based topcoats. Shellac-based primers such as BIN are fast-drying and stain-blocking, and they spray cleanly, but they need care on fine atomization to avoid a brittle film. Water-based primers are easy to clean but are thinner and need more coats to build.
Remove the hardware and every knob, hinge plate and screw. Do not tape over hardware. Fill the screw holes if the doors have them, and do not forget the back edges, which are often the first place a homeowner notices missed coverage.
Fixing Orange Peel, Spitting and Pinholes on Cabinets
These two defects look completely different and have almost opposite causes, which is why beginners chase them endlessly. Orange peel is a thick, textured film. Pinholes are a thin, pitted film. One is too much material, the other is too little.
Orange peel. The dominant cause is laying paint on too thick. On a painting forum, the most repeated line is that the film was applied way too heavy and needs two or three light coats instead. A partially clogged tip does the same thing by starving atomization, and so does paint that has been thinned too far and then sprayed at close range. Reduce flow, increase your standoff distance, and add a second thin coat rather than fixing it with a third heavy one.
Spitting and splatter. Almost always over-thinning, a clogged tip, or both. Run the cleaning needle through the tip, flush the tube, and check your thinning with a viscosity cup or a stirring stick rather than by eye. If it spits intermittently while you spray, stop and clear the tip before it puts droplets in the finish.
Pinholes. The opposite failure. Paint thinned too far runs into a thin film that pits, especially on a porous or open-grain surface. Tighten the mix slightly and add flow, and make sure the grain filler is sanded flat first.
Runs and drips. Too much flow for the speed of your pass. Slow your hand down, or pull the flow knob back, and always keep the gun moving even when you are repositioning.
Peeling or poor adhesion. Almost always prep, not equipment. The surface was not degreased, not scuff sanded, or the primer was the wrong chemistry for the topcoat.
On oak specifically, remember that what looks like orange peel is sometimes just the grain. If you can feel texture in the dried film, fill the grain and start over rather than trying to spray your way out of it.
Buying Guide: Nine Things to Check Before You Buy
Before you spend anything, work through this list in order. It is the same sequence we used when scoring these ten, and it will narrow your list faster than any brand reputation.
1. Gun or sprayer. A gravity gun needs a compressor, a hose and real control. A handheld electric unit is self-contained and slower. An airless machine sprays unthinned and fastest but produces the most overspray. Decide which of the three you are actually shopping for before comparing models.
2. Turbine stages and pressure. Three stages deliver more usable air than two, which is why the Fuji Semi-PRO 2 atomizes thick waterborne coatings that a two-stage unit cannot. For latex and clear coats, stage count matters less than pressure control.
3. Tip material and size. Brass and stainless steel tips outlast plated ones. On the electric units here, 1.5mm handles stain and sealer, 2.0mm handles latex and chalk paint, and 4.0mm handles primer. Gravity guns use needles and you will want at least three sizes.
4. Spray pattern adjustability. Look for a rotating air cap or a pattern control knob. Round, horizontal and vertical patterns are the minimum, and the ability to narrow the fan matters on panel doors and cabinet edges.
5. Flow control. A material flow knob is what prevents runs and drips, and it is what lets you lay two thin coats instead of one heavy one. A sprayer without one will make you work for every finish you get.
6. Unthinned capability. Only the airless units in this roundup spray paint and stain out of the bucket without thinning. If you are using thick cabinet enamel, this single point can decide the purchase.
7. Cleaning system. A quick-disconnect or quick-rinse fitting that reaches a faucet turns cleanup from an evening into ten minutes. This is the feature owners mention most often as a reason to keep a machine long term.
8. Weight and balance. Anything over 15 pounds is a wall and ceiling tool. For cabinet faces, you want something you can hold steady and reposition constantly, and a 20 foot hose with a stationary base is the best answer to a heavy machine.
9. Warranty. The two Fuji products carry 24 month parts and labor coverage, which is the longest here. The Graco carries one year. Warranty length is a reasonable proxy for how long the manufacturer expects you to keep the tool in service.
Two more practical points. A non-bleed gun body is worth real money for indoor cabinet work, because a bleed gun blows dust onto the surface you just cleaned and the dust settles into your wet finish. And plan the interior work separately: if shelves are removable, spray them. If they are fixed, most experienced painters would hand-roll or brush the interior rather than build a masking setup inside a live kitchen, which is a lot of work for a surface nobody looks at closely.
Frequently Asked Questions
What do professional painters use to paint cabinets?
Professional cabinet painters usually use one of two things: a turbine HVLP gravity-feed spray gun, or an airless unit fitted with a fine-finish low-pressure tip. Painters on Paint Talk name specific models, recommending a Titan 440 with a swivel, short whip hose and FFLP tip, and citing the TriTech T4 and Titan ED655. What they are buying is control and low overspray, not raw power.
What spray gun is best for kitchen cabinets?
For a genuine spray gun, a non-bleed gravity-feed model such as the Fuji T75G is the finest finishing tool, paired with a quiet compressor. For most households spraying eight to fifteen doors, a handheld electric HVLP unit with a detail nozzle such as the HomeRight Super Finish Max is the practical choice, and it needs no compressor at all.
Is it worth getting a paint sprayer for cabinets?
It is worth it if you have at least eight to ten doors or drawer fronts, because a sprayer cuts application time roughly in half and gives an even, brush-free finish a roller cannot match. Below that, the setup and cleanup time outweighs the gain. The sprayer also does not fix bad preparation, so budget real time for degreasing, scuff sanding and priming.
Do I need to thin paint before spraying cabinets?
With a handheld HVLP unit, usually yes. Standard acrylic latex, chalk paint and cabinet enamel generally need thinning to flow cleanly through a small nozzle, and the included viscosity cup on budget models is the cheapest way to check. The airless machines in this roundup, including the Graco Magnum X5 and the PHALANX, spray paint and stain unthinned straight from the bucket.
What is the difference between HVLP and airless for cabinets?
HVLP pushes paint with a high volume of low-pressure air, so overspray stays close to the nozzle but paint usually needs thinning. Airless forces the paint itself through a tiny opening at up to 3000 PSI, sprays unthinned and covers much faster, but produces a fine travelling mist that demands serious masking and is harder to control on small pieces.
How do I stop orange peel when spraying cabinets?
Orange peel means the film went on too thick. Reduce material flow, move the gun a little further from the surface, and lay two or three light coats instead of one heavy one. Also check for a partially clogged tip, which starves atomization, and make sure you have not thinned the paint too far before spraying.
Should I spray the inside of my cabinets?
If the shelves and dividers are removable, spray them, because the same gun and finish will be used anyway. If they are fixed, most experienced painters would hand-roll or brush the interior rather than build a full masking setup inside a working kitchen, since the time spent protecting counters and floors usually outweighs the finish difference on a surface nobody inspects closely.
Can I use a paint sprayer safely indoors?
Yes, with preparation. Clear the room, remove or cover everything that food or dust can settle on, open windows or run a fan for ventilation, and wear a respirator rated for organic vapour when spraying oil-based or solvent coatings. Mask the floor, counters, walls and light fixtures thoroughly, and avoid spraying in a kitchen where you cannot stop cooking for several hours.
Final Verdict for Cabinet Spray Guns in 2026
The Graco Magnum X5 is our pick for the best paint spray guns for cabinets, because it removes the two problems that cause most DIY failures: thinning and inconsistent film build. It sprays cabinet paint unthinned from the bucket, holds adjustable pressure through 3000 PSI, and needs no cup refills across a whole kitchen. If your project is eight to fifteen doors in a lived-in house rather than a full respray, the HomeRight Super Finish Max is the better-value pick and the gentler introduction. If you spray clear coats or refinish furniture, the Fuji Semi-PRO 2 turbine is in a different class on atomization.
Two decisions matter more than any brand. Pick a non-bleed gun if you are working indoors, because dust settling into a wet finish will undo your prep. And spend the time on preparation before you plug anything in, since no sprayer in this roundup will hide an oily surface or an unfilled oak grain.
Related project guides worth browsing: our picks on tool cabinets and garage storage cabinets cover the storage side of the same workshop, and the hardware goes in long before the paint does.
